Audiovox AMP-591A - Mono (Bridged) Output Wiring Diagram

-9-

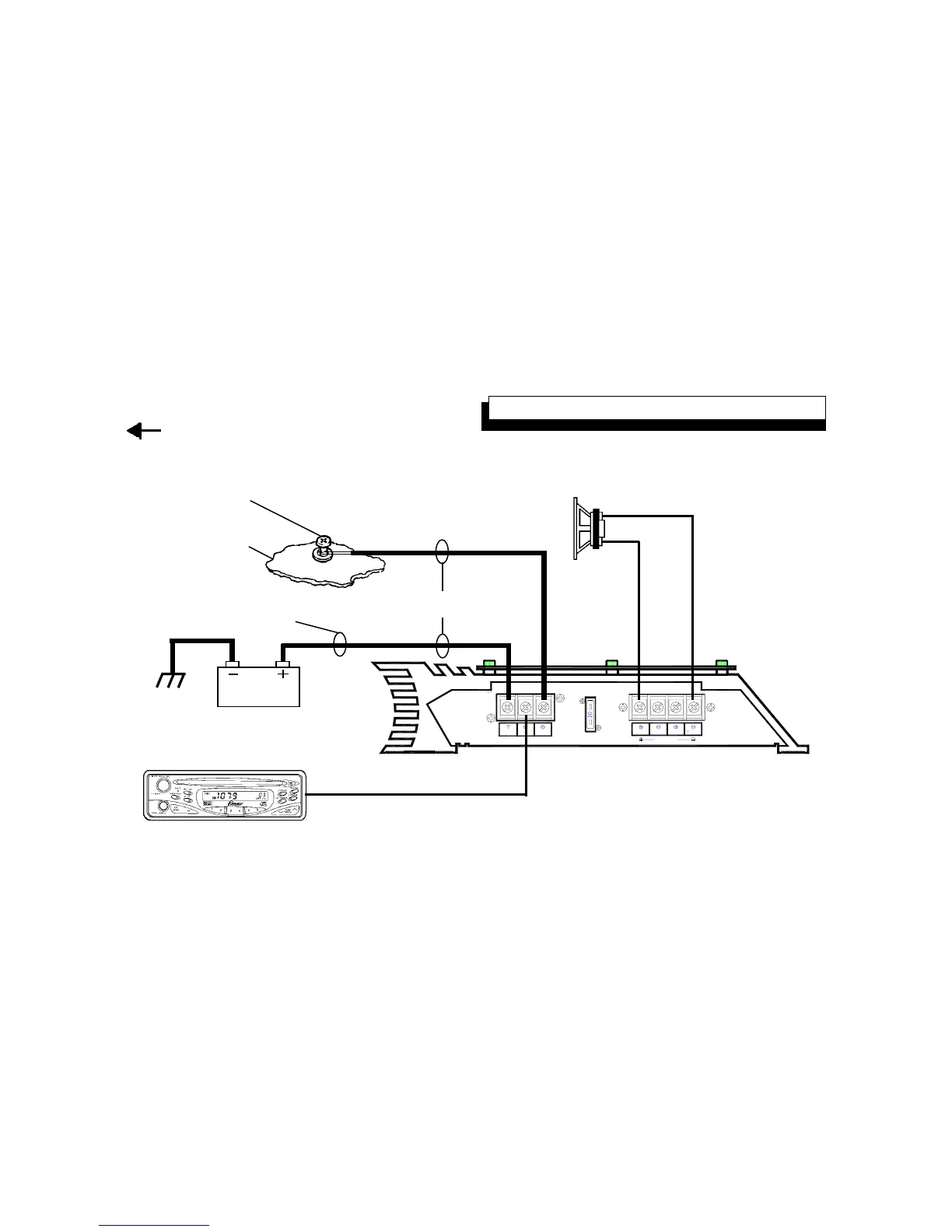

MONO (BRIDGED) OUTPUT WIRING DIAGRAM
USETHISOUTPUTWIRINGWITH
INPUTWIRINGONPAGE8
AUTO-ANTENNA LEAD
USE #16 GAUGE
WIRE (SEE TEXT)
CAR STEREO
CONNECT THIS
WIRE LAST
EXISTING SCREW OR BOLT
CLEAN PAINT, RUST, DIRT OR GREASE
FROM AREA FOR GOOD CONNECTION
GROUNDED METAL
SECTION OF VEHICLE
12 VOLT VEHICLE
BATTERY
CHASSIS
GROUND
BRIDGED
LEFT LEFT RIGHT RIGHT
20A
GND
REM BATT
POWER
FUSE
SPEAKER OUT


-
+
MONO SPEAKER
OR
SUB-WOOFER
4 - 8 OHMS
