AP1 D /
USER’S MANUAL
38

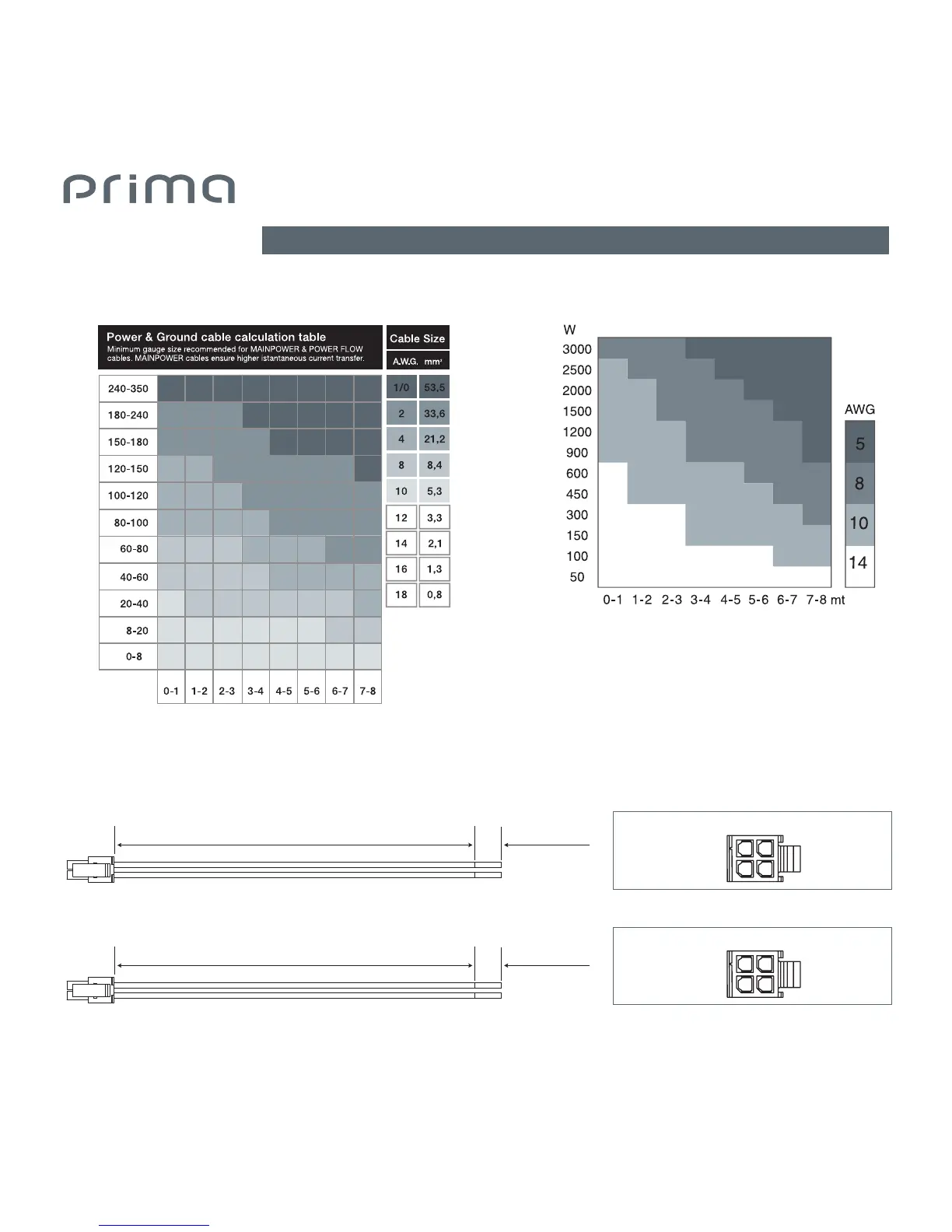

4. CABLE SIZE CALCULATION TABLES
5. CONNECTION CABLE
Connection length
Applied power
Cable diameter
200 mm / 7.87 in.
200 mm / 7.87 in.
10 mm / 0.39 in.
10 mm / 0.39 in.
FRONT VIEW
Blue/White MUTE Blue REM IN
Orange/Black SPK IN- Orange SPK IN+
FRONT VIEW
White/Black OUT 2- White OUT 2+
White/Black OUT 1- White OUT 1+
Speaker cable
Input cable
4/5
*
CurrentDrawI(A)
CableLength(m)
