3. Transport and storage
3.1. Transport
Actuator and actuator
controls
For transport to place of installation, use sturdy packaging.
Hovering load!
Death or serious injury.
→
Do NOT stand below hovering load.
→
Attach lifting accessories for the purpose of lifting by hoist only to housing and
NOT to handwheel.
→
Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting
by hoist to valve and NOT to actuator.
→
Actuators mounted to gearboxes: Attach ropes or hooks for the purpose of lifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
→
Actuators mounted to actuator controls: Attach ropes or hooks for the purpose
of lifting by hoist only to the actuator and NOT to the controls.
→
Respect total weight of combination (actuator, actuator controls, gearbox, valve)
→
Secure load against falling down, sliding or tilting.
→
Perform lift trial at low height to eliminate any potential danger e.g. by tilting.

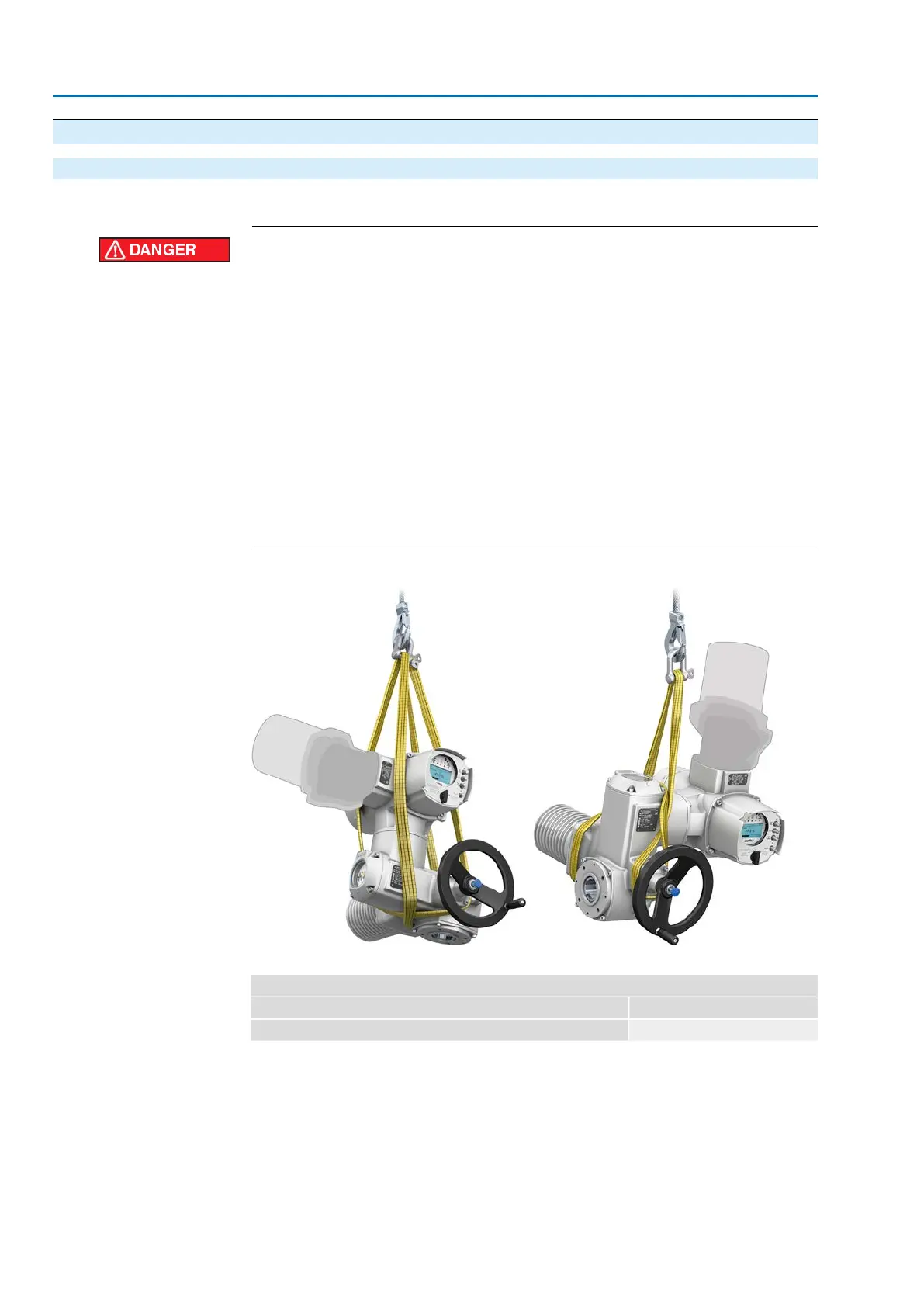

Figure 7: Example: Lifting the actuator
Weights
Table 4:
Weight for AC 01.2 actuator controls
Weight approx. [kg]with electrical connection type:
7AUMA plug/socket connector with screw-type connection
12
SA 07.2 – SA 16.2 / SAR 07.2 – SAR 16.2 Control unit: electronic (MWG)
Transport and storage AC 01.2 Non-Intrusive EtherNet/IP
