AUMA SAR 12 User Manual

41
DSR Torque switch, closing, clockwise rotation
DOL Torque switch, opening, anti-clockwise rotation
WSR Limit switch, closing, clockwise rotation
Limit switch, opening, anti-clockwise rotation
WOL
Th Thermo switch
b1 Push button for stop
b2 Push button for close
b3 Push button for open
C1 Contactor-close
C2 Contactor-open
e4 Thermal overload relay
e5 Control fuse
h1 Indicator lamp-close
Indicator lamp-open
Indicator lamp-trouble
h2
h3
M Motor (3Phase AC) 415V, 3 , 50Hz
a1 Main switch
SH Space heater
b4 Selector switch
N Neutral
E Earth
R,S,T(L1,L2,L3) Phases
e1-e3 Main fuse
A Auto
m Manual
DSR1
DOL1
Torque switch in tandem operation
with DSR/DOL
WSR1
WOL1
Limit switch in tandem operation
with WSR/WOL
}
}

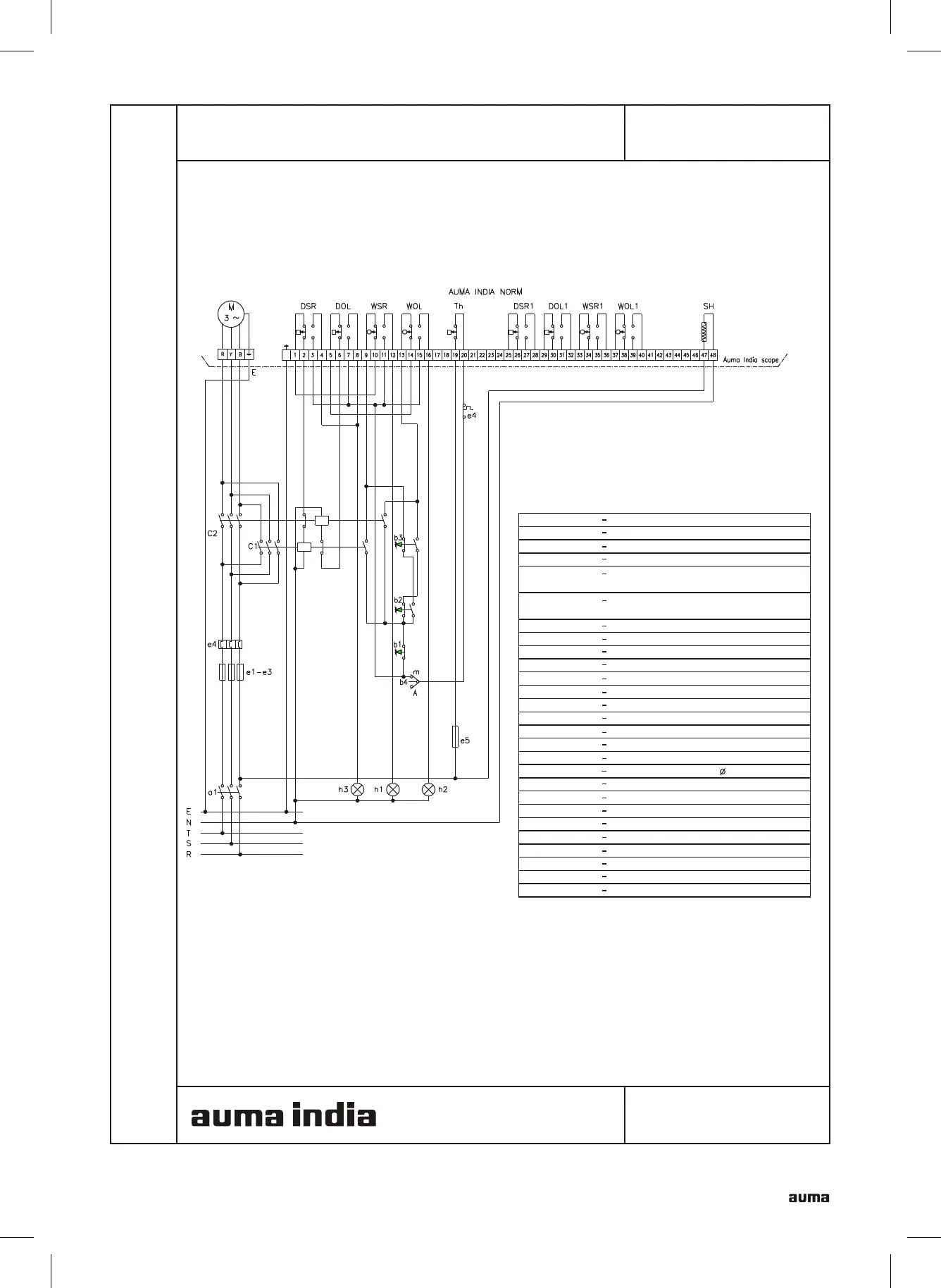

Terminal plan - Norm actuator

AUMA SAR 12 Specifications

General

Housing material	Aluminium
Display	LCD with backlight
Suitable for AUMA Actuator Types	SA, SAR, SQ, SQR
Voltage	24V DC, 230 V AC
Communication interfaces	Profibus DP, Modbus RTU, Ethernet
Power supply	24V DC
Communication	Fieldbus communication
