Electric Rotary Actuators 2SA7
Technical Data
Y070.304/EN Page 11

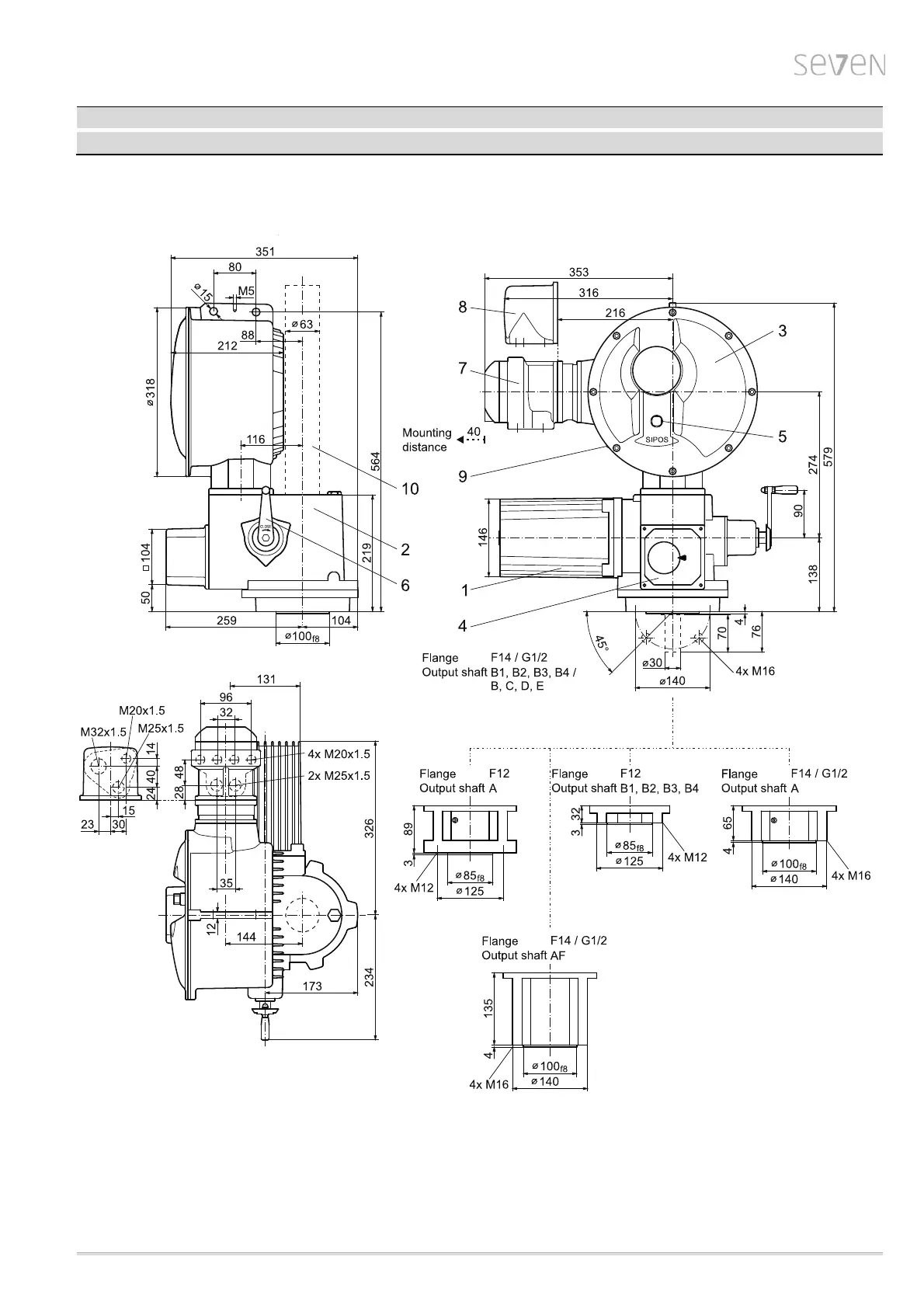

Dimensional drawing 2SA704.-.D, 2SA704.-.E, 2SA734.-.D, 2SA734.-.E, R866853
2SA754.-.D
1 Motor 4 Signaling gear 7 Field bus connection
2 Gear unit 5 Local control station 8 Plug connection
3 Electronics unit 6 Hand crank 9 USB interface (only PROFITRON)
10 Spindle protection tube (for length, see catalog)
