11. Opening the switch
compartment
To be able to carry out the following settings (sections 13.12. to 18.), the
switch compartment must be opened and the indicator disc must be
removed.
These settings are only valid for “clockwise closing”, i.e. driven shaft turns
clockwise to close the valve.
Work on the electrical system or equipment must only be
carried out by a skilled electrician himself or by specially
instructed personnel under the control and supervision of
such an electrician and in accordance with the applicable
electrical engineering rules.
11.1 Removing the cover from the switch compartment
.
Remove 4 bolts and take off the cover at the switch compartment (figure H).
11.2 Pulling off the indicator disc
.
Pulling off the indicator disc (figure J). Open end wrench may be used as
lever.
Part-turn actuators SG 05.1 – SG 12.1 / SGR 05.1 – SGR 12.1
Operation instructions AUMA NORM

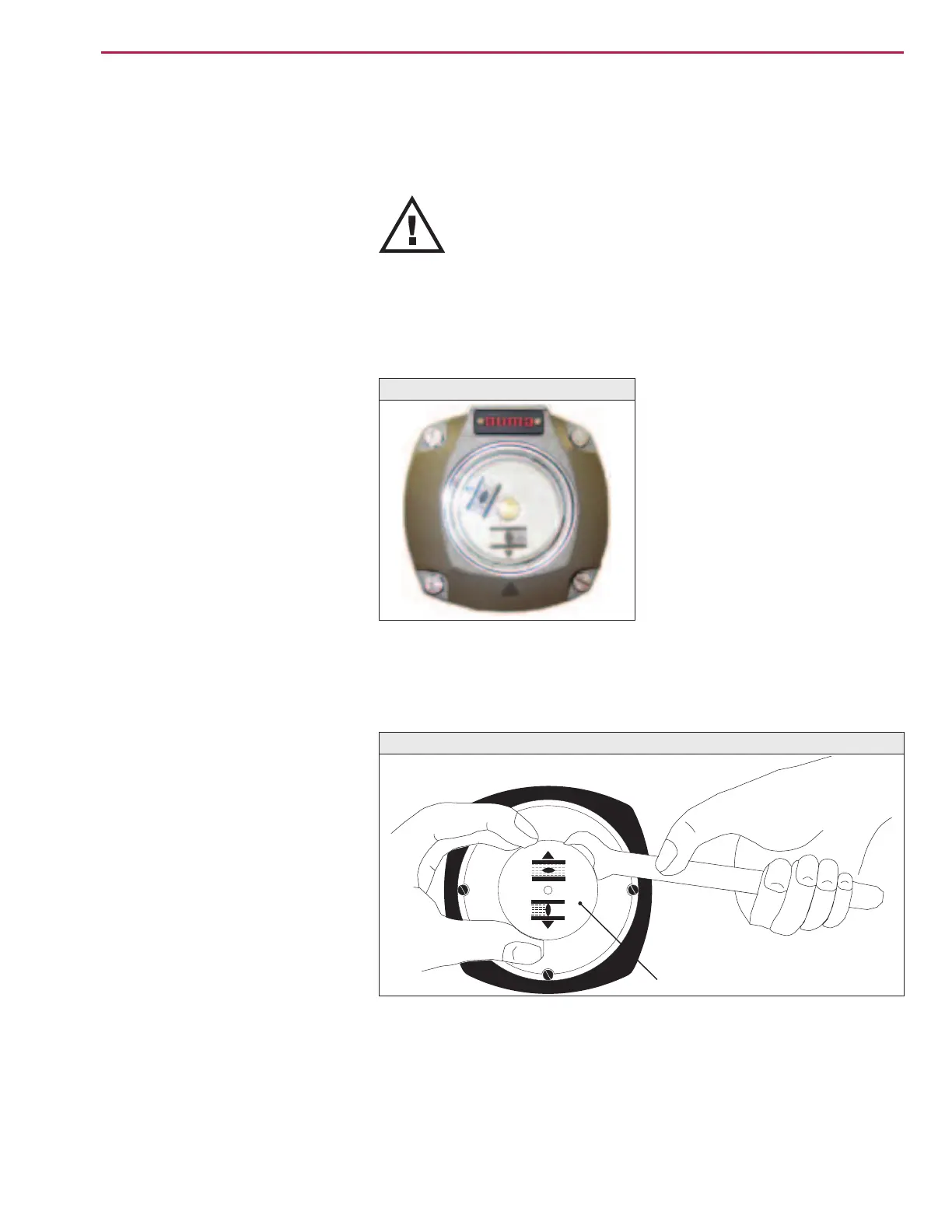

Figure H: Cover with indicator glass
DSR
WDR
Figure J: Pulling off the indicator disc
Indicator disc
