Set selector switch to position Remote control (REMOTE).
➥
Now, the actuator can be remote-controlled via fieldbus.
Information
For actuators equipped with a positioner, it is possible to change over between OPEN
- CLOSE control (Remote OPEN-CLOSE) and setpoint control (Remote SET-
POINT). For further information, please refer to the Manual (Operation and setting).
6.3. Menu navigation via push buttons (for settings and indications)
Menu navigation for display and setting is made via the push buttons [1 – 4] of the
local controls.
Set the selector switch [5] to position 0 (OFF) when navigating through the menu.
The bottom row of the display [6] serves as navigation support and explains which
push buttons [1 – 4] are used for menu navigation.

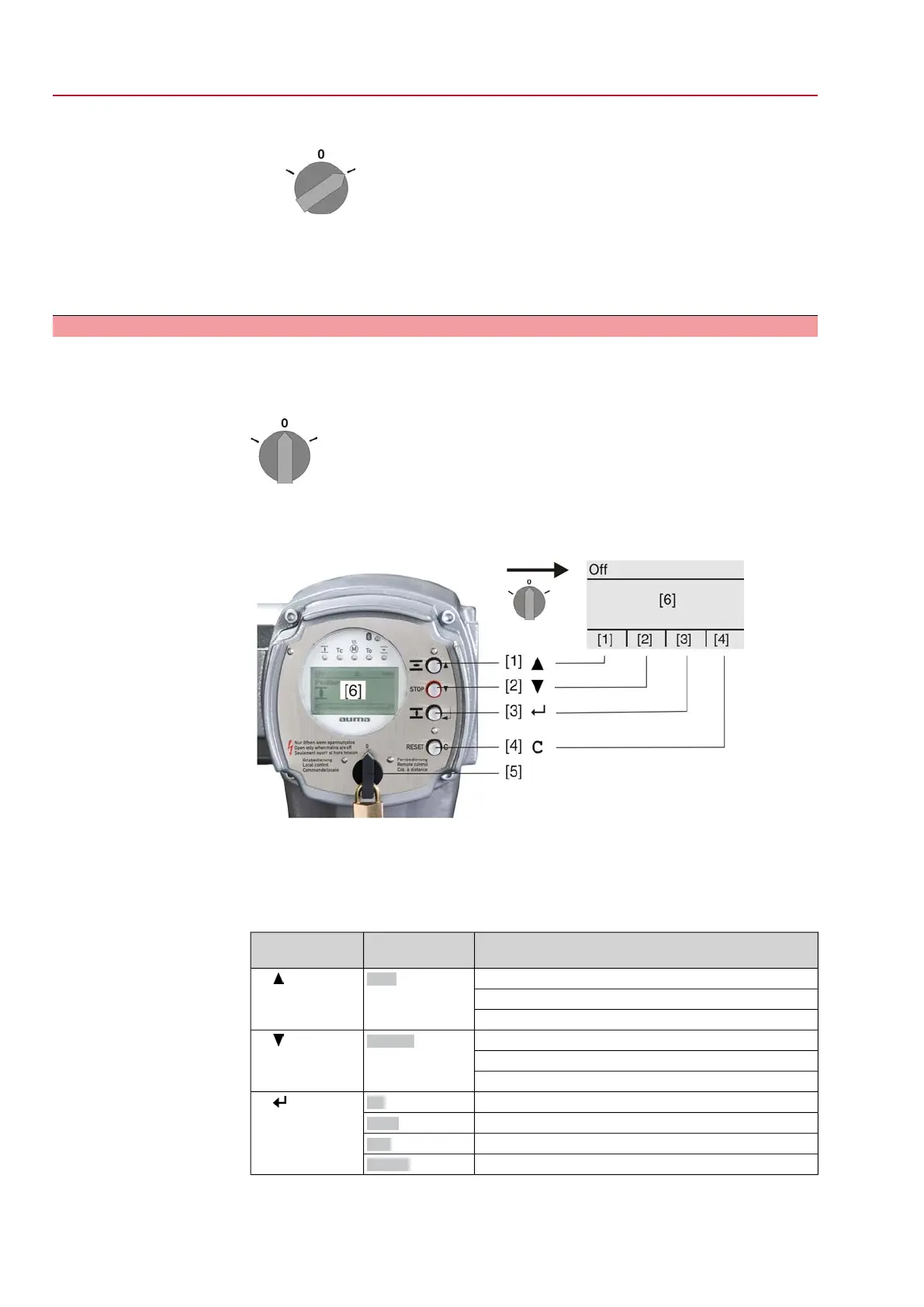

Figure 27:
[1–4] Push buttons or navigation support
[5] Selector switch
[6] Display
Table 17: Important push button functions for menu navigation
FunctionsNavigation sup-
port on display
Push buttons
Change screen/selection
Up ▲
[1]
Change values
Enter figures from 0 to 9
Change screen/selection
Down ▼
[2]
Change values
Enter figures from 0 to 9
Confirm selection
Ok
[3]
Save
Save
Enter <Edit> menu
Edit
Display more details
Details
32
SQEx 05.2 – SQEx 14.2 / SQREx 05.2 – SQREx 14.2 Control unit: electronic (MWG)
Operation ACExC 01.2 Non-Intrusive Modbus TCP/IP
