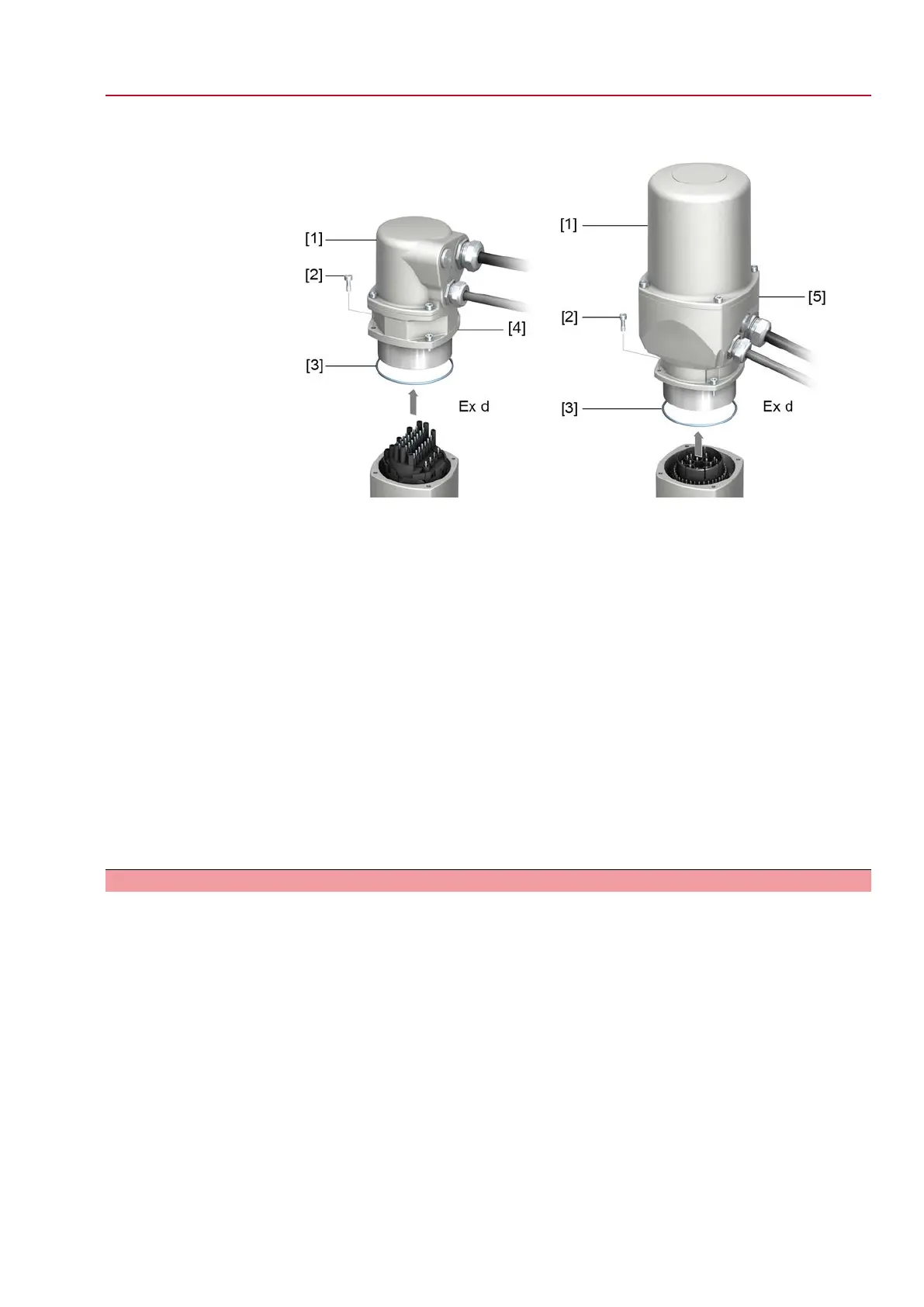

Figure 71: KP/KPH and KES electrical connection
[1] Cover
[2] Screws for housing
[3] O-ring
[4] Plug-in frame (KP/KPH)
[5] Connection frame (KES)
Removing the plug:
1. Loosen the screws [2].
2. Remove electrical connection.
➥
Cover [1] and plug-in type frame [4] or connection frame [5] remain together.
3. Seal open plug/socket connection, e.g. using AUMA protection cover and
parking frame.
Fitting the plug/socket
connector:
4. Clean sealing faces of plug/socket connector and housing.
5. Preserve joint surfaces with an acid-free corrosion protection agent.
6. Check whether O-ring [3] is in good condition, replace if damaged.
7. Apply a thin film of non-acidic grease (e.g. petroleum jelly) to the O-ring and
insert it correctly.
8. Replace electrical connection and fasten screws evenly crosswise.
12.3. Maintenance
Maintenance intervals
After 3 years at the latest for Ex certified products.
Lubrication
●
In the factory, the gear housing is filled with grease.
●
Grease change is performed during maintenance
- Generally after 4 to 6 years for modulating duty.
- Generally after 6 to 8 years if operated frequently (open-close duty).
- Generally after 10 to 12 years if operated rarely (open-close duty).
●
We recommend exchanging the seals when changing the grease.
●
No additional lubrication of the gear housing is required during operation.
Notes regarding the
maintenance
●
Perform visual inspection of actuator. Ensure that no outside damage or changes
are visible.
●
Electrical connection cables must be placed properly and in perfect condition.
●
Thoroughly touch up any possible damage to painting to prevent corrosion.
Original paint in small quantities can be supplied by AUMA.
