Characteristics
Independent of power supply
Used as running indication: Indicator disc (with arrow ) rotates during actu-
ator operation and continuously indicates the valve position
(For clockwise closing version, the arrow rotates in clockwise direction for
operation in direction CLOSE)
Indicates that end positions (OPEN/CLOSED) have been reached
Arrow points to symbol (OPEN) or (CLOSED)
Self-adjusting when increasing the swing angle
7.5. Mechanical position indication via indicator mark

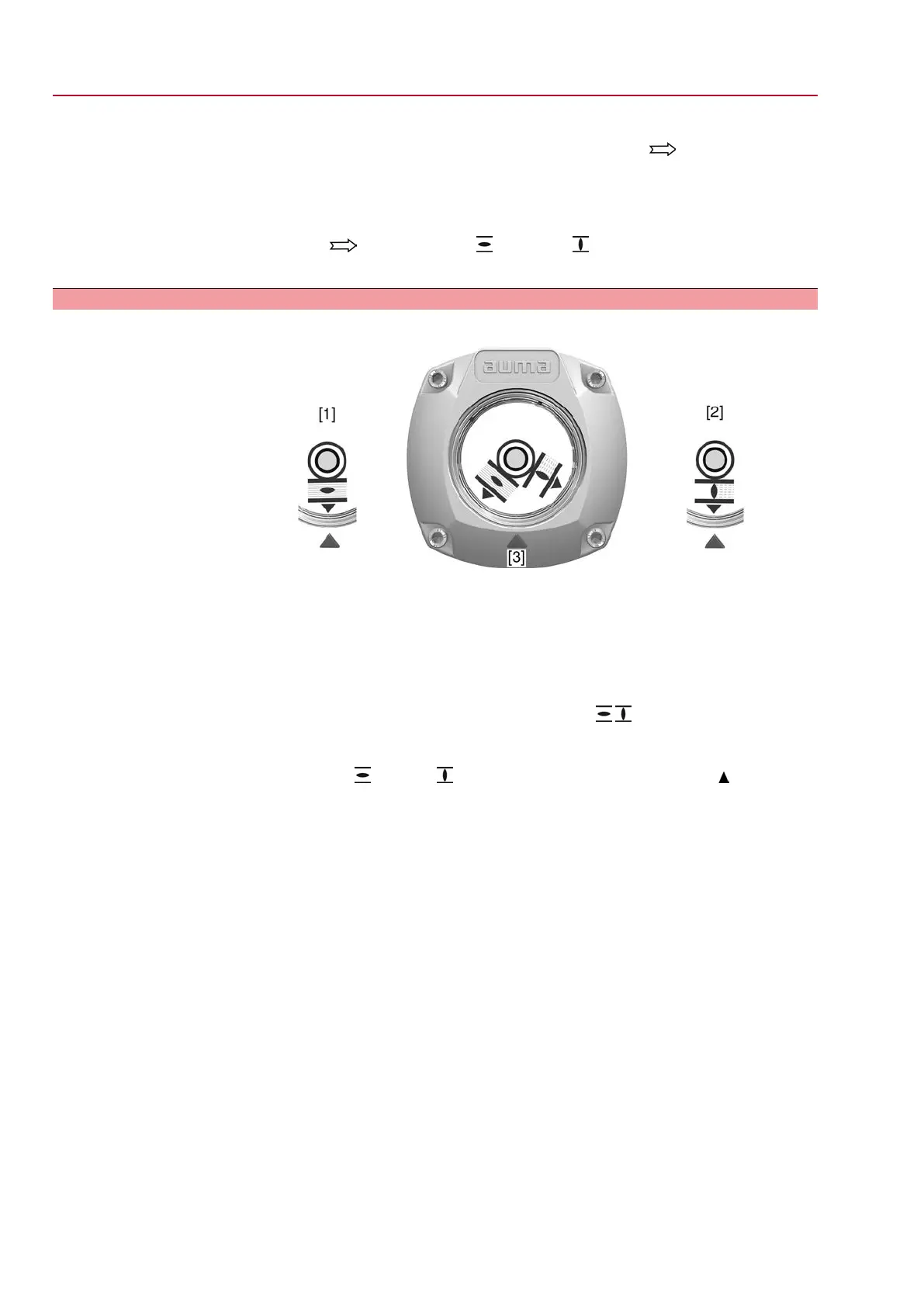

Figure 55: Mechanical position indicator
[1] End position OPEN reached
[2] End position CLOSED reached
[3] Indicator mark at cover
Characteristics
Independent of power supply
Used as running indication: Indicator disc rotates during actuator operation and
continuously indicates the valve position
(For clockwise closing version, the symbols / rotate in counterclockwise
direction for operation in direction CLOSE)
Indicates that end positions (OPEN/CLOSED) have been reached
(Symbols (OPEN)/ (CLOSED) point to the indicator mark at cover)
44
SQEx 05.2 SQEx 14.2 / SQREx 05.2 SQREx 14.2 Control unit: electronic (MWG)
Indications ACExC 01.2 Non-Intrusive Modbus TCP/IP
