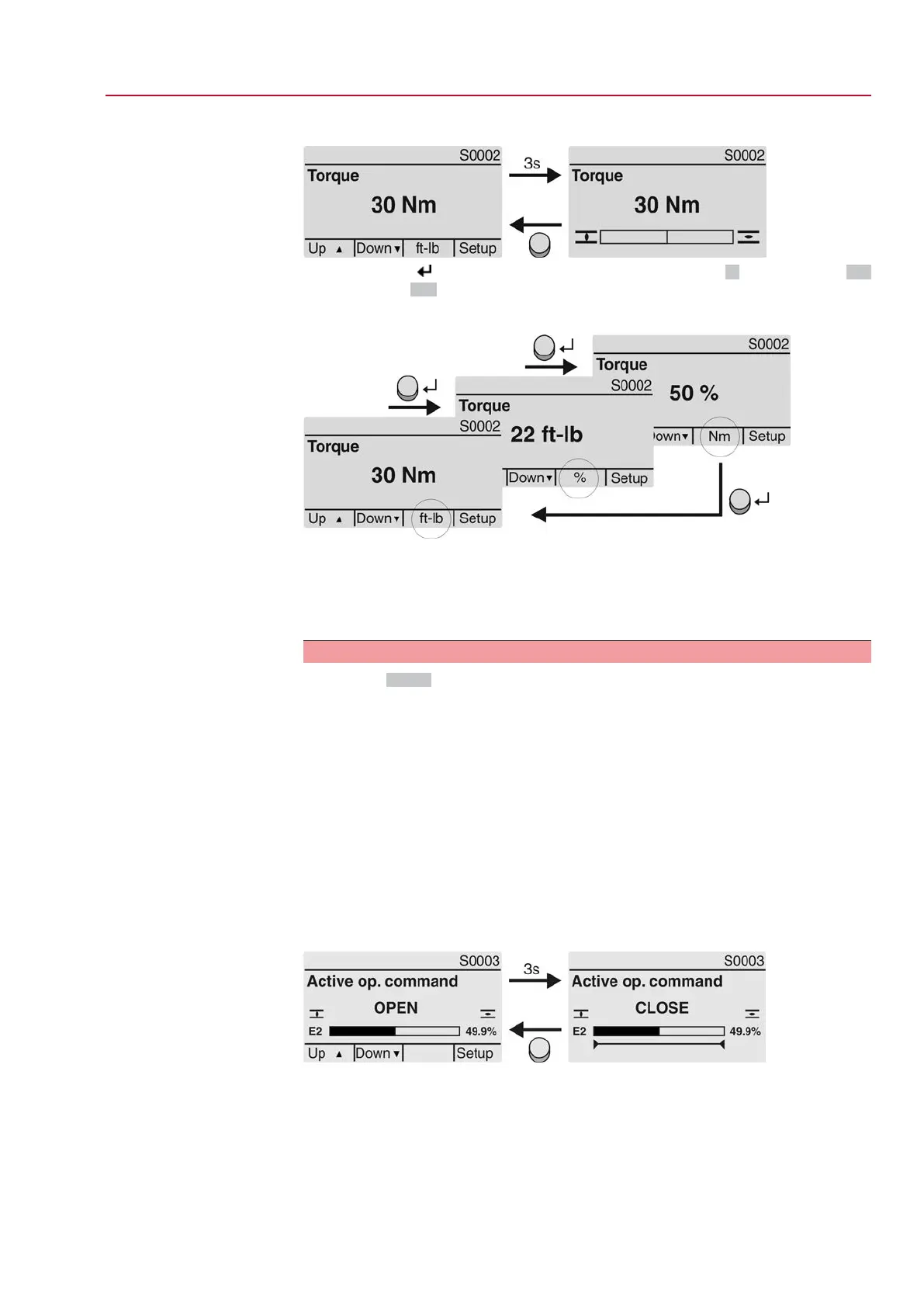

Figure 41: Torque
Select unit
The push button allows to select the unit displayed (percent %, Newton metre Nm
or "foot-pound" ft-lb
Figure 42: Units of torque
Display in percent
100 % indication equals the max. torque indicated on the name plate of the actuator.
Example: SA 07.6 with 20 60 Nm.
100 % corresponds to 60 Nm of nominal torque.
50 % corresponds to 30 Nm of nominal torque.
Operation commands (S0003)
The display S0003 indicates:
active operation commands, like e.g.: Operation in direction CLOSE or in direc-
tion OPEN
the actual value E2 as bar graph indication and as value between 0 and 100
%.
for setpoint control (positioner): setpoint E1
for stepping mode or for intermediate positions with operation profile: pivot
points and operation behaviour of pivot points
The navigation support (bottom row) is faded out after approx. 3 seconds and the
axis/axes for pivot point display are shown.
OPEN - CLOSE control
Active operation commands (OPEN, CLOSE, ...) are shown above the bar graph
display. The figure below shows the operation command in direction CLOSE.
Figure 43: Display for OPEN - CLOSE control
E2 Actual position value
Setpoint control
If the positioner is enabled and activated, the bar graph indication for E1 (position
setpoint) is displayed.
The direction of the operation command is displayed by an arrow above the bar
graph indication.The figure below shows the operation command in direction CLOSE.
