Lay cables being susceptible to interference or sources of interference at the
highest possible distance from each other.
The interference immunity of signal and bus cables increases if the cables are
laid close to the earth potential.
If possible, avoid laying long cables and make sure that they are installed in
areas being subject to low interference.
Avoid long parallel paths with cables being either susceptible to interference or
interference sources.
For the connection of remote position transmitters, screened cables must be
used.
Type of current, mains
voltage and mains fre-
quency
Type of current, mains voltage and mains frequency must match the data on the
motor name plate.

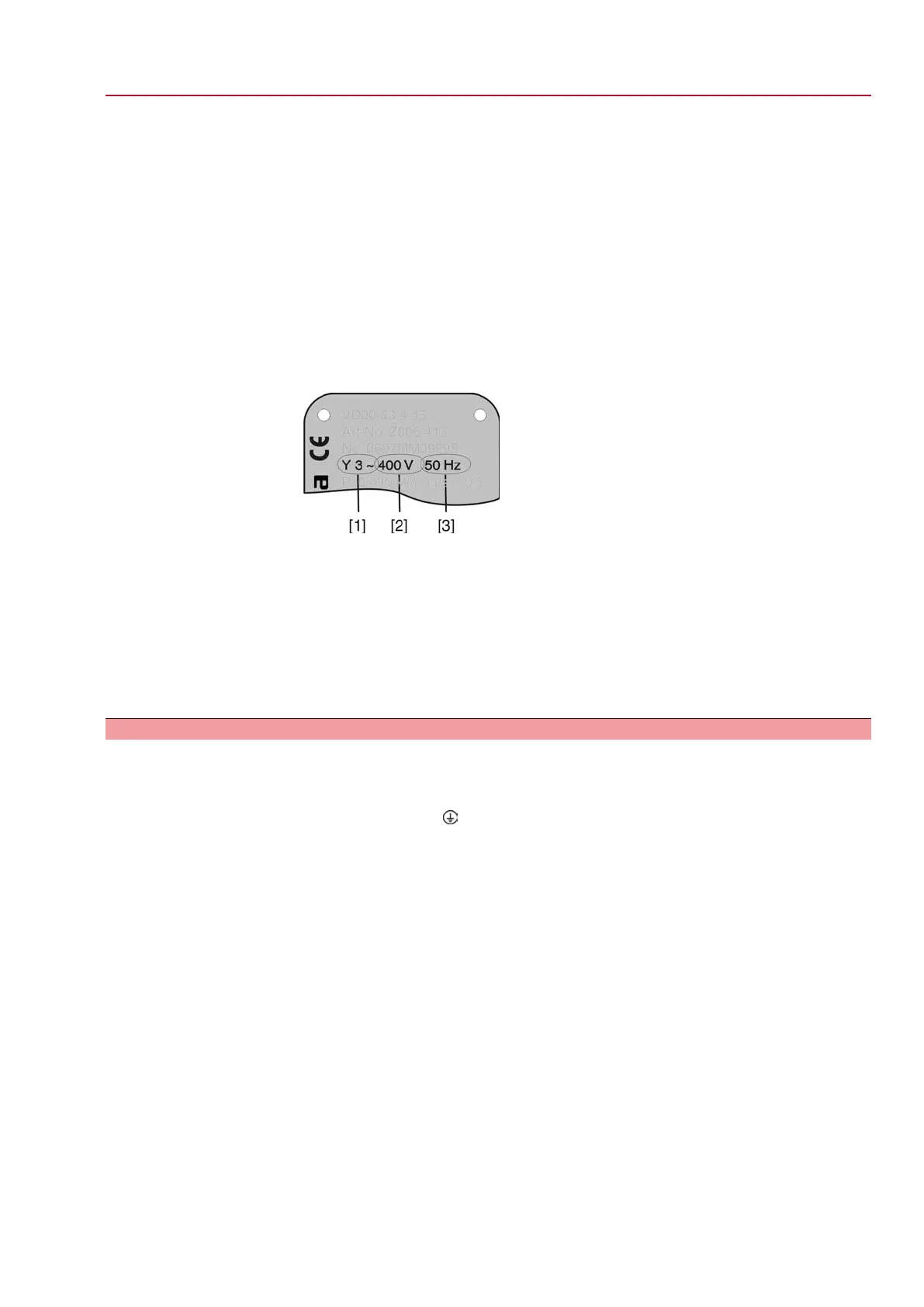

Figure 9: Motor name plate (example)
[1] Type of current
[2] Mains voltage
[3] Mains frequency (for 3-ph and 1-ph AC motors)
Connecting cables
For device insulation, appropriate (voltage-proof) cables must be used. Specify
cables for the highest occurring rated voltage.
Use connecting cable with appropriate minimum rated temperature.
For connecting cables exposed to UV radiation (outdoor installation), use UV
resistant cables.
5.2. Connection with AUMA plug/socket connector
Cross sections AUMA plug/socket connector:
Power terminals (U1, V1, W1, U2, V2, W2): max. 6 mm² flexible/10 mm² solid
PE connection : max. 6 mm² flexible/10 mm² solid
Control contacts (1 to 50): max. 2.5 mm²
17
SQ 05.2 SQ 14.2/SQR 05.2 SQR 14.2 Control unit: electronic (MWG)
AC 01.2 Non-Intrusive Electrical connection
