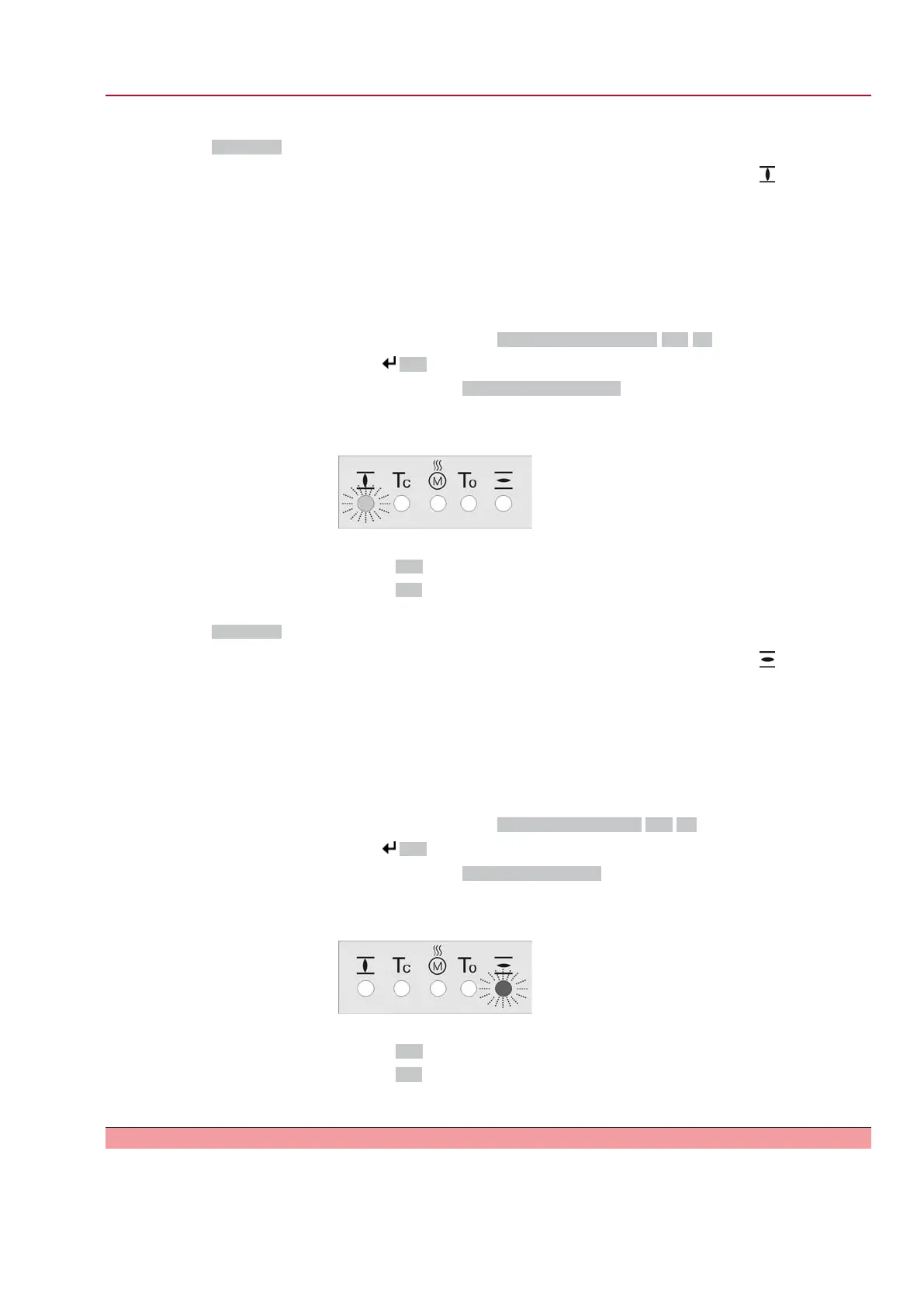

Set end position
CLOSED CMD0009
9. Re-set end position CLOSED:
9.1 For large strokes: Set selector switch in position Local control (LOCAL)
and operate actuator in motor operation via push button (CLOSED) in
direction of the end position.
Information: Stop actuator before reaching end of travel (press push
button STOP) to avoid damage.
9.2 Engage manual operation.
9.3 Turn handwheel until valve is closed.
9.4 Set selector switch to position 0 (OFF).
➥
Display indicates: Set end pos.CLOSED? Yes No
10.
Press Yes to accept new end position setting.
➥
Display indicates: End pos. CLOSED set!
➥
The left LED is illuminated (standard version) and thus indicates that the end
position CLOSED setting is complete.
11. Make selection:
→
Edit → back to step 9: Set end position CLOSED "once again"
→
Esc → back to step 4; either set end position OPEN or exit the menu.
Set end position OPEN
CMD0010
12. Re-set end position OPEN:
12.1 For large strokes: Set selector switch in position Local control (LOCAL)
and operate actuator in motor operation via push button (OPEN) in
direction of the end position.
Information: Stop actuator before reaching end of travel (press push
button STOP) to avoid damage.
12.2 Engage manual operation.
12.3 Turn handwheel until valve is open.
12.4 Set selector switch to position 0 (OFF).
➥
Display indicates: Set end pos. OPEN? Yes No
13.
Press Yes to accept new end position setting.
➥
Display indicates: End pos. OPEN set!
➥
The right LED is illuminated (standard version) and thus indicates that the end
position setting is complete.
14. Make selection:
→
Edit → back to step 9: Set end position OPEN "once again"
→
Esc → back to step 4; either set end position CLOSED or exit the menu.
Information If an end position cannot be set: Check the type of control unit in actuator.
9.5. Test run
Perform test run only once all settings previously described have been performed.
45
SQ 05.2 – SQ 14.2/SQR 05.2 – SQR 14.2 Control unit: electronic (MWG)
AC 01.2 Non-Intrusive Commissioning (basic settings)
