8.1.3. Speed range for analogue input: set
This setting is only effective if one of the speed sources is either set to Analogue
input or Fieldbus.
Customer settings M0041
Speed functions M1699
Speed rem. min. M1936
Speed rem. max M1937
Default values:
Speed rem. min. = 6 rpm (≙ 0/4 mA)
Speed rem. max = 60 rpm (≙ 20 mA)
Setting values:
Speed rem. min. = 6 ... 240 rpm (revolutions/minute)
Speed rem. max = 6 ... 240 rpm (revolutions/minute)
The adjustable speed range is indicated on the actuator name plate.
8.1.4. Speed reduction before reaching end positions OPEN/CLOSED (soft stop in end positions)
Prior to reaching the end position, the speed can be linearly reduced within a
programmable range.

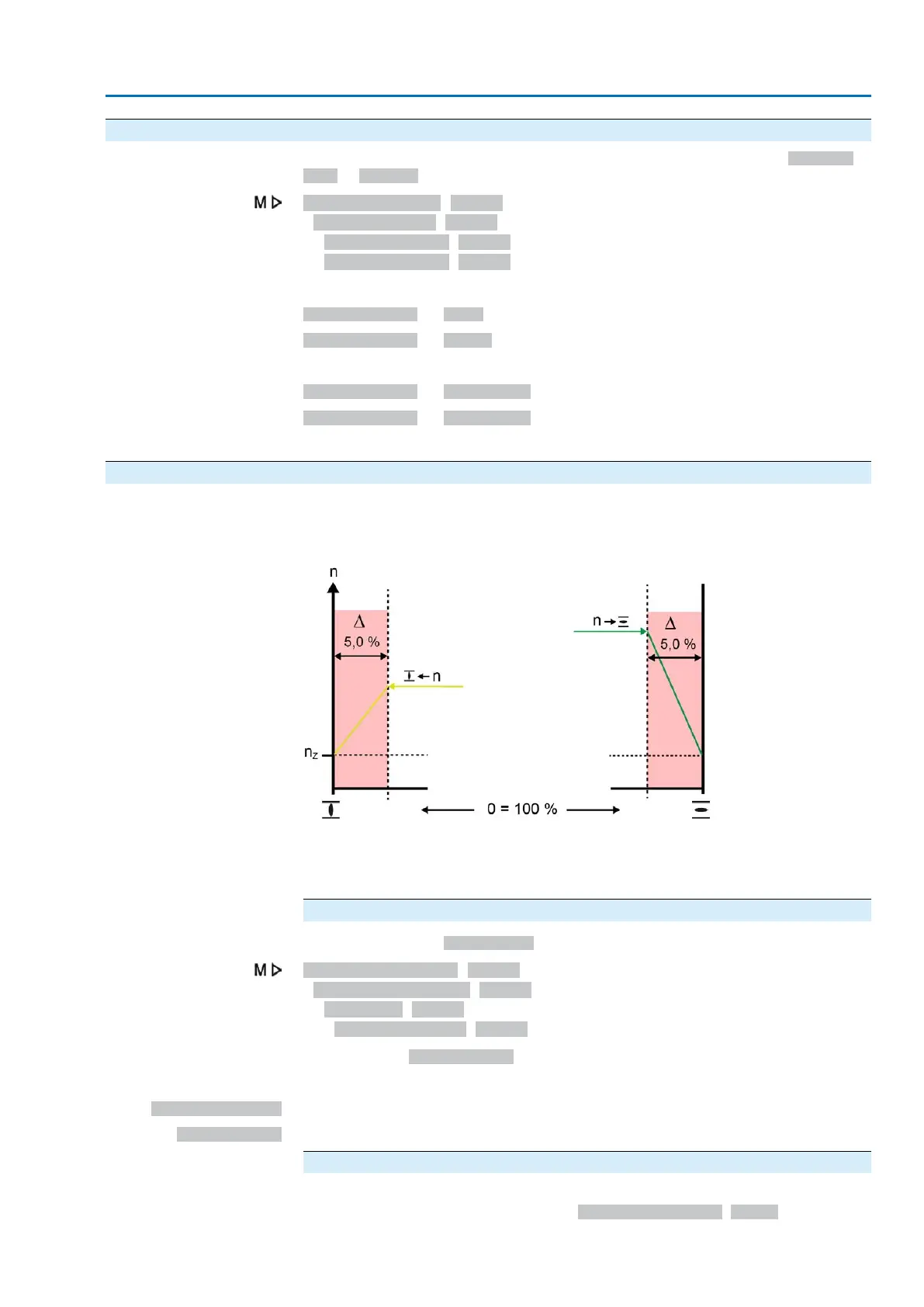

Figure 36: Example of speed reduction in end positions
n Current speed in direction OPEN/CLOSE
n
Z
Target speed for end positions
Δ
Speed reduction range before end positions
Activate speed reduction before reaching end positions
Required user level: Specialist (4) or higher.
Device configuration M0053
Application functions M0178
Activation M0212
Speed red. range M1903
Default value: Function active
Setting values:
Function not active
<Speed reduction range> function deactivated.
Function active
<Speed reduction range> function activated.
Adjust speed reduction range before reaching end position
Within this range before reaching the end position, the current speed will be linearly
reduced to the target speed (parameter Target speed for red. M1905).
47
Actuator controls
ACV 01.2/ACVExC 01.2 Application functions
