Autel MaxiBAS BT608 - MaxiBAS BT608 Tester Details

4
2.1 MaxiBAS BT608 Tester
2.1.1 Function Description

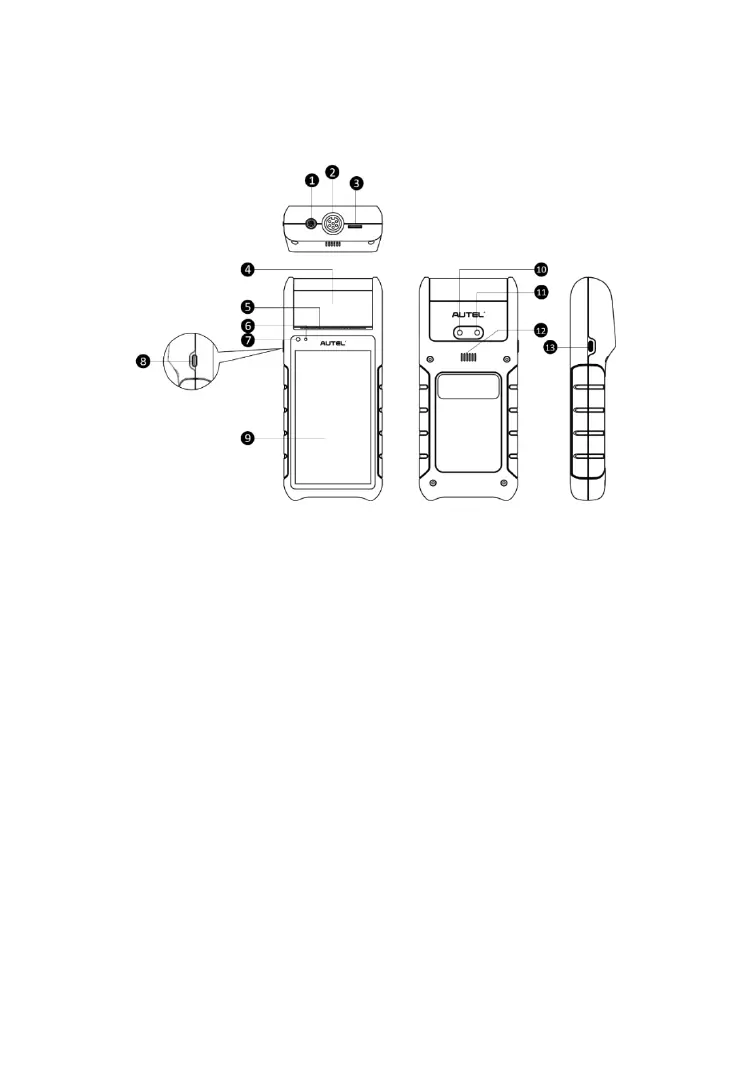

Figure 2-1 MaxiBAS BT608 Front/Back/Side View
1. Multimeter Cable Port
2. Battery Clamp Cable Port
3. Micro SD Slot
4. Thermal Printer
5. Paper Exit
6. Power LED — refer to Table 2-1 Power LED Description for details
7. Ambient Light Sensor — detects ambient brightness
8. Lock/Power Button — press and hold to turn on and off/restart the
BT608, or tap the power button to lock the screen
9. 5.5-inch Touchscreen
10. Camera
11. Camera Flash
12. Speaker
13. USB Port
