34

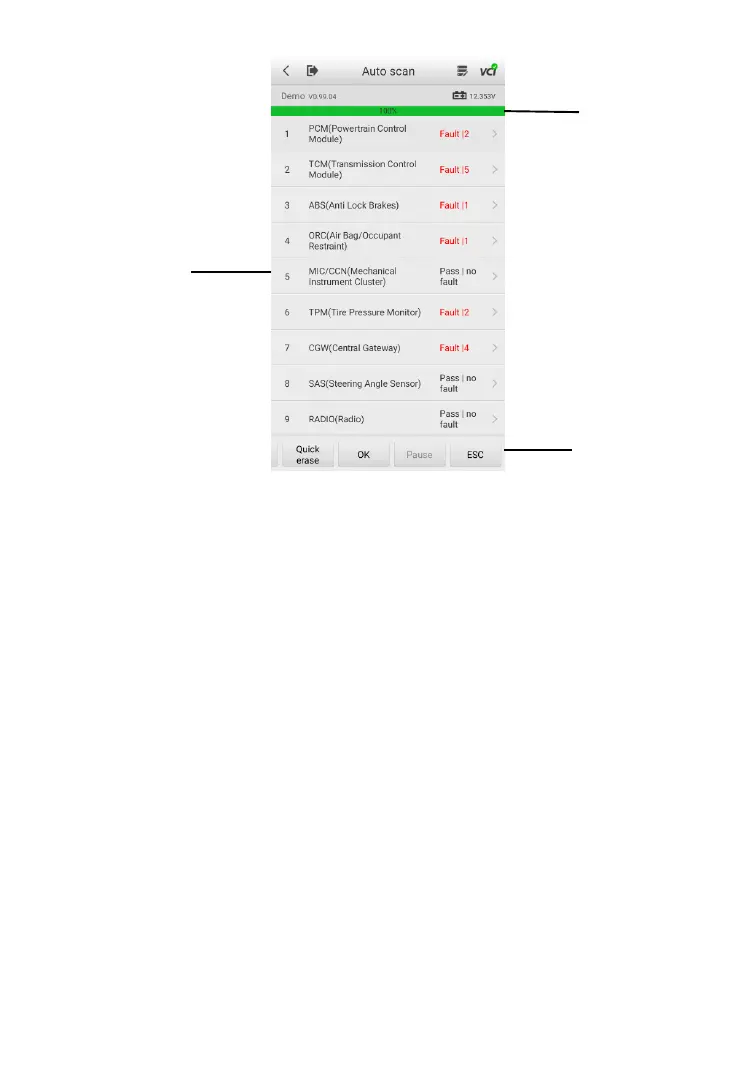

Figure 8-1 Sample Auto Scan Operation Screen
1. Progress Percentage — indicates the test progress
2. Main Section
3. Function Buttons
Main Section
Column 1 — displays the sequence numbers.
Column 2 — displays the scanned systems.
Column 3 — displays the diagnostic indicators describing test results.
The indicators are defined as follows:
Fault | #: Fault indicates detection of fault code(s); # indicates the quantity of
detected faults.
Pass | no fault: indicates the system has completed the scanning process with
no fault detected.
Column 4 — to perform further diagnosis or testing on a specific system item,
tap the arrow button to the right of that item to display the Function menu screen.
