16 © 2000 Directed Electronics, Inc. Vista, CA

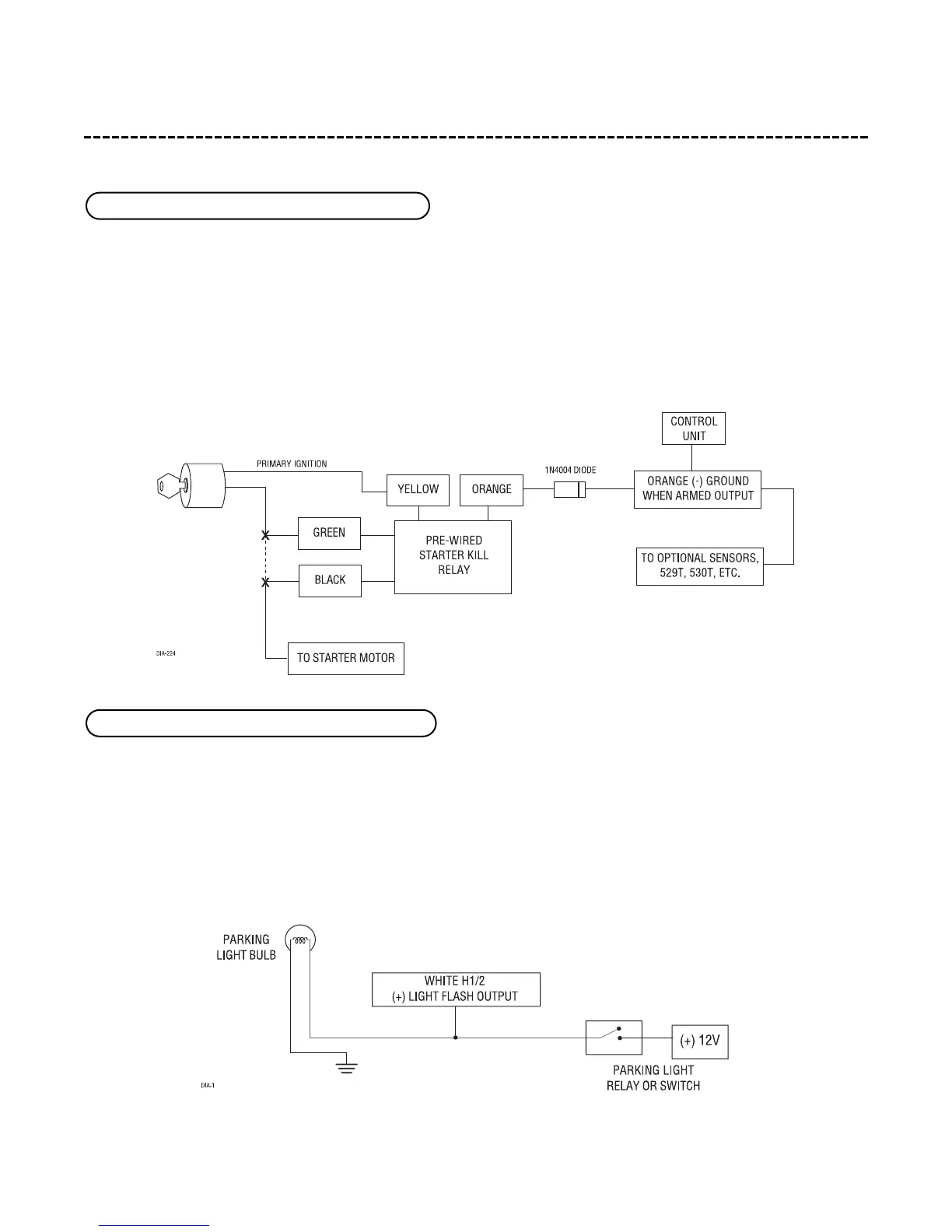

primary harness (H1) wire connection guide
This wire supplies a (-)500 mA ground as long as the system is armed. This output ceases as soon as the system
is disarmed. The orange wire is pre-wired to control the DEI
®
8618 Starter Kill Relay.
IMPORTANT! Never interrupt any wire other than the starter wire.
NOTE: If connecting the orange wire to control another module, such as a DEI
®
529T or 530T
window controller, a 1 amp diode (type 1N4004) will be required. Insert the diode as shown below.
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper under
the sliding door is moved to the opposite position (see Internal Programming Jumper section of this guide), this
wire supplies a (-) 200 mA output. This is suitable for driving (-) light control wires in Toyota, Lexus, BMW, some
Mitsubishi, some Mazda, and other model cars.
(+) Positive Light Flash Output
H1/2 WHITE (+/-) selectable light flash output
H1/1 ORANGE (-) ground-when-armed output
