32 © 2000 Directed Electronics, Inc. Vista, CA

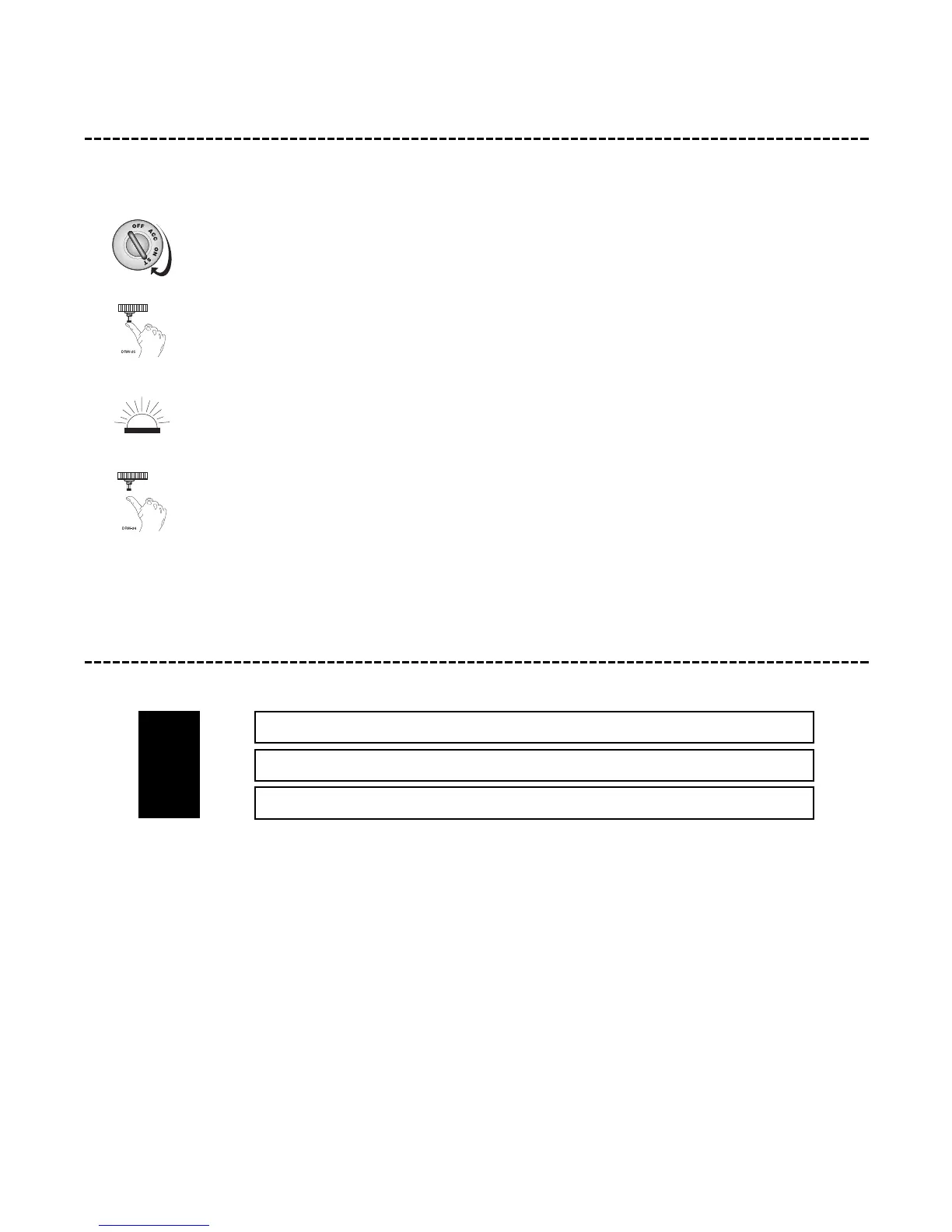

tach learning
To learn the tach signal:
1. Start the vehicle with the key.
2. Within 5 seconds, press and HOLD the Valet®/Program switch.
3. The LED will light constant when the tach signal is learned.
4. Release the Valet®/Program switch.
door lock harness (H4) wire connection guide
______
______
______
This system can control two common power door lock types without any additional parts! With certain vehicles,
or if an actuator is to be installed, either a 451M Door Lock Relay Satellite or two relays will be required.
IMPORTANT! If you mistake a Type C direct-wired system for a Type A positive-pulse system, the
module will be damaged!
This system can control two common power door lock types without any additional parts! With certain vehicles,
or if an actuator is to be installed, either a 451M Door Lock Relay Satellite or two relays will be required.
BLUE (-) UNLOCK, (+) LOCK OUTPUT
EMPTY UNLESS USING 451M
GREEN (-) LOCK, (+) UNLOCK OUTPUT
H4/A
H4/B
H4/C
