Auto Meter BVA-460 - Starting Test Process and Results; Completing and Analyzing Test; Cylinder Count and Engine Type Input; Starting System Result Interpretation

17
STARTING TEST cont.

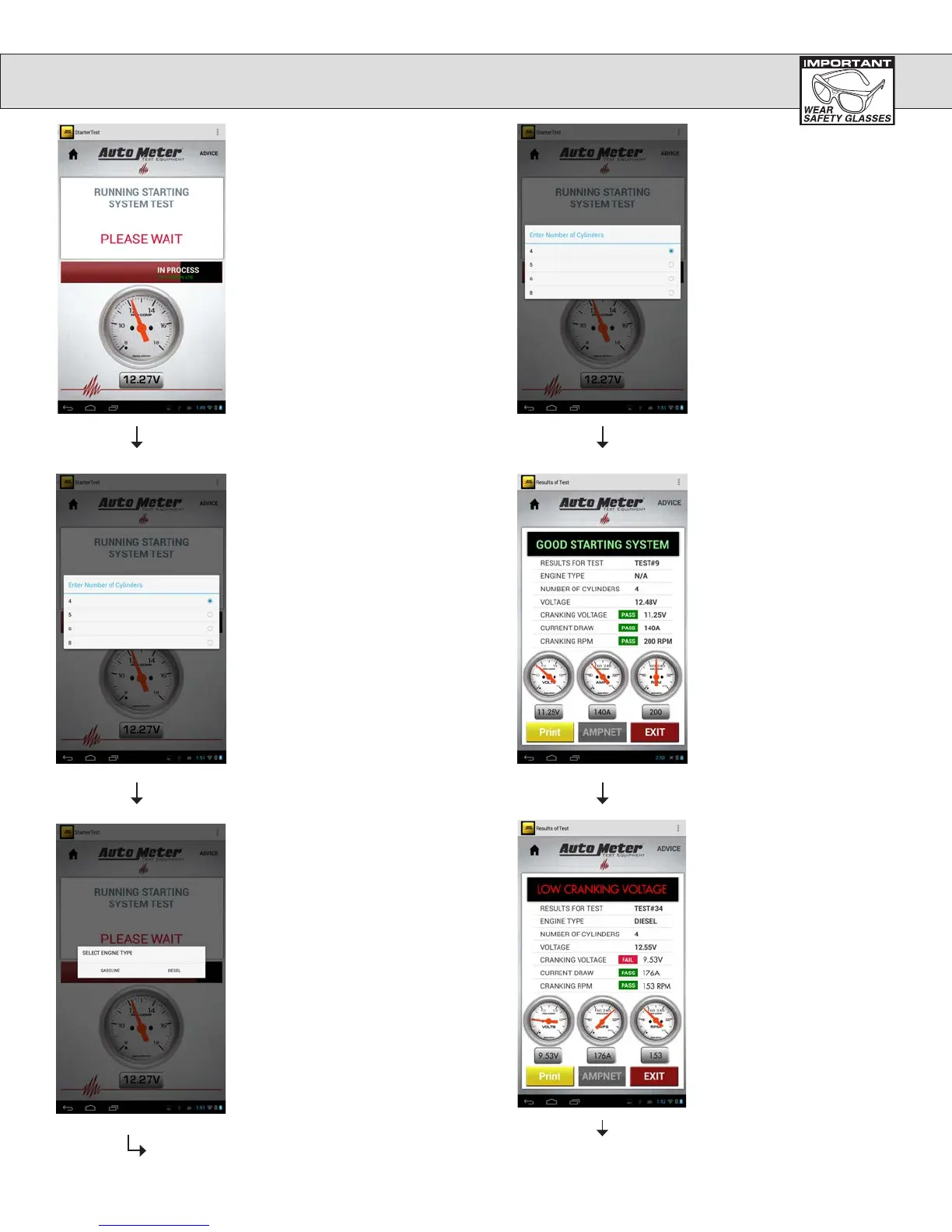

If the engine compression strokes
were detected, The BVA-460 will
ask how many cylinders the
engine has so it can calculate the
engine’s cranking speed.
The BVA-460 will nish the
starting test.
Note: If Large starting current is
detected it could be the result of
a heavier load found in a diesel
engine. This screen allows an
engine type to be selected.
If a diesel engine was
tested enter how many
cylinders the engine has.
The BVA-460 will nish the
starter test.
The Starting System passed.
This screen will appear if
the battery voltage during
cranking was to low.
