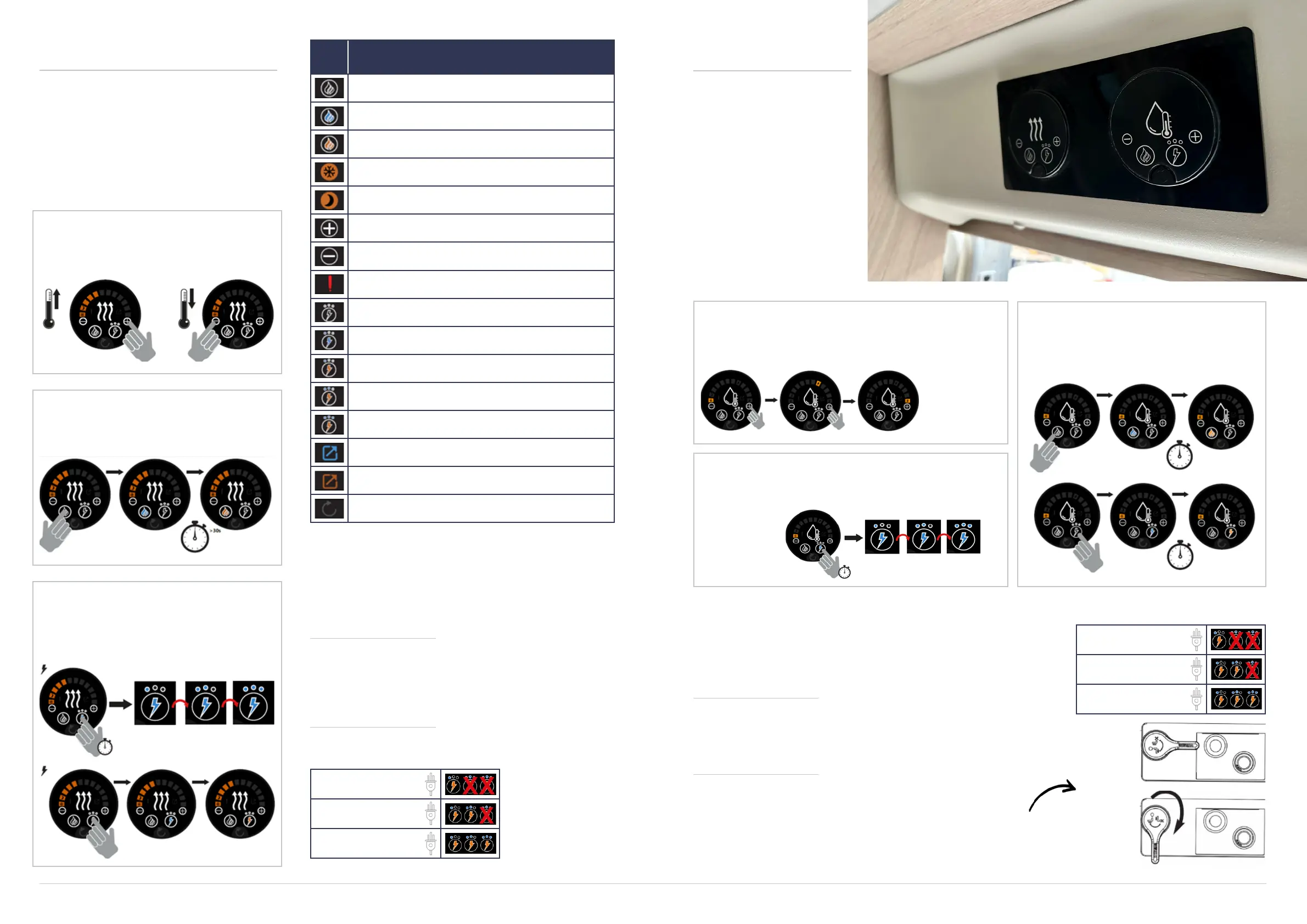

Whale air space heater
The Whale air space heater is designer to
provide heating to your campervan. The
heating system includes both an LPG burner
and electric elements. You can use it with
either LPG, 230v electricity or both.
DESCRIPTION
Gas heating button
Gas heating standby indicator
Gas heating on
Frost protection mode (approx. 5°C)
Night time mode (approx. 16°C)
Increase temperature button
Decrease temperature button
Lockout indicator
Electric heating button
Electric heating standby indicator
0.75kw electric
1.50kw electric
3.00kw electric
External control from alternative source available*
External control from alternative source active*
Reset button
*Not available on all models.
Activate gas power (option 1)
Pressing the flame button will activate the gas
power.
Select electric setting (option 2)
Pressing the electrical symbol will activate the
230v power. Pressing the button repeatedly
will change the available power setting.
Electric power management
When selecting a high electric setting on the space heater,
the control panel may automatically step-down the water
heater to a lower electric setting, or turn it o if at risk of
exceeding 16A. The last heater setting has mains priority.
Turning the heater o
Press the relevant power button until no heat source is
illuminated.
6A | 0.75kw | 230v AC
10A | 1.5kw | 230v AC
16A | 3kw | 230v AC
Usable electric settings
Selecting the temperature
Pressing the + or - button will increase or
decrease the temperature on the display.
Whale expanse water
heater
The Whale expanse water
heater is designed to provide
hot water to your campervan.
The heating system includes
both an LPG burner and
electric heating elements, and
you can use it with either LPG,
230v electricity, or both.
Change power setting
Pressing the button repeatedly will change the available
power setting.
Activate gas or electric power
Pressing the flame button will activate the
gas power. Pressing the electrical symbol will
activate the 230v power.
Selecting the temperature
Pressing the + or - button will increase or decrease the
temperature on the display.
1.6A | 0.4kw | 230v AC
1.3A | 0.75kw | 230v AC
6.5A | 1.5kw | 230v AC
Usable electric settingsElectric power management
When selecting a high electric setting on the water heater, the control
panel may automatically step-down the other space heater to a lower
electric setting, or turn it o if at risk of exceeding 16A. The last heater
setting has mains priority.
Turning the heater o
Press the relevant power button until no heat source is illuminated.
Frost protection/drain valve
Check the location of the water heater drain valve inside your vehicle
and open it to fully drain the vehicle water system if it is not going to be
used for more than three days, or if there is a risk of frost.
CLOSED
POSITION
OPEN
POSITION
All Expedition
models have a
heating classification
of grade 3. This
means that your
vehicle can maintain
an average internal
temperature of at
least 20°C when the
outside temperature
is minus 15°C.
