55
EC400 POWER CONTROL SYSTEM
1 Introduction
This section of the handbook will guide
you through the operation of the electrical
system.
Further technical details are contained in
section 3 or in the supporting technical
manual available from www.sargentltd.co.uk
For the safe operation of all electrical
equipment within your Leisure Vehicle it is
important that you read and fully understand
these instructions. If you are unsure of any
point please contact your dealer / distributor
for advice before use.
The system has a number of key
components that you will need to be familiar
with before attempting to use the system,
these are:

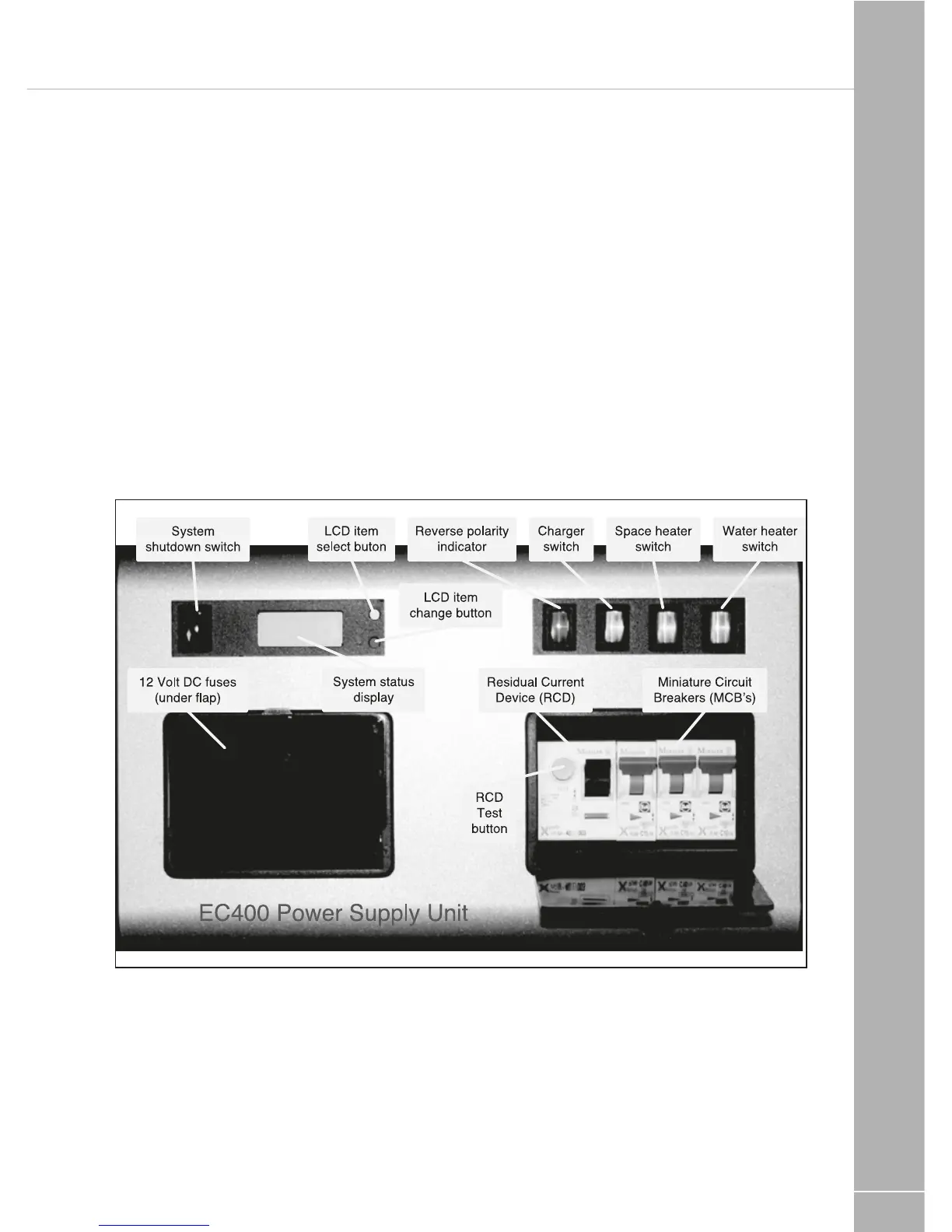

•ThePowerSupplyUnit(PSU)-acombined
mains consumer unit and 12V controller
located in the bed box.
•TheControlPanel(CP)-aremotelylocated
user control panel used to turn circuits on
and off and to display battery and water
tank information. This panel uses simple
straightforward controls and reliable data
communication to the PSU.
