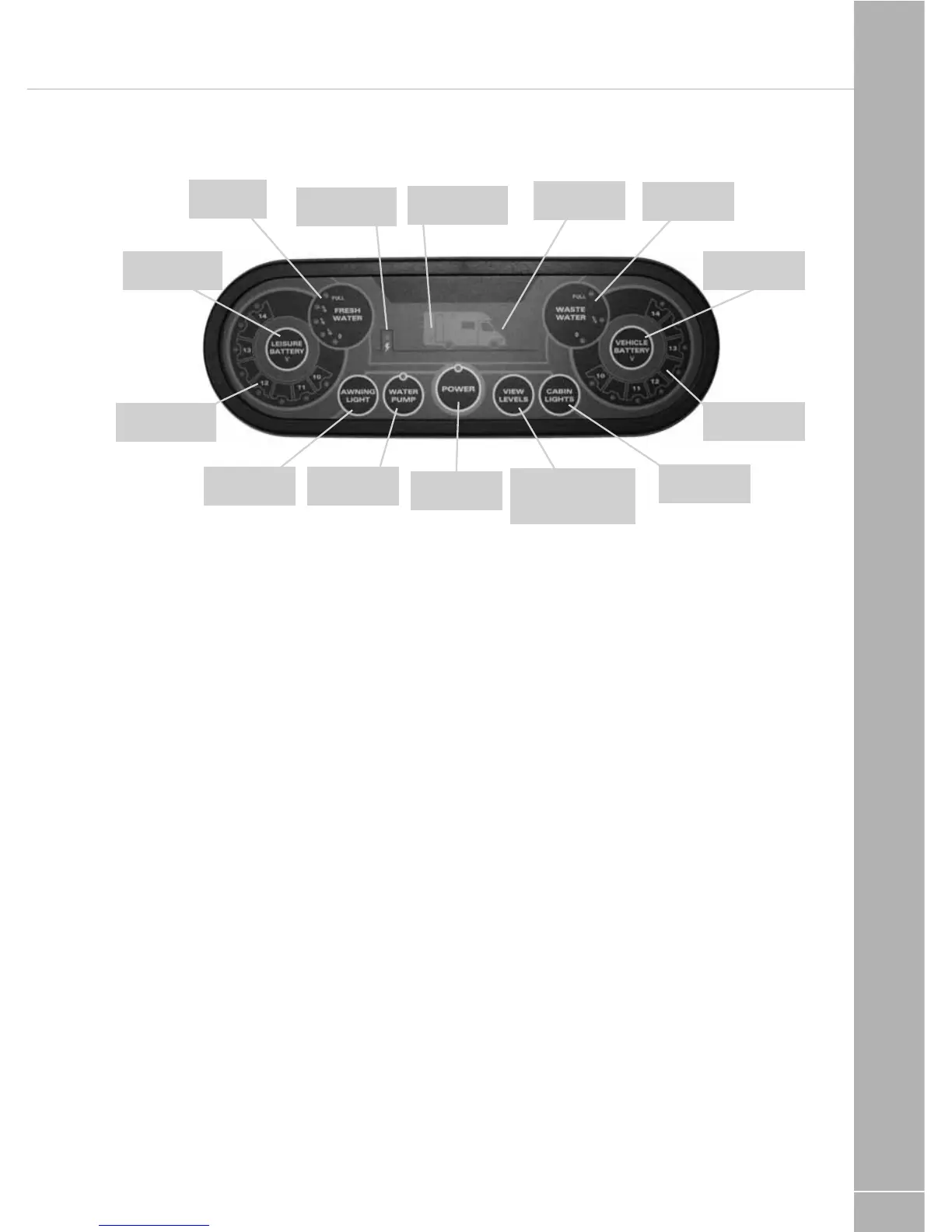

2.4 Control Panel - Component Layout
2.5 Control Panel Operation
 •PowerButton.Pressthepowerbutton
to turn the leisure power on. Press the
button again to turn the power off. The
adjacent LED will illuminate when the
power is on, and also the voltage of the
selected battery will be displayed on the
voltage gauge.
 •PumpButton.Withthepoweron,press
the pump button to turn the water
pump on. Press the button again to turn
the pump off. The adjacent LED will
illuminate when the pump is on, and
also the level of the water tank will be
displayed on the water gauge.
 •ViewLevels.Todisplaythebattery
voltage levels and the water tank levels
on the control panel gauges, press the
levels button. The display will remain
illuminated for 10 seconds.
 •BatterySelect.Bydefault,theleisure
battery is selected as the power source
if no mains supply is present, or as
the battery to be charged when the
mains supply is available. To change the
selected battery, press the battery select
button. The selected battery is indicated
by an LED situated in the centre of the
leisure and vehicle battery gauges.
 •LightsButton.Withthepoweron,
press the lights button to turn the main
lighting supply on or off.
 •AwningLightButton.Withthepower
on, press the awning light button to turn
the awning light on or off.
2.6 Operation while driving
The EC400 system is designed to
shutdown parts of the system while the
engine is running. This is to meet Electro
Magnetic Compatibility (EMC) regulations
and to ensure the safe operation of the
motorhome.
Please ensure the system shutdown
switch on the PSU is in the on (button
in) position before driving (see 2.2). This
will ensure the electronic system is active
and will therefore be able to control the
charging process, supply the refrigerator
and monitor other system circuits.
If / when fitted, designated 12v sockets,
en-route reading lights and en-route
heating will remain operational while the
engine is running.
EC462
Leisure battery
selection button
Leisure battery
selected on
Vehicle battery
selected LED
Waste water
level gauge
Vehicle battery
selection button
Vehicle battery
voltage gauge
Internal on/off
button
View levels button,
press to show
battery & tank levels
Power on/off
button
Water pump
on/off button
Awning Light
Leisure battery
voltage gauge
Fresh water
level gauge
Mains supply &
charger on
