Base Ai (Pin 17) Base Ai2 (Pin 19)
GND (Pin 18) GND (Pin 20)
Signal Min Typ Max
ADC Resolution - 11-bit -
V
AVMAX
Voltage mode absolute max inputs -0.3 - 26V
V
AV
Voltage mode inputs 0V - 10V
Voltage mode input resistance ~100kΩ
I
AIMAX
Current mode max input - - 30mA
I
AI
Current mode inputs 4mA - 20mA
Current mode input resistance 265Ω 320Ω
Signal Min Typ Max
Voltage Output 24V
I
OB
Current (Base outputs) 0 - 625 mA
I
OT
Current (Tool outputs) 0 - 100 mA
These general purpose digital outputs can source up to 625 mA of current. They
can be used to drive equipment like electromagnetic relays directly or for
communication with other PLC systems.

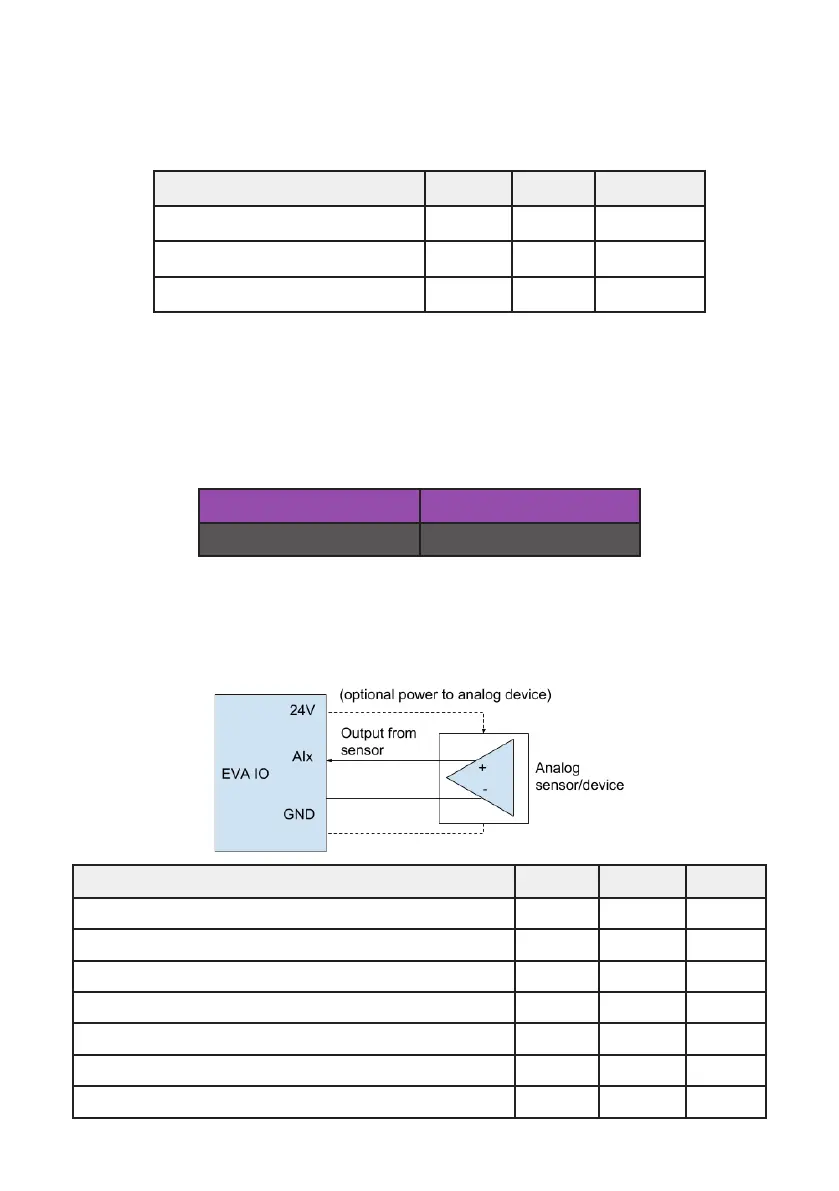

D) Analog Inputs
There are two non-differential, single ended analog inputs on the base I/O, able
to measure a signal in current (4 - 20 mA) or voltage mode (0 - 10 V). The mode
can be specified through Choreograph, or via API calls.
These inputs could, for example, be used to monitor the output of an analog
position sensor, detecting if an object ready for picking. The robot and the
sensor should share a common ground, to ensure all signals are referenced to
the same level.
