Installation Instructions Axess
®
Pro 1505 13
Fig 9.1
Fig 9.2
10. Coding Transmitter
The Axess
®
Pro 1505 can store 511 transmitters in its memory.
Each transmitter can be allocated an alpha-numeric ID label up to
eleven characters in length and each button can be assigned to
one of several control functions. The settings for a transmitter are

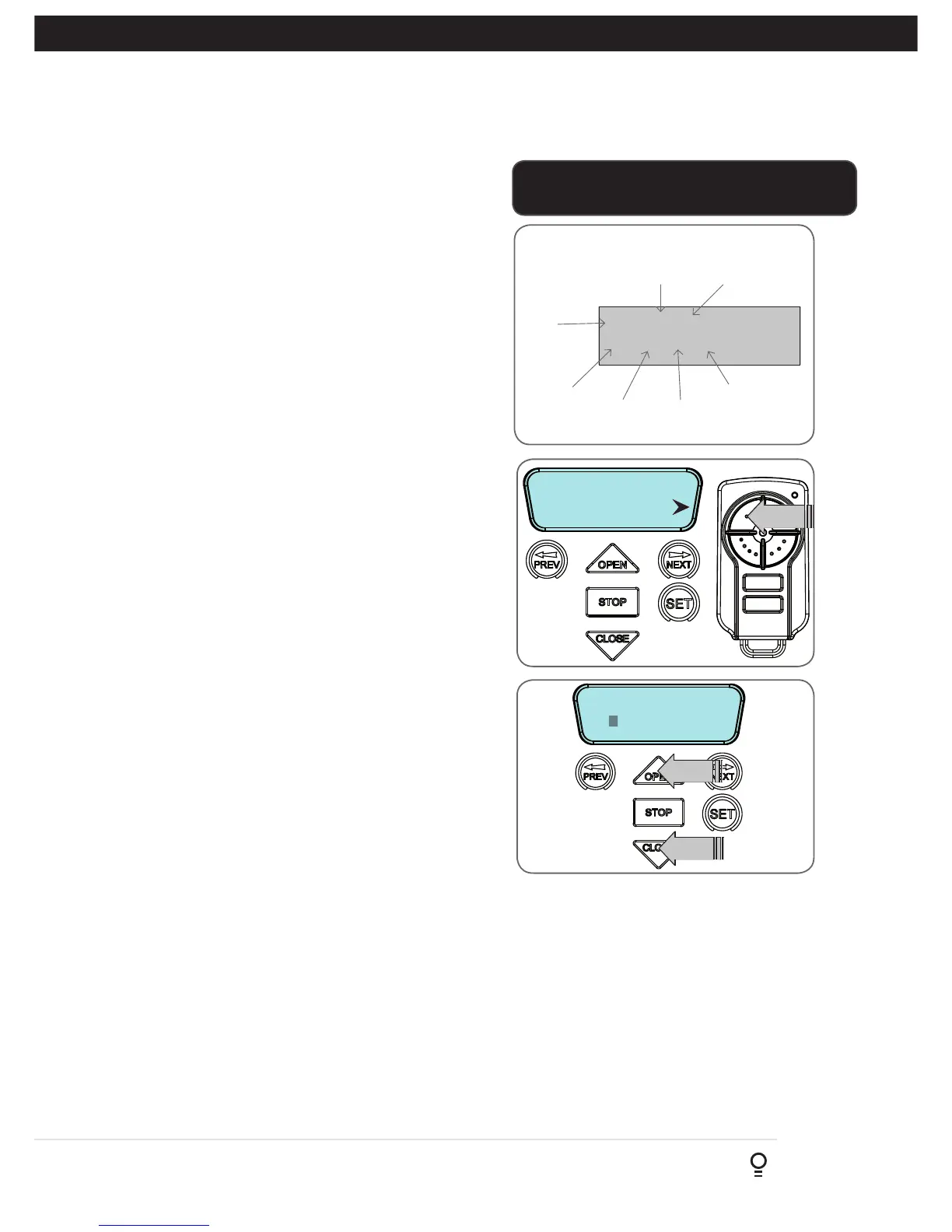

represented in Fig. 10.1. It shows the transmitter’s store number,
ID label or serial number and the functions assigned to each of
the four buttons. To toggle between ID/SN display, press UP/
DOWN with the cursor on the ID/SN indicator. The procedures
below code, delete, replace, edit and copy transmitter records.
10.1 Coding Transmitter Button
Navigating To Menu 1 “Code Transmitter”
a. Press NEXT to navigate to Menu 1).
b. Press SET to enter the code set procedure.
Storing Transmitter Code
a. The logic console will prompt to press one of the transmitter’s
buttons.
b. Press the transmitter button you wish to use to operate the
opener (e.g. button 1) (Fig. 10.2) .
c. Press the same transmitter button again as prompted by the
display.
10.2 Selecting Function Of The Button
The logic console will now show the transmitter’s record, with a
cursor on the field for the button being coded (Fig. 10.3). Use
OPEN/CLOSE to select the function for the button.
Available functions:
OSC (Open/Stop/Close) PED (Pedestrian access)
SWP (Swipe) CLS (Close)
OPN (Open) STP (Stop)
LGT (Courtesy Light) VAC (Vacation Mode)
AUX (Auxiliary ) OFF (No action)
NOTE: OSC can change to OS and CLS (Close) function, but is
not available in the case where PE Beams are not installed.
Press SET to save the settings or STOP to abort without saving.
10.3 Returning To Main Screen
Press STOP to return to the MAIN SCREEN and test the transmitter.
NOTE: To edit the other settings, refer to transmitter edit
procedure in Appendix F.
