Axess
®
Pro 1505 Installation Instructions
08
07
12
06
05
13
11
10
09
Terminal Block ( From Left To Right )
V2 Console:
AUX OUT Receiver’s Auxiliary Output
V+ Accessory Supply
SB3 Third Safety Beam Input
SB2 Second Safety Beam Input
SB1 First Safety Beam Input
0V Common For Safety Beams
0V Common Terminal For Control Inputs
FIRE N/O , N/C Input Terminal
GPI N/O Input Terminal
OPN N/O , N/C Input Terminal
STP N/O , N/C Input Terminal
CLS N/O Input Terminal
Programmer PG-3 Input
Console Previous Button
Liquid Crystal Display
Console Next Button
Console Open Button
Console Stop Button
Console Set Button
Console Close Button
RJ45 Connector
05
06
07
08
09
10
11
12
13
3. Operating Controls
14
14

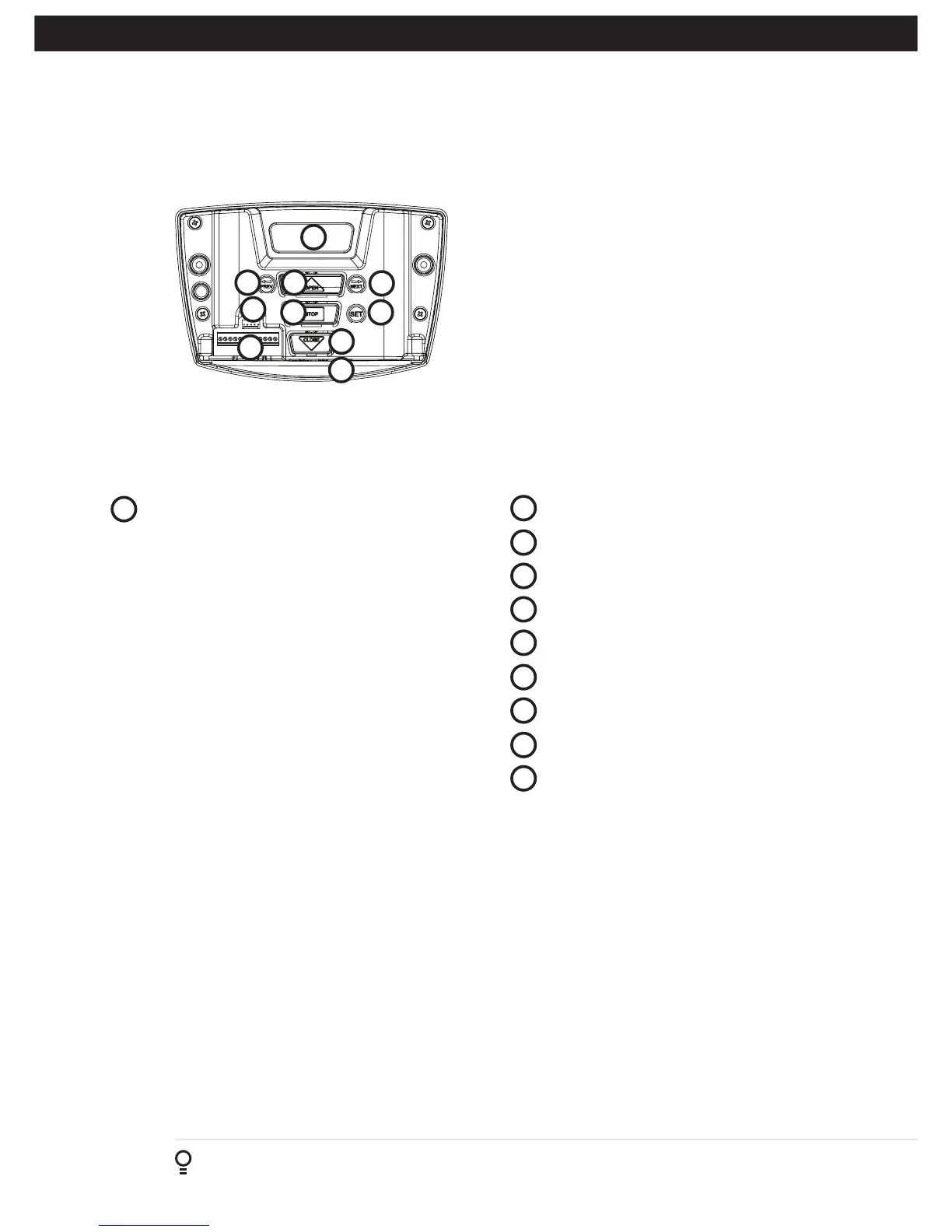

Fig 3.1 - Logic Console
ITEM DESCRIPTION QTY ORDER
CODE
1 AXESS 1505 V1 POWER DRIVE PACK 1 18105
2 LOGIC CONSOLE V2 1 61565
3 PTX-5V2 TC-128 TRANSMITTERS 2 61167
4 SAFETY BEAMS WITH WIRES AND BRACKETS 1 61904
5 BENT ARM 1 62800
6 STRAIGHT ARM 1 62790
ACCESSORY PACK
7 NILOCK NUT M8 1 10860
8 WALL BRACKET 1 62525
9 HEX HEAD SCREW M8 X 70 1 10088
10 SLEEVE 081246 1 64385
11 DOOR BRACKET LOCATOR 1 62515
12 DOOR BRACKET 1 62511
13 PIN SNAP SSP 8 ZNU 31080 2 10720
14 HEX HEAD SCREW M8 X 25 2 10110
15 CLEVIS PIN 0829 2 62551
16 HEX SERRATION FLANGE NUT M8 2 10148
17 SPACE HEAD CAP SCREW M5 X 45 2 10008
18 SPACE HEAD CAP SCREW M6 X 12 2 10010
RAIL
22 4M RAIL 1 92509
To Next Page
