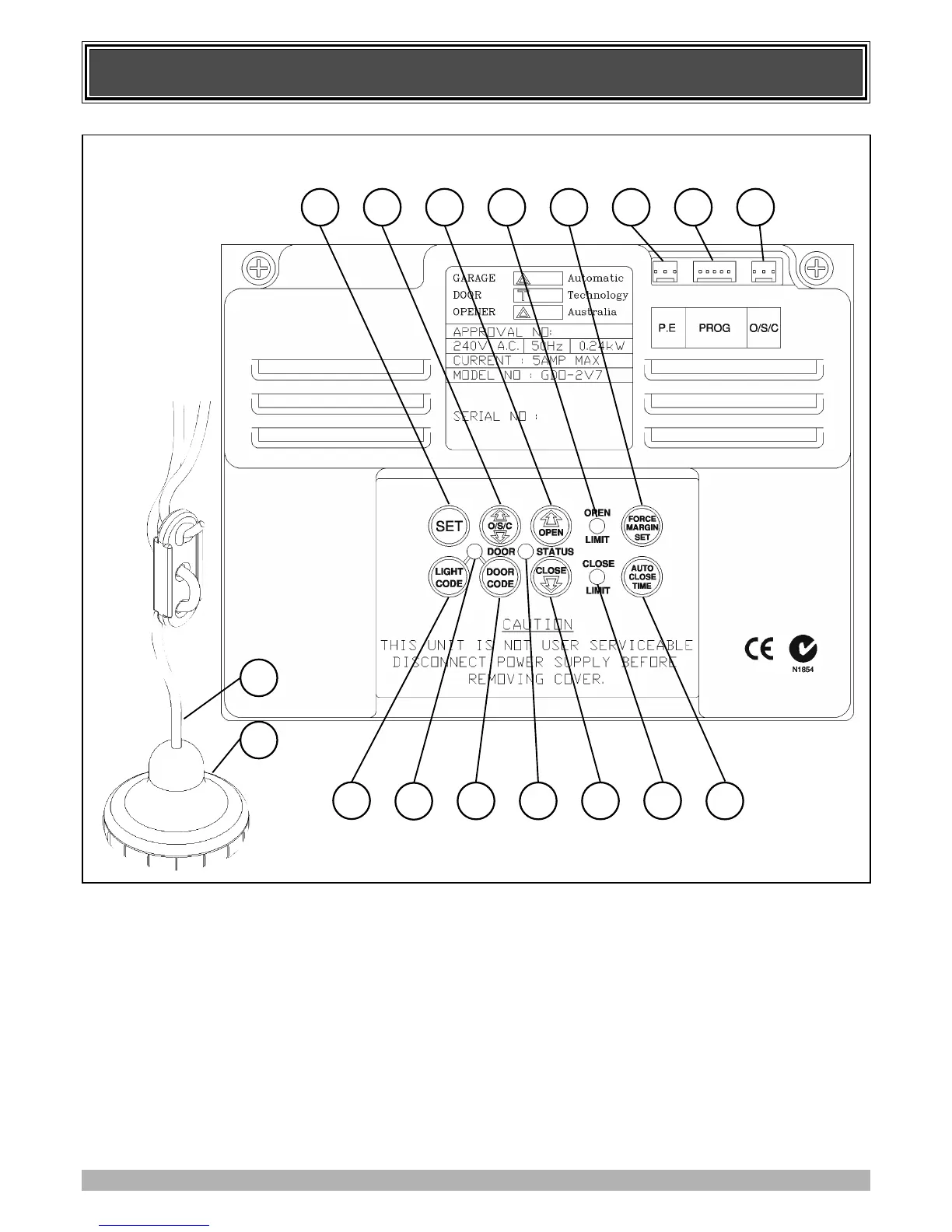

OPERATING CONTROLS
6
1) LIGHT CODE BUTTON (WHITE)
2) CODING LED (RED)
3) DOOR CODE BUTTON (BLUE)
4) DOOR STATUS LED (YELLOW)
5) CLOSE DRIVE BUTTON (RED)
6) CLOSE LIMIT LED (RED)
7) AUTO CLOSE BUTTON (WHITE)
8) SET BUTTON (YELLOW)
9) O/S/C BUTTON (YELLOW)
10) OPEN DRIVE BUTTON (GREEN)
11) OPEN LIMIT LED(GREEN)
12) FORCE MARGIN SET BUTTON
13) P.E. SHUNT
14) PROG. INPUT
15) O/S/C INPUT
16) ENGAGE/DISENGAGEMENT CORD
17) ENGAGE/DISENGAGEMENT HANDLE
EASY ACCESS TRANSMITTER
1
2
3 4
5
6
7
1210 11
16
17
13 14 1598
