DETERMINE THE DOOR TYPE

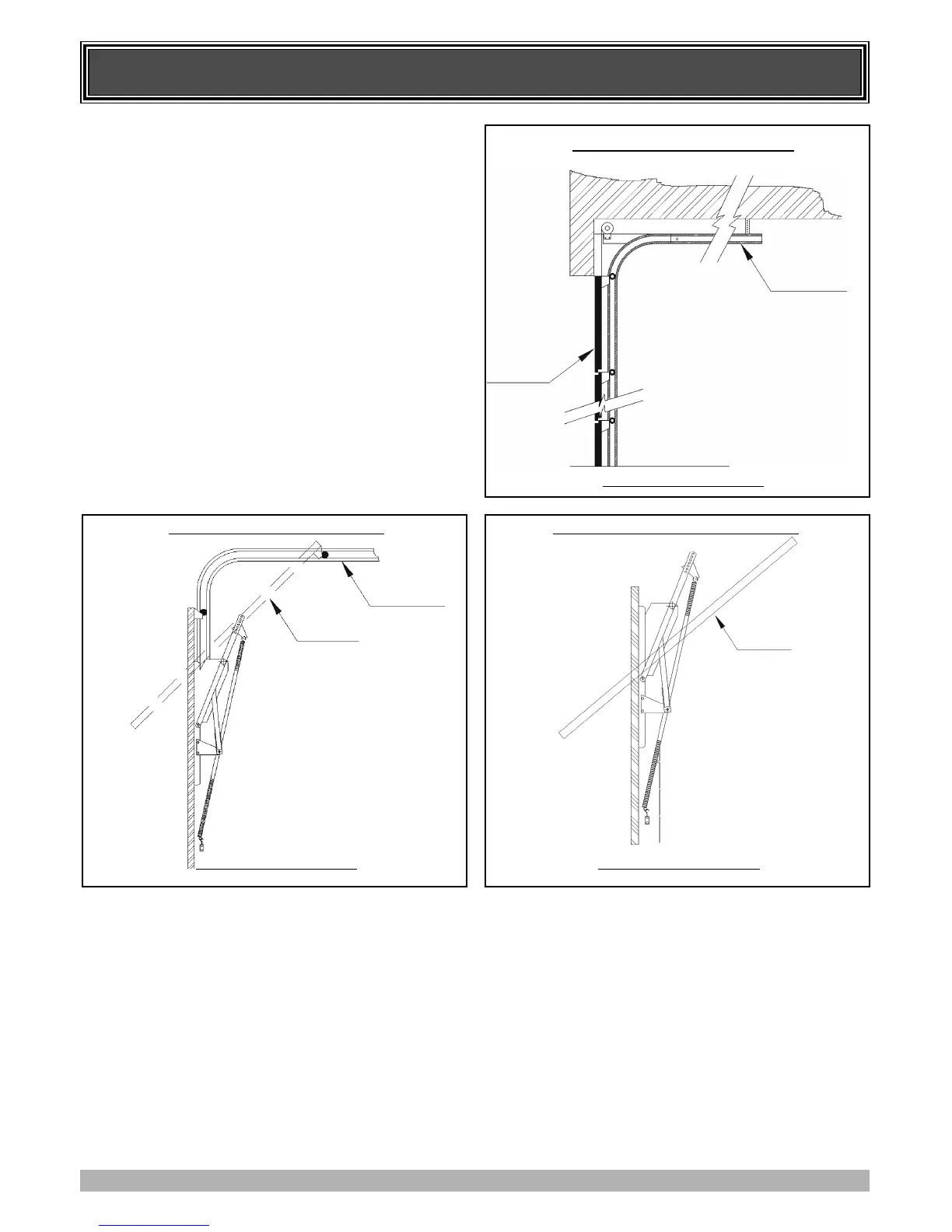

Determine which type of garage door you have as illustrated
below. (Fig. 3 -5).
z For a sectional (panel) door on tracks (Fig. 3) proceed with
the installation from Step 5.
z For a one piece door on tracks (Fig. 4) proceed with the
installation from Step 5.
z For a one piece door without tracks (on springs) (Fig. 5)
proceed with the installation from Step 9.
Remember - a one piece door without tracks requires a 7 teeth
drive sprocket.
FIG. 3
FIG. 4 FIG. 5
SECTIONAL
DOOR WITH
TRACK
DOOR
TRACK
PROCEED FROM STEP
5
ONE PIECE DOOR WITH TRACK
DOOR
TRACK
PROCEED FROM STEP
5
ONE PIECE DOOR WITHOUT TRACK
DOOR
PROCEED FROM STEP
5
