ATS Series Installation Manual25
D - Battery Functions
a. Holding the STOP button for 10secs when running from battery backup will shut the PCB down so as to reduce
battery current consumption to a minimum.
b. Holding the STOP button for 4secs when a battery is fitted and running from mains power will cause the controller
to test the battery state to determine if it is disconnected / open circuit, missing, faulty or ready.
Prior to limit set up, the opener can be set to J-Type Tilt Profile. This process allows the opener to pre-set to J-Type settings where
the limit is not greater than 1500mm. If J-Type is selected, the speed is customised and cannot be changed.
a. Press the MODE button repetitively until the GEAR LED starts flashing.
b. Press and hold STOP / SET button for 2 seconds to check the door type, until the main courtesy light turns solid ON or OFF.
• Main courtesy light ON - Tilt type (J-Type only)
• Main courtesy light OFF - Sectional type
c. Press and hold STOP / SET for 6 seconds to change the door type, until the main courtesy light turns solid ON or OFF. If
required, repeat step b to check the door type selected.
d. Press MODE button to exit the door selection mode. Proceed to Section 12 to set the limits.
F - Setting up Tilt Door

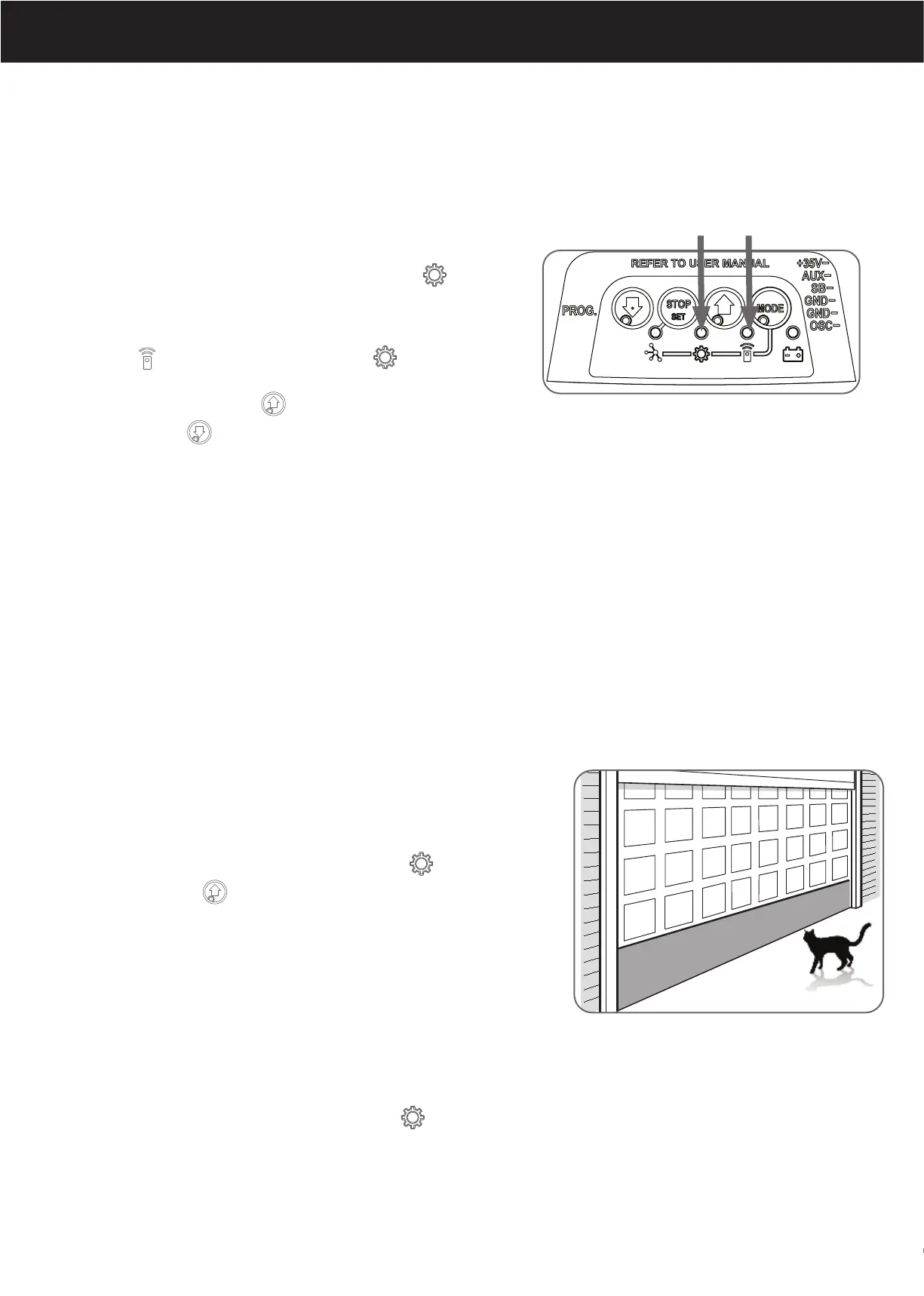

When activated, PET mode drives the door to a preset position from the close
position, therefore allowing a pet or parcel to go under the door.
a. Drive and stop the door at the desired PET mode open position by pressing
the transmitter button coded for Open/Stop/Close operation.
b. Press the MODE button repetitively until the GEAR
LED is lit.
c. Press OPEN button
to save PET position - Main light will flash, the
beeper will beep and both OPEN and CLOSE LED will light up.
E - Setting the PET Mode position
Adjusting Safety Obstruction Force
The Safety Obstruction Force is calculated automatically during
setup. Adjusting this is normally only necessitated by environmental
conditions such as windy or dusty areas, and areas with extreme
temperature changes.
To Increase / Decrease Force Pressure
a. Press the MODE button repetitively until the GEAR LED is
flashing.
b. The LED will start flashing with one flash every second.
c. Press the STOP / STEP button and the MODE button LED and the
TRANSMIT
LED will be lit and the GEAR LED will flash
once every second.
d. By pressing the OPEN button
will increase the force pressure
and CLOSE button
will decrease the force - Main light will dim
or brighten as the pressure is decreased or increased.
e. Press STOP / SET button to save the new value. (Refer to
Appendix B for margin settings)
f. Test the force again as per Testing Close Cycle and Testing Open
Cycle.
C - Adjusting Force Margins
