C2 Series User Manual Rev. 1.9



Geometry 4

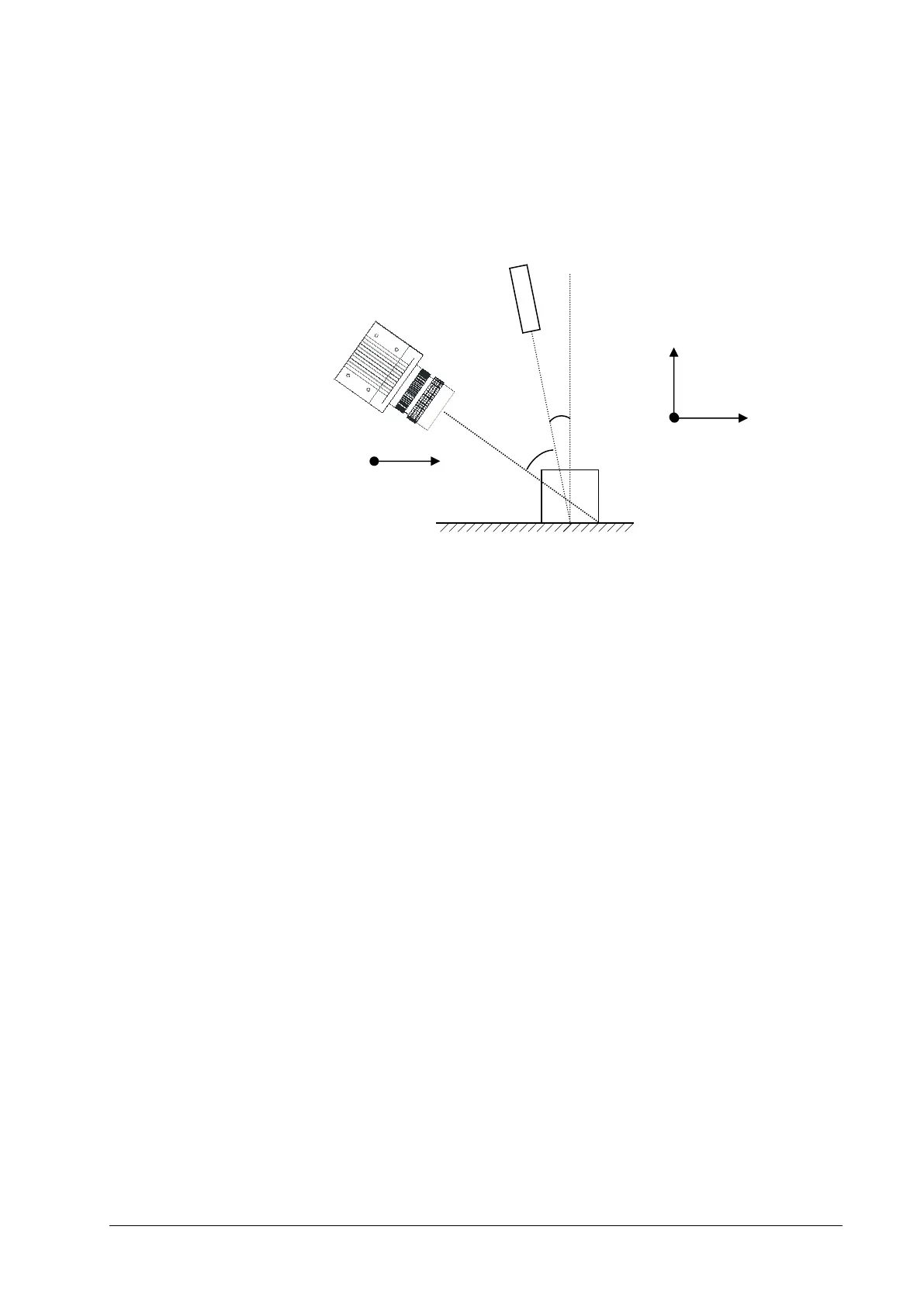

The camera views the object under an angle α, while the laser line is projected under a different

angle β at the camera side.

The height resolution can be approximated: ΔZ ≈ ΔX * cos(β) / sin(α),

Scan direction

Default Chapter3
- Table of Contents3
- C2 Series Overview6
Introduction6
The C2 Series General Specifications7
- The Sensor Specifications9
  - C2-640-Gige9
  - C2-2040(HS)-Gige10
- The Sensors Spectral Response11
- Temperature Range (Operation/Storage)12
- Heat Dissipation12
- Mechanical Drawings15
- Lens Protection Tubes for the C2 Series16
  - C-Mount Lens Protection Tube with Ø 44Mm16
  - Part Number for Lens Protection Tubes16
- C2 Series Operational Reference17
Measuring Principle17
- Geometry 117
- Geometry 218
- Geometry 318
- Geometry 419
The C2 Sensor Algorithms20
- The Image Mode (IMG)20
- The Maximum Intensity Profile Mode (MAX)21
- The Threshold Mode (TRSH)22
- The Center of Gravity Mode (COG)23
- The FIR Peak Mode (FIR PEAK)24
The FIR Filter Function25
The High Dynamic Range 3D Feature (HDR-3D)26
- Multiple Slope Function26
- Multi-Frame Readout Mode (NDR)29
The Data Output Format30
- The Data Channel Assignment DC0, DC1 and DC230
- The Output Frame Structure32
  - Index Definition33
  - Examples of Output Frame Structure33
The Advanced AOI Functions36
- AOI-Search36
- AOI-Tracking36
The C2 Series Triggering Mode37
- Description of Profile Trigger Modes37
- Trigger Control - RS422 Resolver38
- Description of Modes for Triggering of Sequencer/Frame and Profile Acquisition40
The C2 Series Chunk Data Mode42
- General Description42
- Payload Layout in Chunk Data Mode43
- XML Descriptors and ID's44
- Chunk Data Structure45
The Gige-Vision Events46
The Web Interface47
The External C2-I/O Panel (Rev. 2.0)49
- Mechanical Drawing50
- Clamp Configuration50
- Mechanical Dimension52
- Electrical Specifications of C2-I/O-Panel53
- Use of Power Supply Chain with Interlock Function to Supply a Laser55
- Schematic of Isolated Digital I/Os Located on the C2-I/O Panel56
- C2-I/O Panel and C2 Camera (Compatibility Overview)57
The C2-Gige Interface58
- The Gige Interface58
- The I/O & Power Interface59
- Description of Leds60
- Integrated RS232 Serial Interface and Camera Boot Log61
The C2 Cables63
- Cables for Power, I/O and Laser Control63
- Wire Assignment of C2 Pigtail Cable64
- Cables for Gige Interface65
- Cables for Power, I/O and Laser Control (***Discontinued***)67
- Wire Assignment of C2 Pigtail Cable68
- Orientation of Angled Adapter Cable69
The C2 Series Genicam Features70
- Device Control70
- Image Format Control70
- Acquisition Control70
- Camera Control70
- Light Control71
- Camera IO71
- Trigger Control71
  - RS422 Resolver72
  - Autostart72
- Transport Layer Control72
  - Gige Vision72
- User Set Control72
- Chunk Data Control72
- Event Control72
- File Access Control72
- Cxexplorer Overview73
The Cxexplorer73
Cxexplorer Features74
- Image Wizard74
- Image Mode75
- 3D Wizard75
- 3D Mode76
- Quickstart a C2 Camera77
- Service Information78
Product Information and Updates78
Warranty Conditions79
- Warranty Period79
- Extended Warranty79
Return Policy79
Document Revision80
