Automation Technology C2 Series User Manual

48

C2 Series User Manual Rev. 1.9

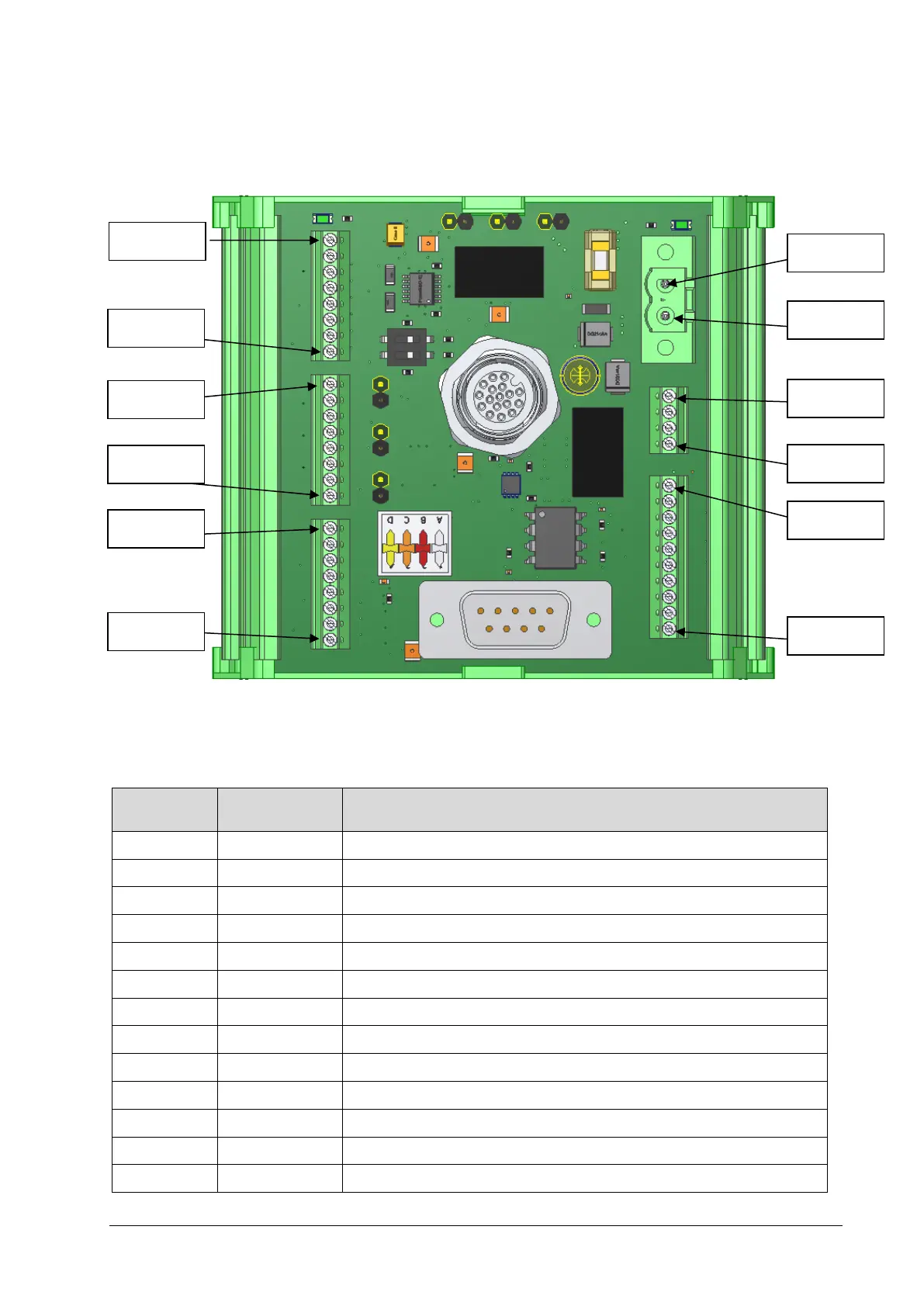

Mechanical Drawing
Clamp Configuration
Clamp No.
Signal Name
Description
J200/1
POWER_EXT
Camera supply voltage (10-24V DC)
J200/2
GND_EXT
Camera ground
J201/1
SHIELD
Camera shield
J201/2
SHIELD
Camera shield
J201/3
GND
Supply chain of camera ground
J201/4
VCC
Supply chain of camera voltage
J300/1
GND
Encoder ground
J300/2
HZ-
HTL encoder index track Z-
J300/3
HZ+
HTL encoder index track Z+ / single-ended index track Z
J300/4
HB-
HTL encoder track B-
J300/5
HB+
HTL encoder track B+ / single-ended track B
J300/6
HA-
HTL encoder track A-
J300/7
HA+
HTL encoder track A+ / single-ended track A
J200/2
J201/1
J500/1
J200/1
J400/1
J400/8
J300/1
J300/8
J301/1
J301/8
J201/4
J500/10
