The External C2-I/O Panel (Rev. 2.0)

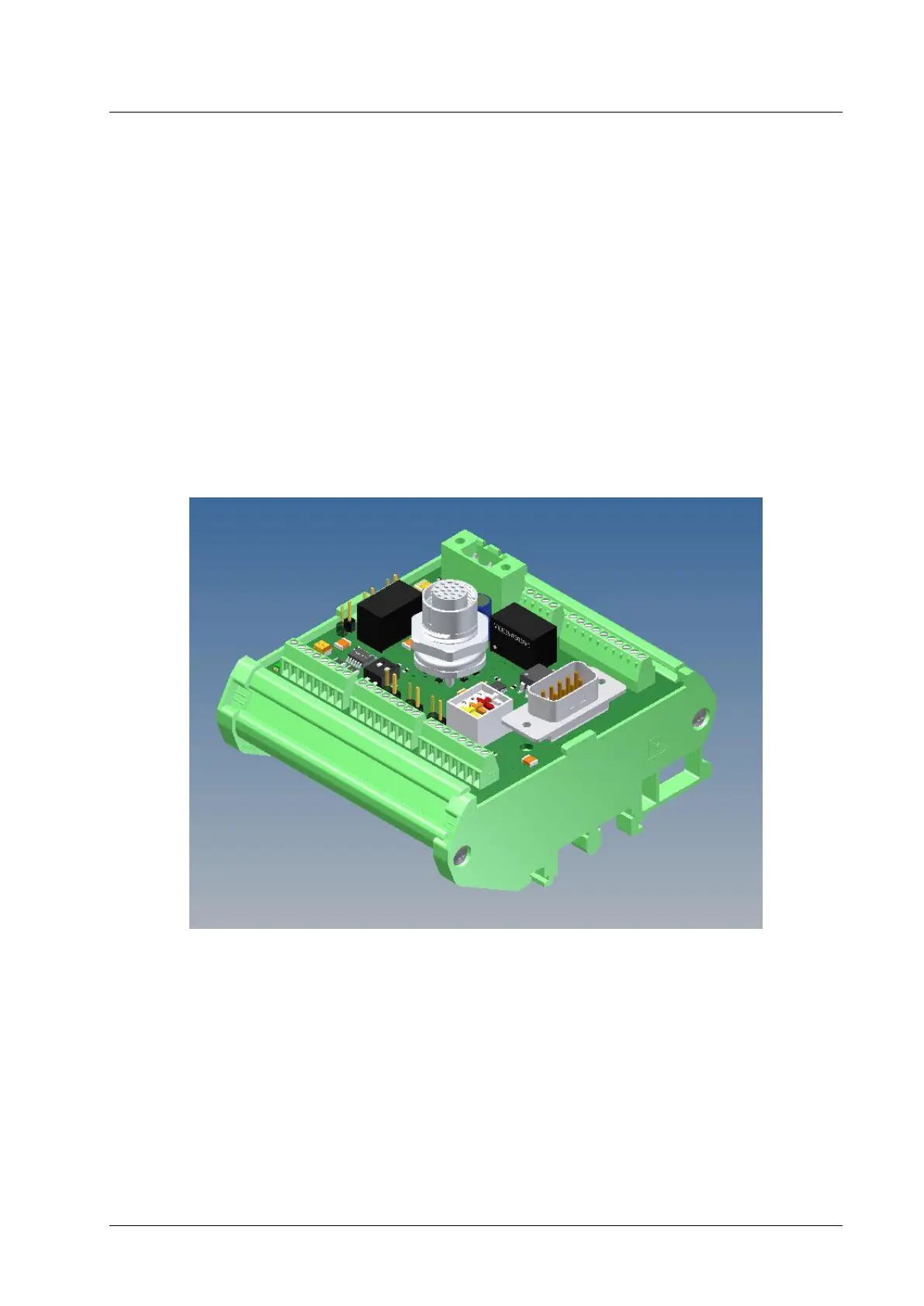

The C2-I/O-Panel Rev. 2.0 (#202 201 020) provides a user friendly way to connect the power, I/O
and laser control signals of the C2 camera. It features the following functions:
- integrated receiver for use with differential RS422/HTL as well as single-ended encoder
signals
- direct I²C interface to control laser or other external devices
- isolation of I/O, encoder and laser control signals
- adjustable digital input voltage level (5V/24V)
- digital outputs support master/slave camera operation
- reverse polarity protection
