64



C2 Series User Manual Rev. 1.9

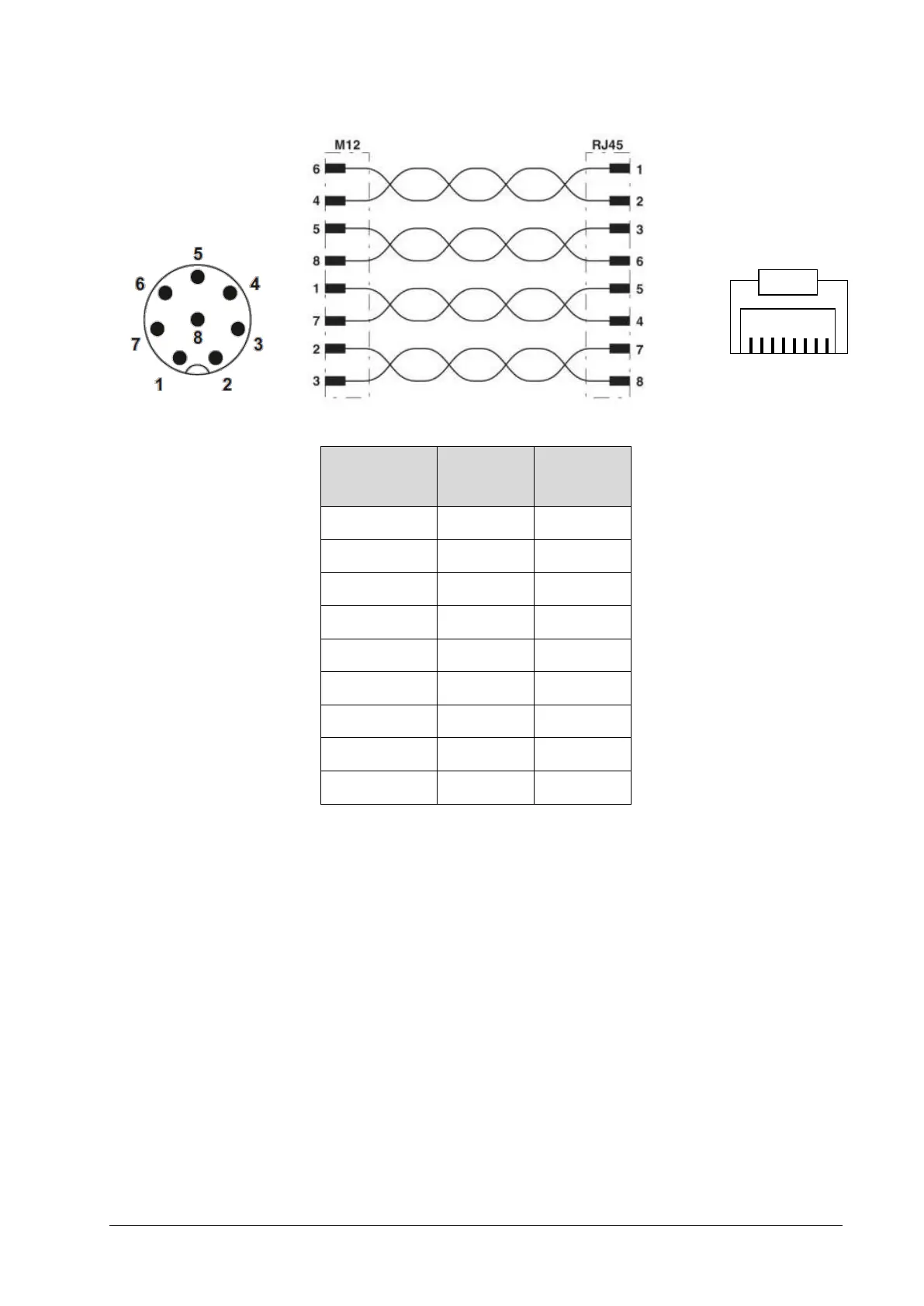

GigE Signal

Name

Pin No.

M12

Pin No.

RJ45

BI_DC-

1

5

BI_DD+

2

7

BI_DD-

3

8

BI_DA-

4

2

BI_DB+

5

3

BI_DA+

6

1

BI_DC+

7

4

BI_DB-

8

6

Shield

Shield

Shield

1

8

RJ45

Male Plug

M12 Male Plug
