Autonics CT6Y-2P series - Input Connection

5 Guide For Connection
34 © Copyright Reserved Autonics Co., Ltd.

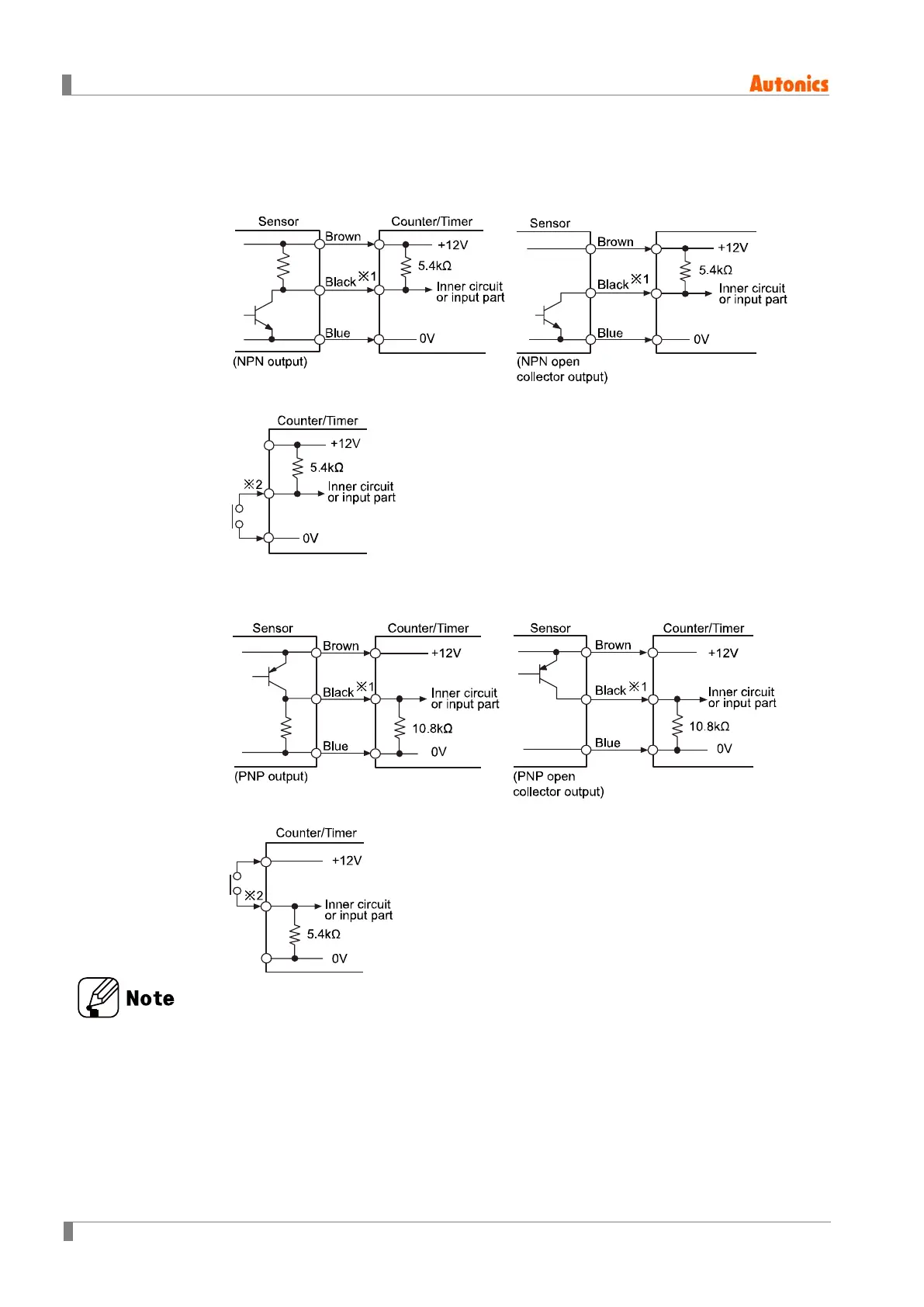

5.2.2 Input connection
(1) No-voltage input (NPN)
 Solid state input (standard sensor: NPN output type sensor)
 Contact input
(2) Voltage input (PNP)
 Solid state input (standard sensor: PNP output type sensor)
 Contact input
※1: INA, INB/INH, RESET, INHIBIT, BATCH RESET input part
※2: For contact input, counting speed should be set 1cps or 30cps. (Counter)
