8.2 Output mode
Output
mode

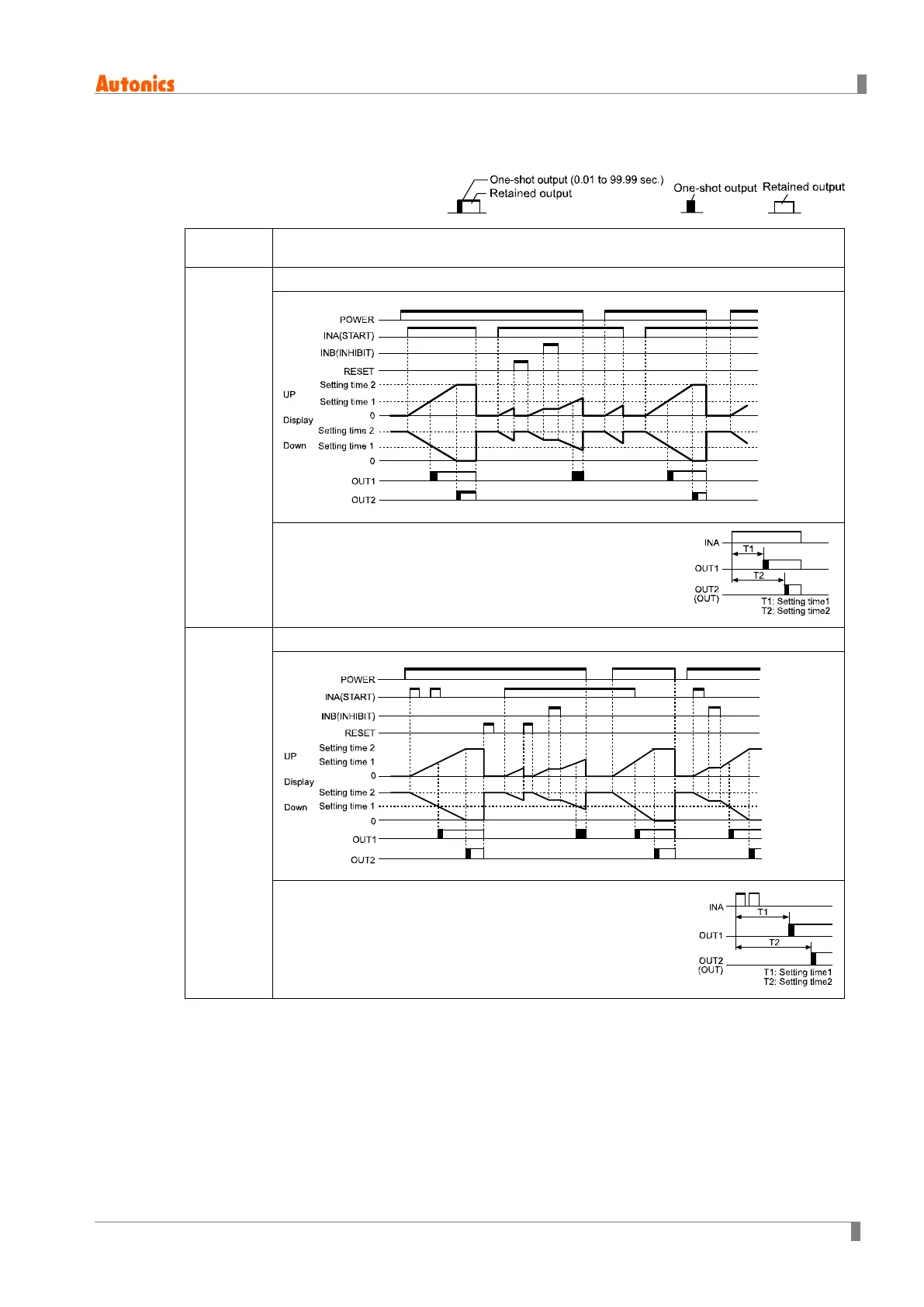

Time chart
OND
[OND]
Signal ON Delay (Power RESET)
1) Time starts when INA signal turns ON.
2) When INA signal turns OFF, time resets.
3) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
4) Control output operates as retained or one-shot output.
OND.1
[ONd1]
Signal ON Delay 1 (Power RESET)
1) Time starts when INA signal turns ON.
2) When INA signal is ON: Power ON Time Start is operated
RESET OFF Time Start is operated.
3) Control output operates as retained or one-shot output.
4) Only first INA input signal is valid in case INA input signal is
repeatedly applied.
