8 Timer Mode
58 © Copyright Reserved Autonics Co., Ltd.

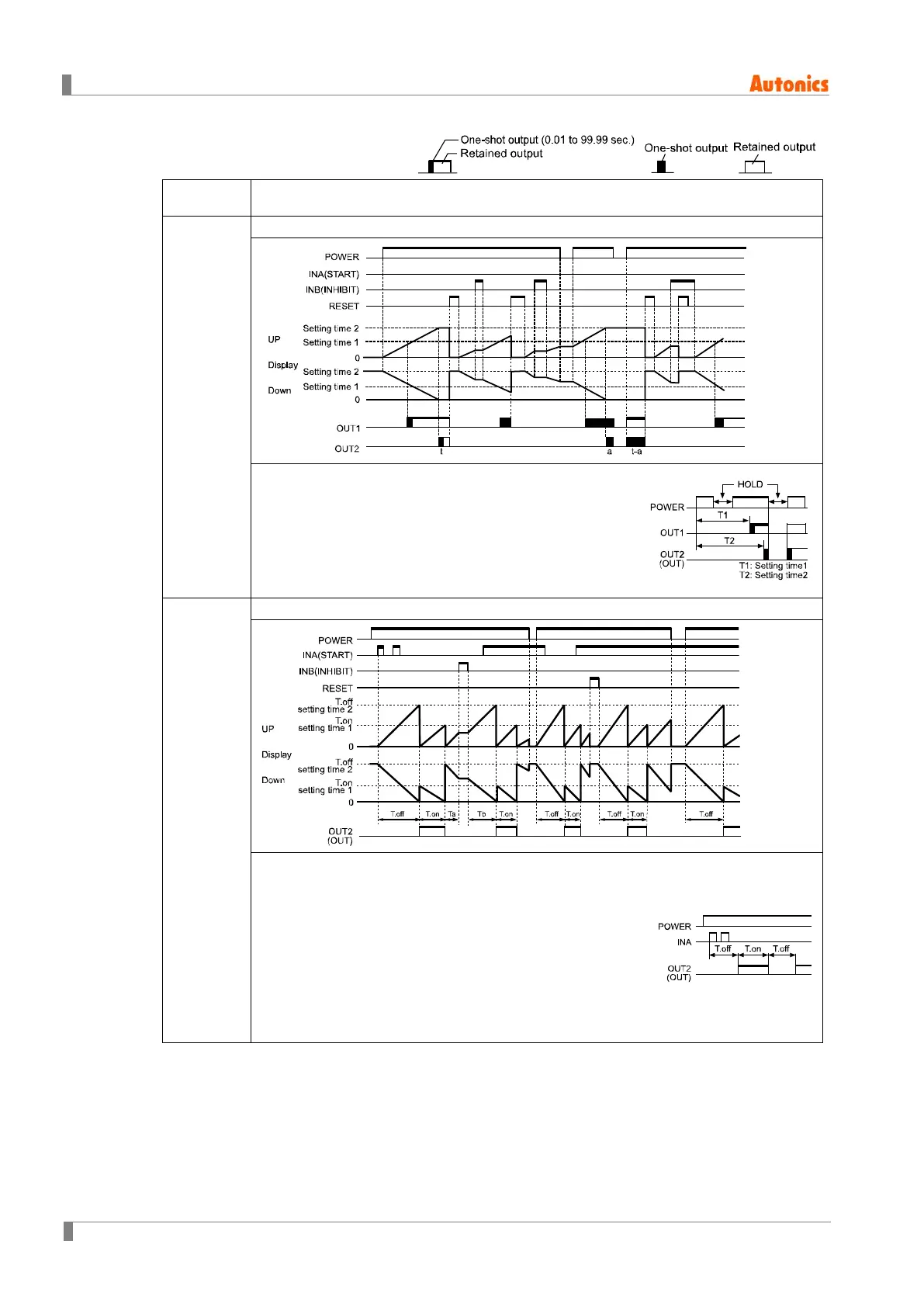

Time chart
OND.2
[ONd2]
Power ON Delay 2 (Power Hold)
1) Power ON Time Start (There is no INA function.)
2) RESET ON: Time RESET
RESET ON→OFF: Time Start
3) Control output operates as retained or one-shot output.
4) It memorizes display value at the moment of power
OFF.
FLK
[FLK]
1) Time starts when INA signal turns on.
2) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3) Control output operates as retained output, output turns
off for the T.off time and turns off for the T.off time and
turns on for the T.on time repeatedly.
Ta+Tb = T.off setting time
4) The T.on time and T.off time must be set individually.
5) In case of using the contact output, min. setting time
must be set over 100ms.
