8 Timer Mode
© Copyright Reserved Autonics Co., Ltd. 59
Output
mode

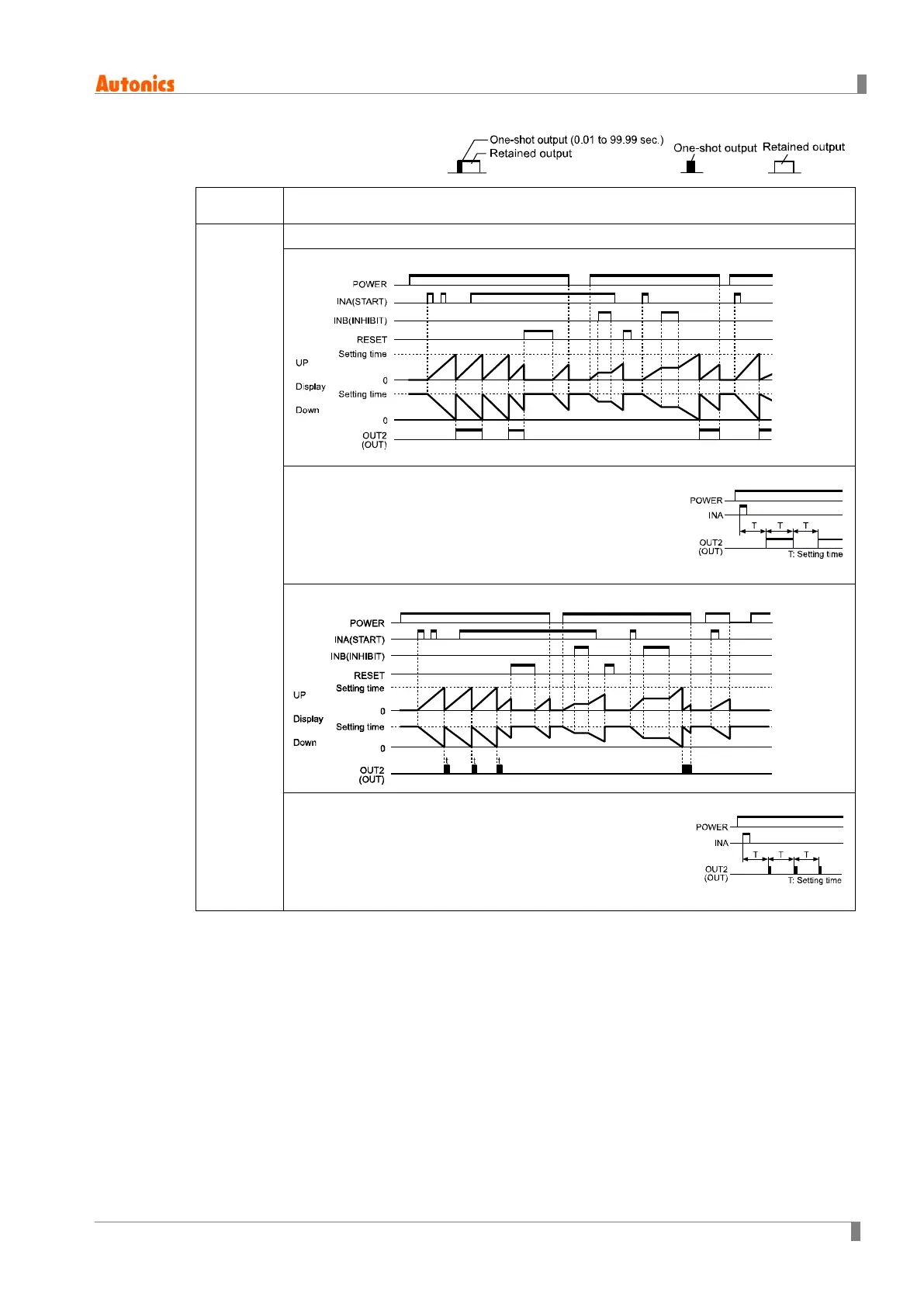

Time chart
FLK.1
[FLk1]
Flicker 1 (Power RESET)
Hold output
1) Time starts when INA signal turns on.
2) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3) Control output operates as retained output.
4) In case of using the contact output, min. setting time
must be set over 100ms.
One-shot output
1) Time starts when INA signal turns on.
2) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3) Control output operates as one-shot output.
4) In case of using the contact output, min. setting time must
be set over 100ms.
