8 Timer Mode
60 © Copyright Reserved Autonics Co., Ltd.
Output
mode

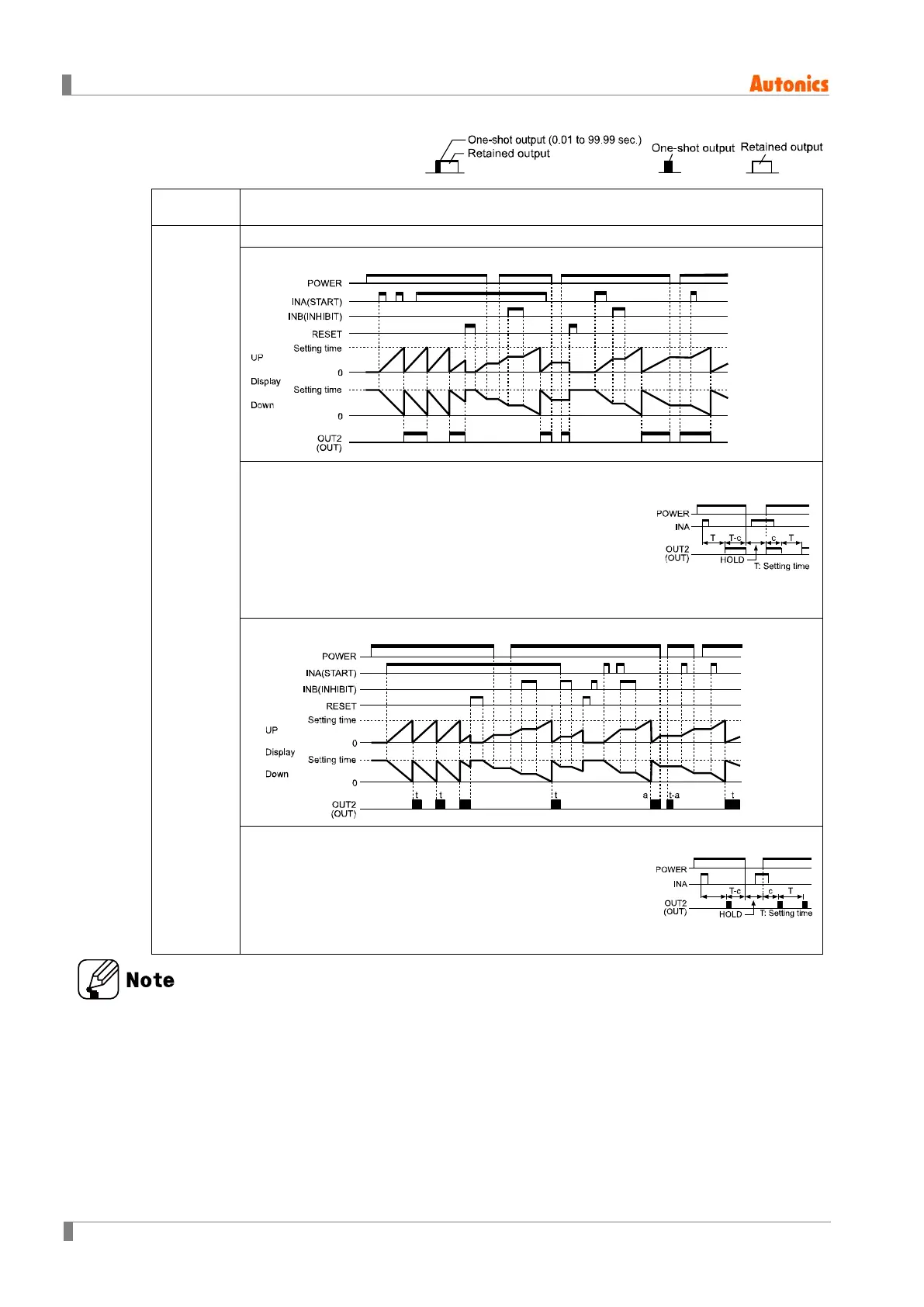

Time chart
FLK.2
[FLk2]
Flicker 2 (Power Hold)
Hold output
1) Time starts when INA signal turns ON and the display
value at the moment when power is off is memorized.
2) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3) Control output operates as retained output.
4) Control output will be reversed when it reaches to setting
time. (At the initial start, OUT2 control output is OFF).
5) In case of using the contact output, min. setting time must
be set over 100ms.
One-shot output
1) Time starts when INA signal turns ON and the display
value at the moment when power is off is memorized.
2) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3) Control output operates as one-shot output.
4) In case of using the contact output, min. setting time must
be set over 100ms.
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
