8 Timer Mode
© Copyright Reserved Autonics Co., Ltd. 61
Output
mode

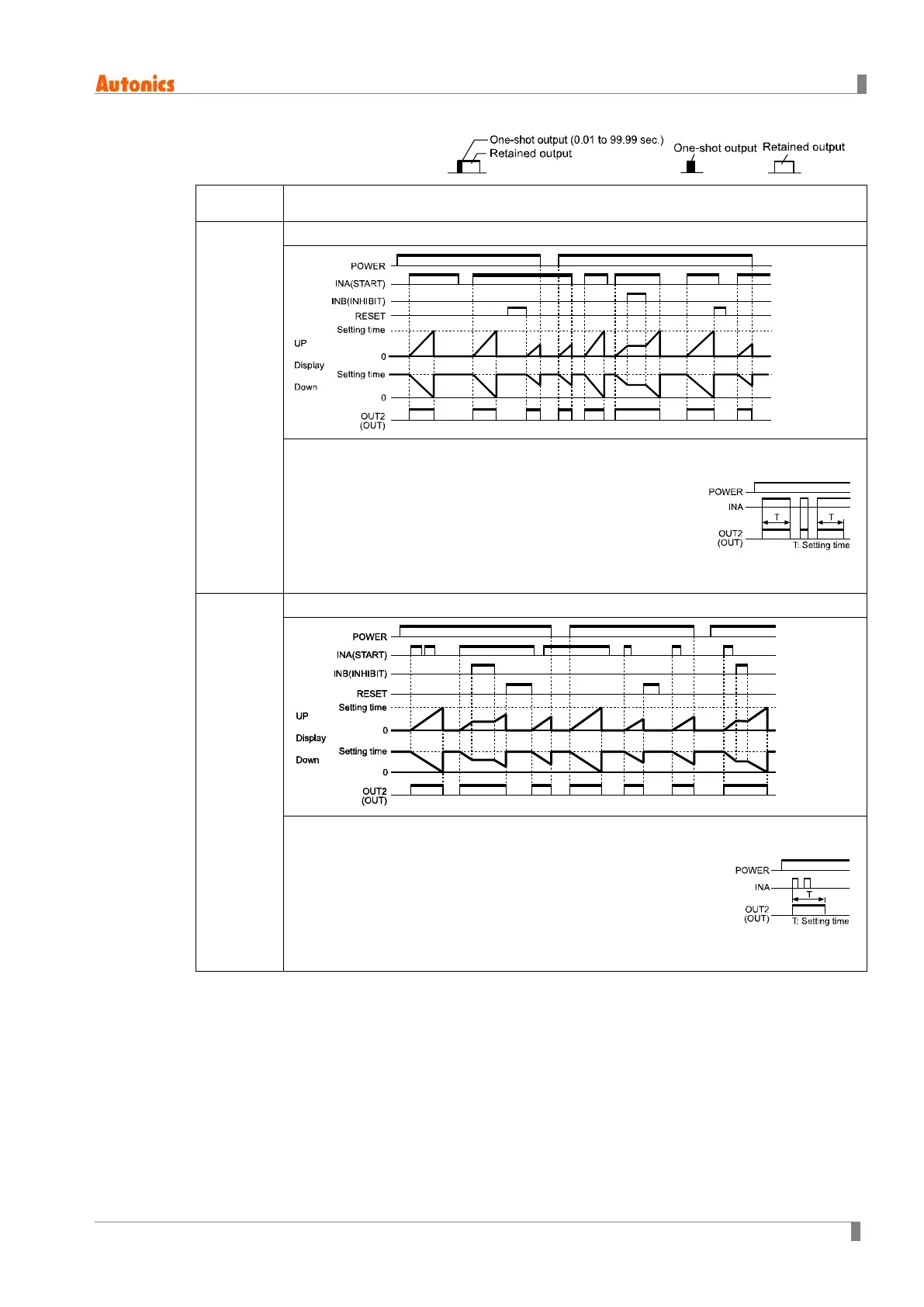

Time chart
INT
[INT]
Interval (Power RESET)
1) Control output turns ON and time starts when INA signal
turns ON.
2) When INA signal is OFF, time is reset.
3) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
4) When it reaches setting time, indication value and control
output are reset automatically.
5) Control output is ON when time is progressing.
INT.1
[INt1]
Interval 1 (Power RESET)
1) Control output turns ON and time starts when INA signal turnsn
ON.
2) When INA signal is ON: Power ON Time Start is operated.
RESET OFF Time Start is operated.
3) When it reaches setting time, indication value and control
output are reset automatically.
4) Control output is ON when time is progressing.
5) INA input is ignored while time is progressing.
