8 Timer Mode
62 © Copyright Reserved Autonics Co., Ltd.

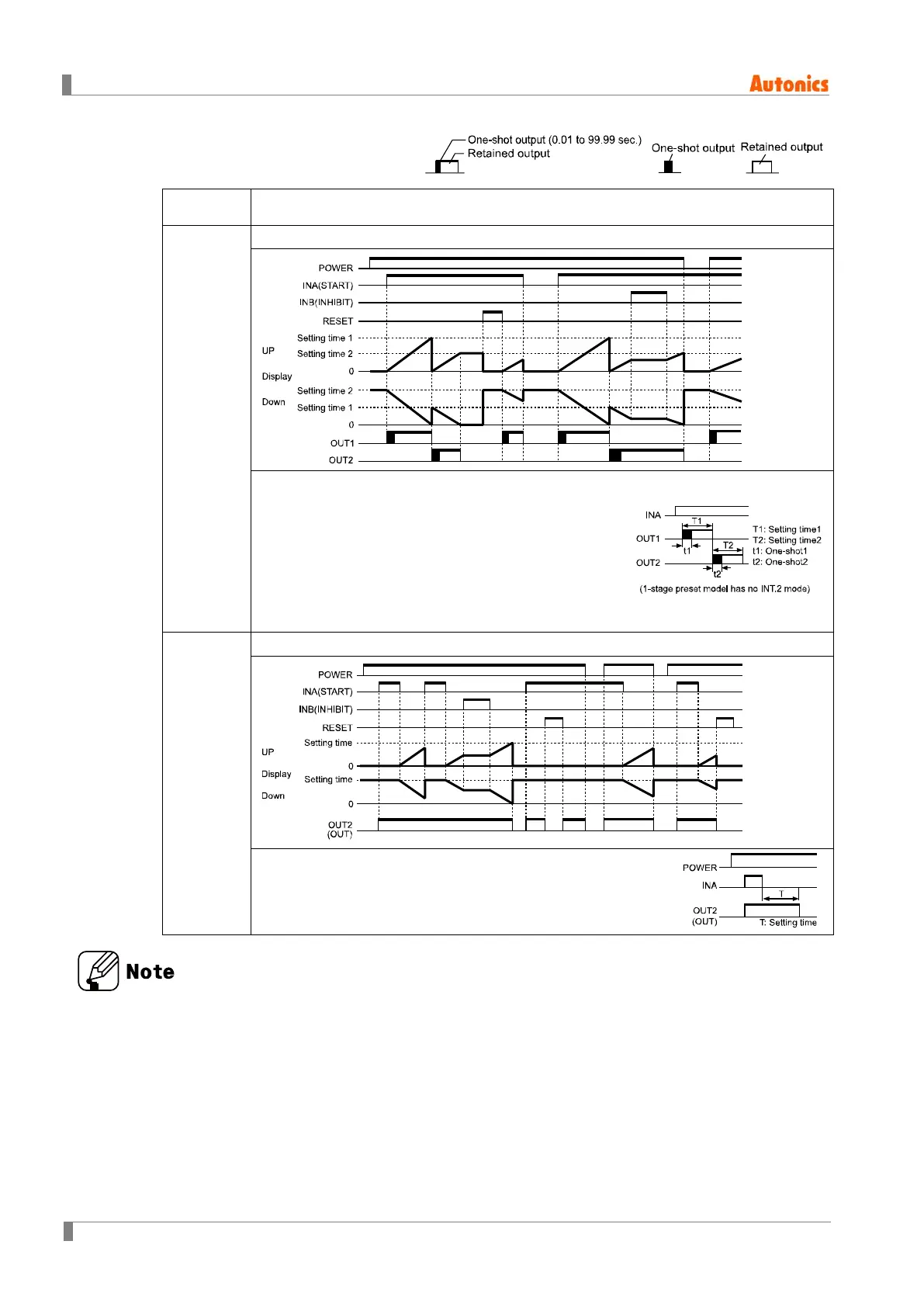

Time chart
INT.2
[INt2]
Interval 2 (Power RESET)
1) Time starts when INA input is ON and resets when
INA input is OFF.
2) INA input is ON, OUT1 output is ON during T1 (hold)
or t1.
3) When it reaches setting time1, display value resets
and OUT2 output is ON during T2 (hold) or t2 output
time.
※Output turns OFF when reaching the setting time even if
one-shot time is longer than setting time.
OFD
[OFD]
Signal Off Delay1 (Power RESET)
1) If INA is ON, control output remains ON.
(except when power is off and reset is on)
2) When INA signal is OFF, time processes.
When it reaches setting time, indication value and
control output are reset automatically.
※Power RESET: There is no memory protection. (resets the display value when power is off)
※Power Hold: There is memory protection. (memorizes the display value at the moment of
power off, indicates the memorized display value when power is resupplied.)
