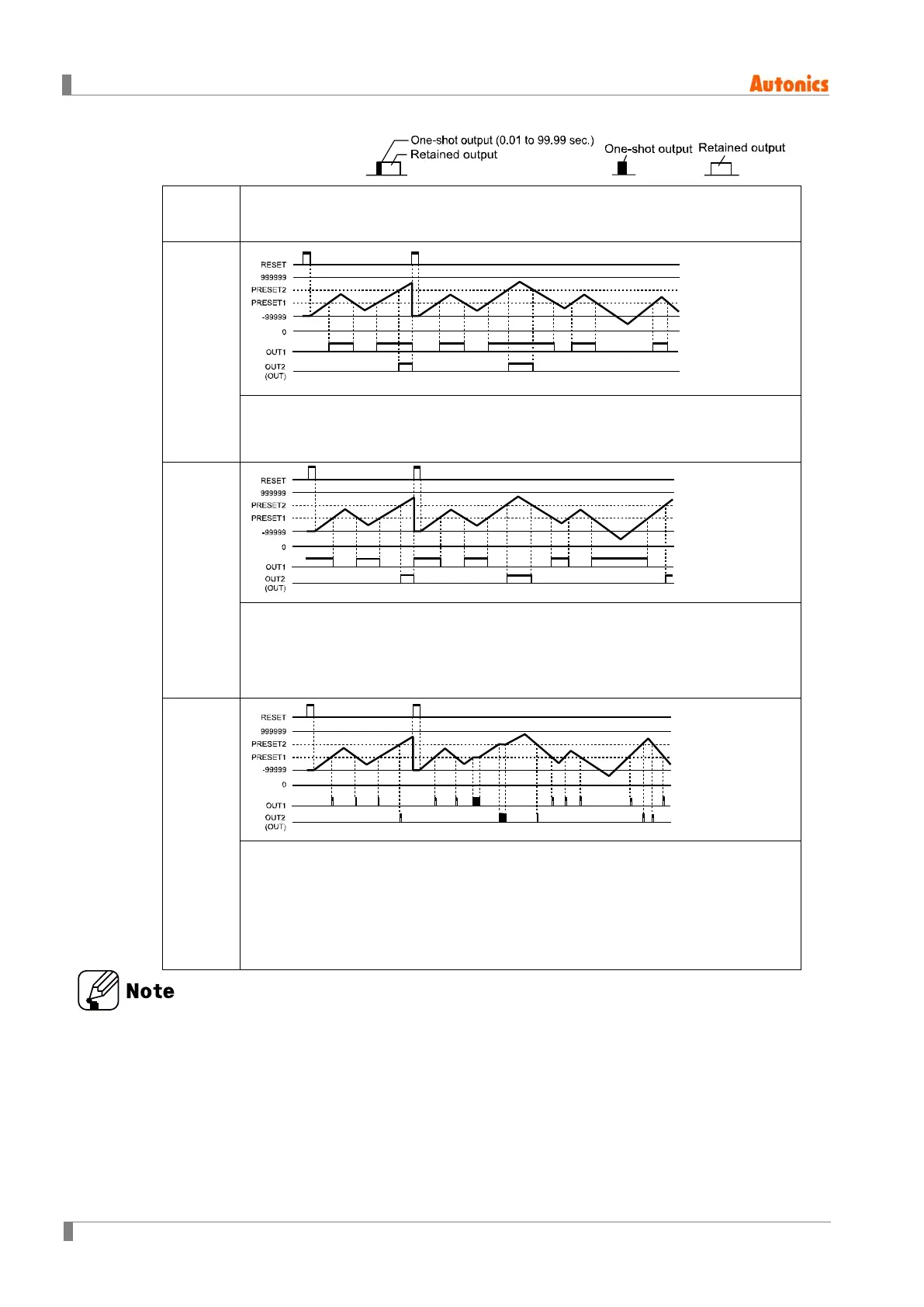

7 Counter Mode
50 © Copyright Reserved Autonics Co., Ltd.
Output
mode
Up/Down A, B, C
S [S]
※OUT1 and OUT2 keep ON status in following condition:
Counting display value
≧
PRESET1
Counting display value
≧
PRESET2
T [T]
※OUT1 output is off: Counting display value
≧
PRESET1
(when PRESET 1 is 0, OUT1 output maintains ON state.)
※
OUT2 keeps ON status in following condition:
Counting display value
≧
PRESET2
D [
D
]
※When counting display value is equal to setting value [PRESET1, PRESET2)
only, OUT1 or OUT2 output keeps ON status.
※When setting 1kcps for counting speed, solid state contact output should
be used.
(When using contact output, it is difficult to execute normal output operation due
to contact reaction time.)
※OUT output as 1-stage setting value change model operates as output of OUT 2 as 2-stage
setting value change model.
※In case of 2-stage setting value change model, OUT1 output operates as as one-shot output or
retained output. (except S, T, D mode)
※OUT1 output is available to set as ‘0’ at every output mode. The output for ‘0’ setting executes.
※In case of C[C], R[R], P[P], Q[Q] output mode, OUT2 output is not available to set as ‘0’.
