Page - 17
SECTION 7 - PROGRAMMING
7.1 Control Panel

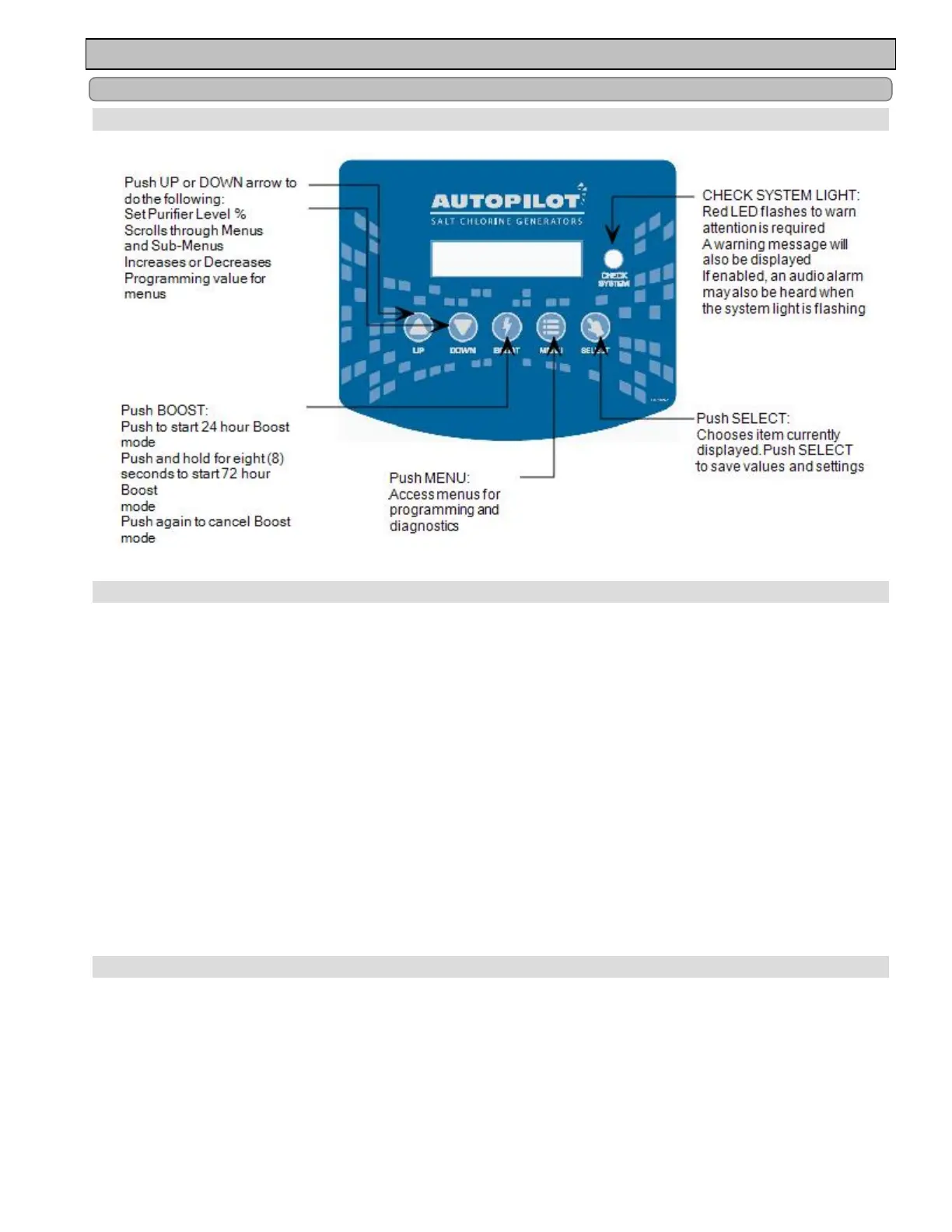

7.1.a Button Overview
7.1.b MENU / SELECT Button
The MENU button is used to enter the program and diagnostic modes. Use the UP / DOWN
arrows and SELECT button to navigate through the menus and sub-menus.
Note: To permit quick access to features, some functions are accessed or programmed in
several menus.
l Test Pool Pilot - displays various operating parameters and diagnostic results.
l View Setup - displays the programmed setup parameters.
l Owner Options - programs the primary operating parameters an owner would need to change.
l Maintenance Menu - tests and programs the primary features a service technician would need to access
when servicing the system.
l Installer Menu - program the initial system setup.
SELECT Button
The SELECT button chooses the displayed menu option. For the “Installer Menu”, press and
hold the SELECT button for approximately 13 seconds to access this feature. The SELECT
button also temporarily disables the buzzer during an error display.
7.1.c Display Overview
The first line of the display typically indicates Purifier / Chlorine Output Level in percent, or
whether the system is in Boost or Super-Boost mode.
The second line will show the following information:
l If Temperature Display is turned on, the temperature in either °F or °C will be shown.
l “On” in the lower right corner will indicate whether the cell is generating chlorine.
To Next Page
