Fit a Talent Monitor to EVO-IP Prompt Monitor

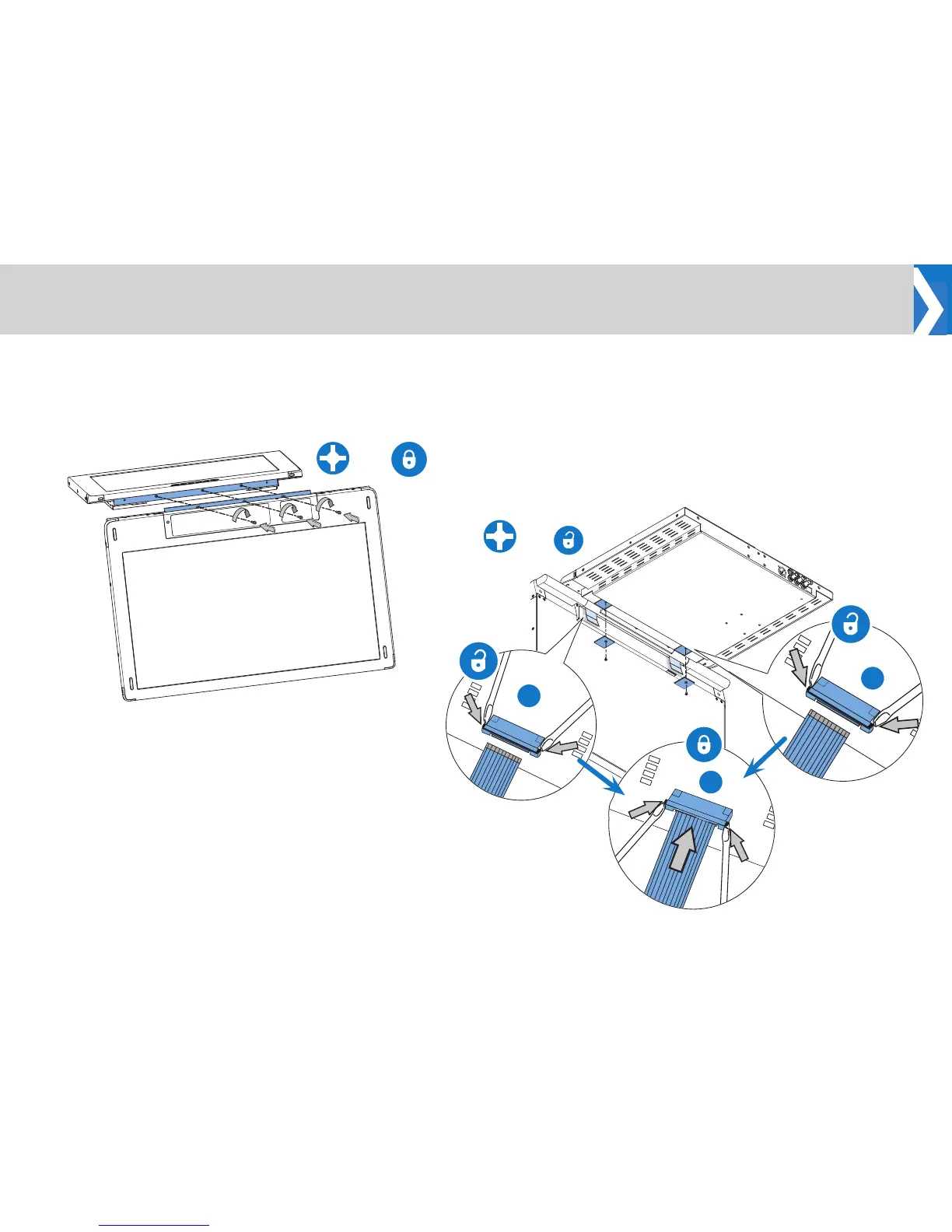

1. Align the talent monitor with the mounting points on the front of
the prompt monitor.
X 3
X 2
2. Insert the 3 x screws into the hinge bar and secure the talent
monitor to the prompt monitor.
3. Working on the underside of the prompt monitor, remove the
two cover plates to gain access to the ribbon cable sockets.
4. Using a small screw driver or similar device, open the
socket latch (1) by carefully pushing the tags at either end
outwards.
Align the ribbon cable with the socket. Gently insert the cable
into the socket, push until it is securely in place.
6. With the ribbon cable fully inserted, lock the socket (2) back into
place by pushing the tags at either end fully home. Double check
that the latch is securely holding the tape in place.
7. Replace the cover plates.
1
1
2
