24
Installation

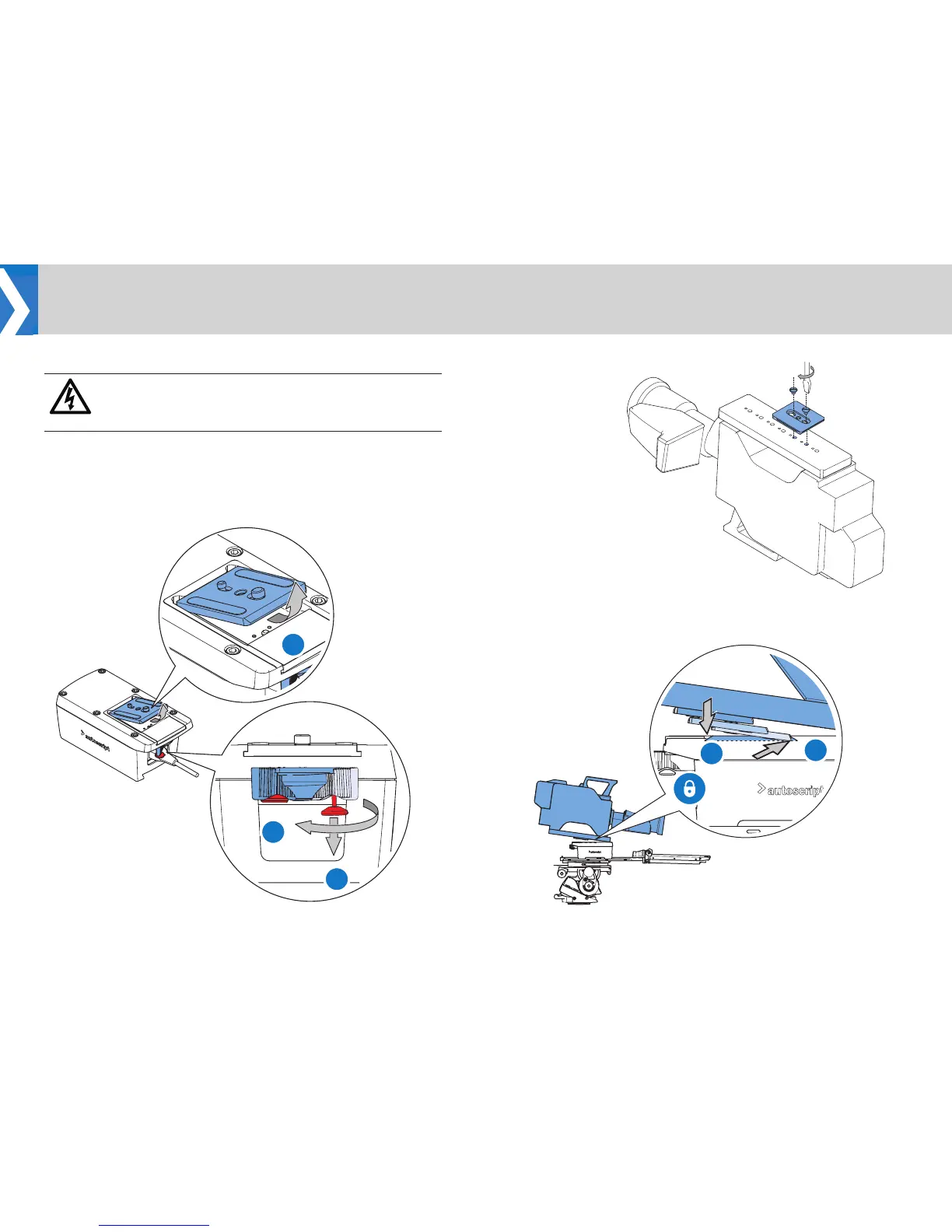

Mounting the Camera.
WARNING! Before attempting to install or adjust the
prompter assembly, the tilt axis of the head support must
be securely locked.
1. Pull the red safety lock pin (1) outwards.
2. Turn the locking lever (2) anticlockwise until it clicks into the
unlocked position.
3. The camera plate will be released from the carriage assembly.
1
2
3
4. Attached the camera plate to the camera such that the centre of
the camera is over the centre of the carriage .
Position the camera plate and camera at a forwards angle
into the front of the carriage recess and push down. It will lock
automatically and the lock lever will audibly snap back to the
locked position.
1
2
