Monitor Setup
Panel Orientation
Ensure the sticker faces outwards and peel off once the glass is
secured in place.
Removal and Fitting of Reective Glass
Panel for Replacement or Cleaning
WARNING! Risk of personal injury or injury to others.
CAUTION! Only use the correct size glass panel designed
for the installed hood.

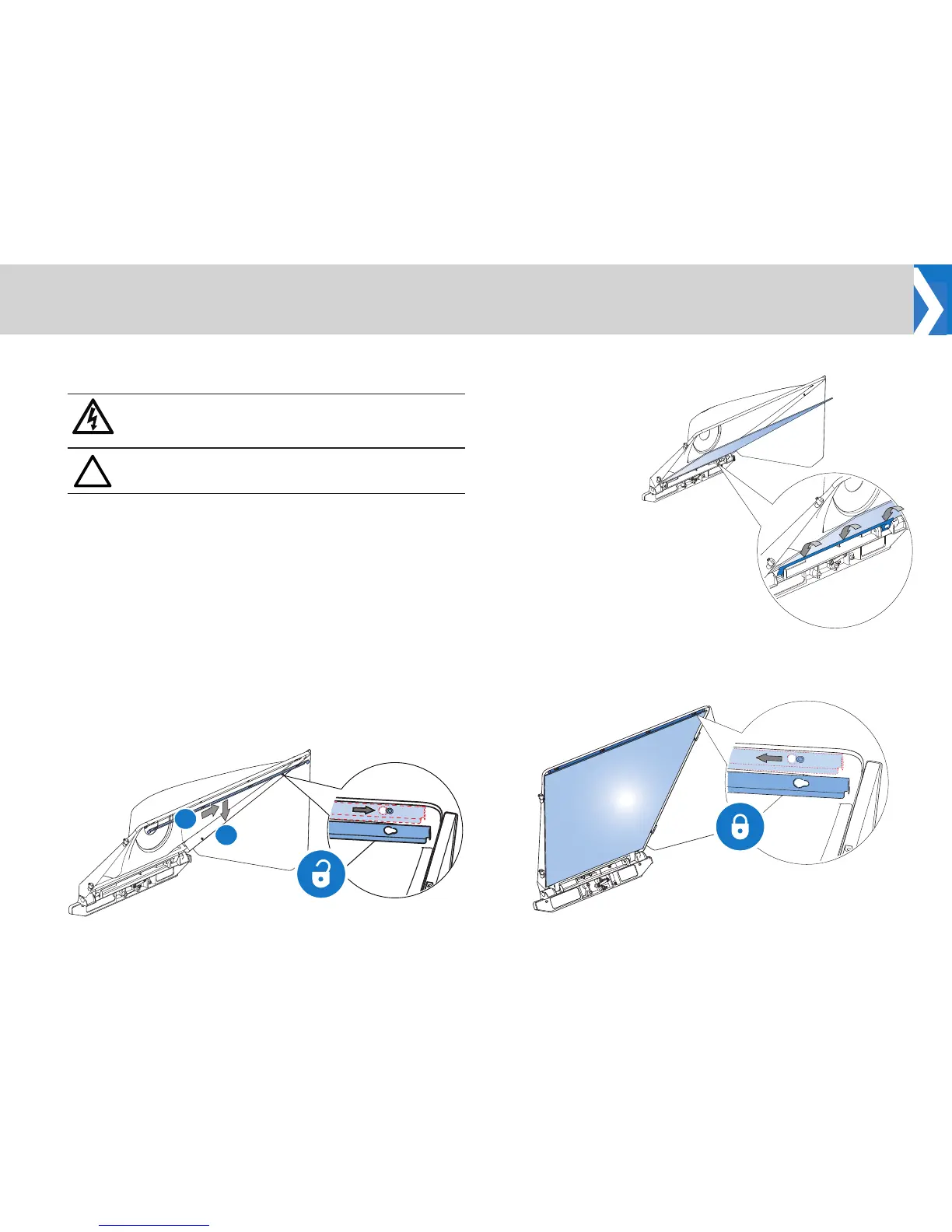

Installing the Glass
The installation procedure for the glass panel is the same on all types
of hood. No tools are required.
1. Release the top glazing bar by sliding the bar to the right (when
facing from the front) until the key way aligns with the bobbins
(1) and lower the bar from the hood (2).
1
2
2.
inside the hood, ensure the blue sticker is facing outwards.
3. Lay the glass against the foam pads.
4. Secure the glass using the top glazing bar. Locate the key ways
over the bobbins on the hood.
Slide the bar to the left (when facing from the front) until it locks
into place on the bobbins.
