22
Installation

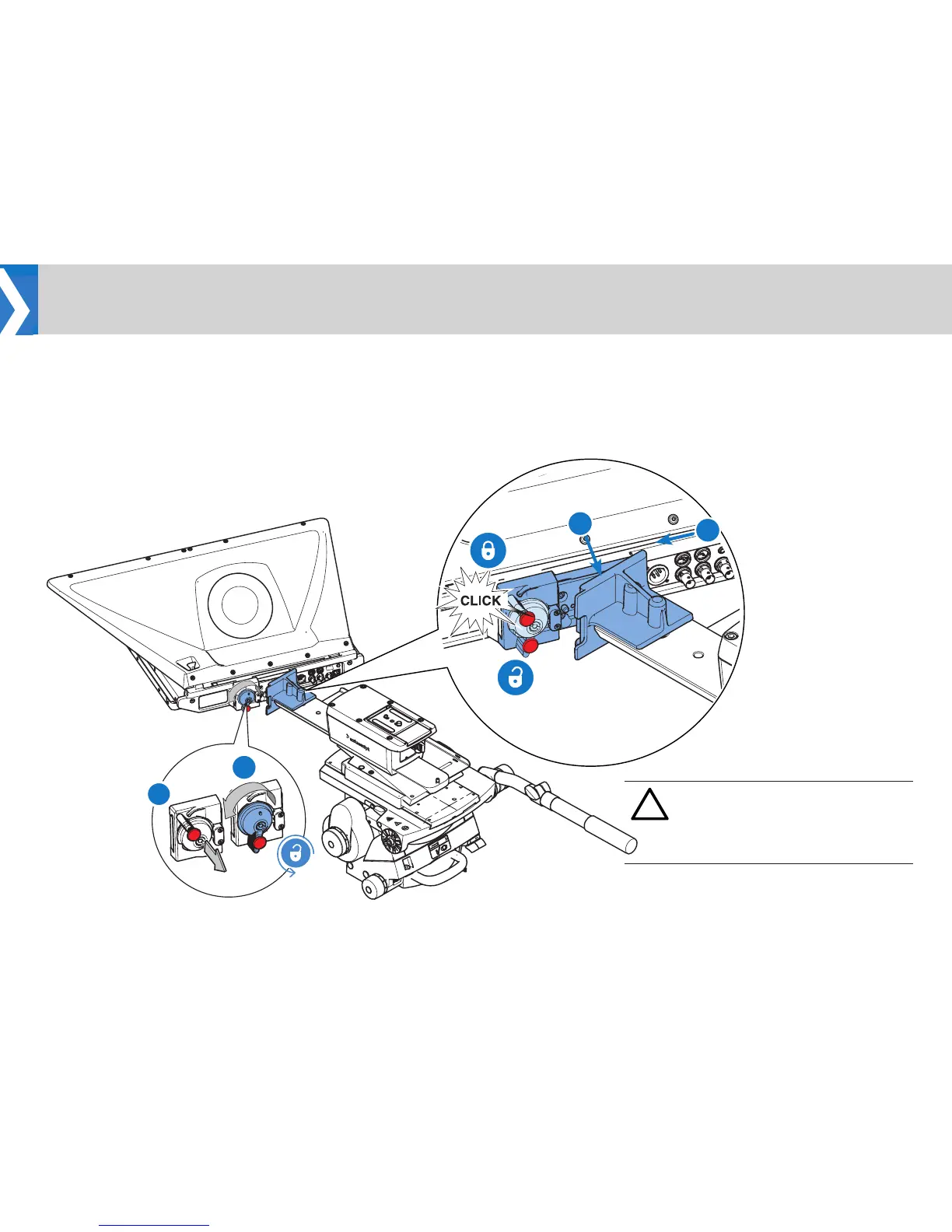

Attach Hood & Monitor Assembly Onto the Rail.
1. Pull the red safety lock pin (1) outwards.
2. Turn the locking lever (2) anticlockwise until it clicks into the
unlocked position.
3. Position the hood assembly into the right hand edge of the rail
mounting bracket (3), ensure the chamfered edge of the bracket
is engaged with the hood.
4. Rotate the hood towards the rail until the mounting bracket fully
engages and the locking lever clicks into the locked position (4).
Push up the lever to tighten.
CAUTION!
Ensure the mounting bracket has been
position before releasing the hood and
monitor assembly.
x6
1
2
3
4
To Next Page
