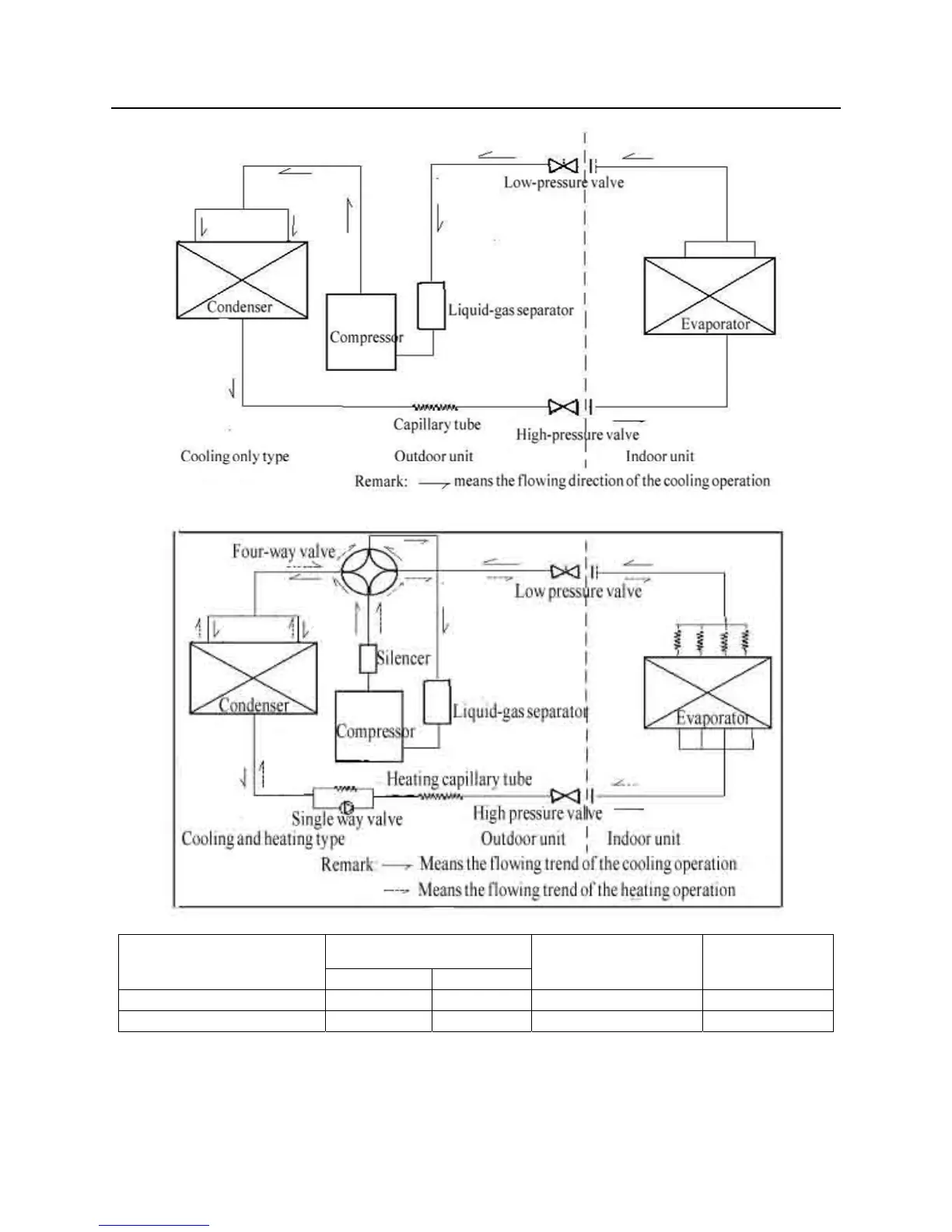

Refrigeration Cycle Diagram
Pipe size (Diameter: Ø) Max. Piping Length Max. Elevation
MODEL
(m) (m)
Liquid(inch) Gas(inch)
ASW-H09A4/SAR1DI
1/4 3/8 15 3-4
ASW-H12A4/SAR1DI
1/4 3/8 15 3-4
3
