DNM-NT/Windows 2000 4.0 Installation and Getting Started
1 Overview
Network Configuration Scenarios
December 2001
Page 22
The following figure shows an example of the network configuration over IP between a
DEFINITY system and an NMS network server.

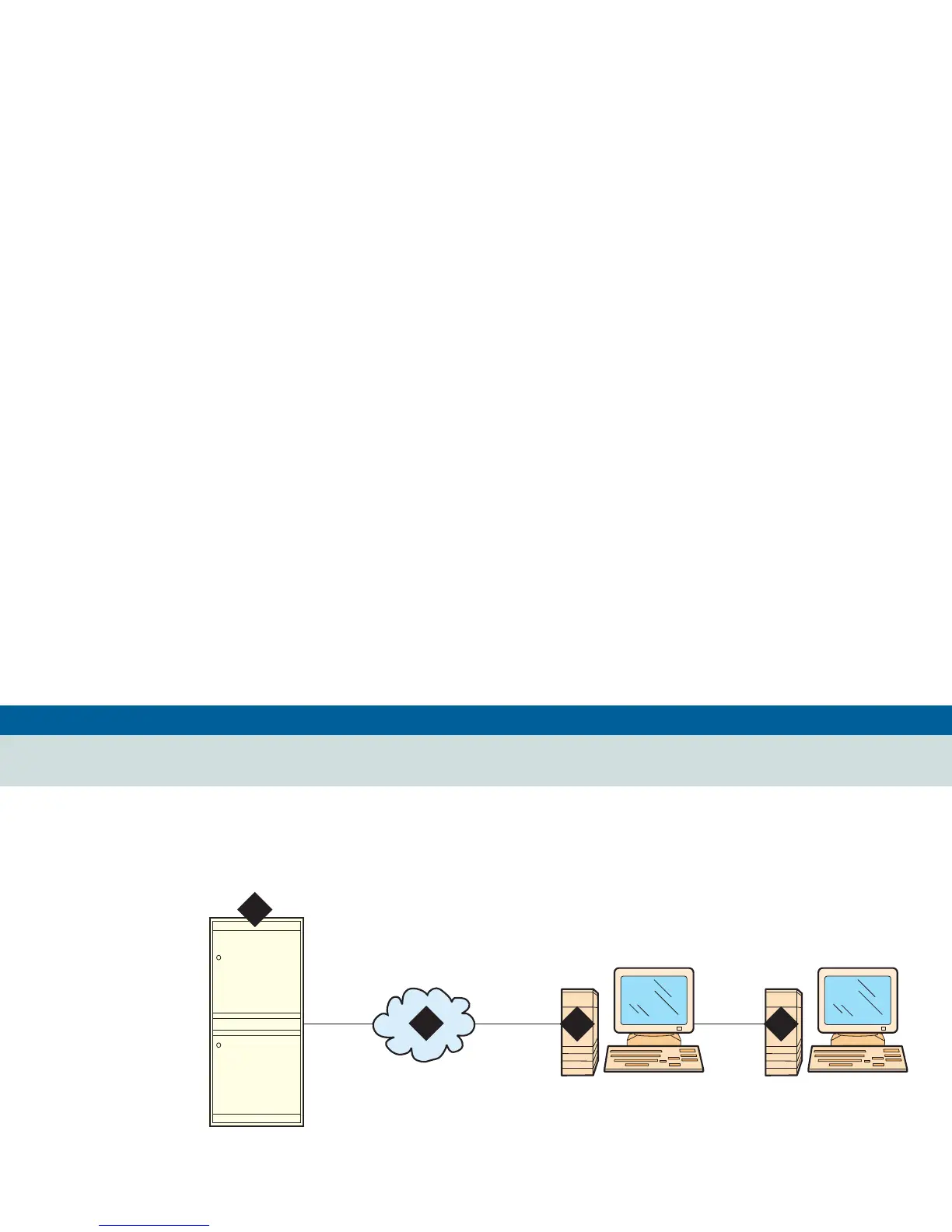

Figure 2. Network over IP configuration
1 DEFINITY system with
CLAN circuit pack
2 Internet connection (LAN
or WAN)
3 DEFINITY Proxy Agent stand-alone
computer and DEFINITY Proxy Agent
product
4 DEFINITY Network Management (DNM)
running on NT/Windows 2000
cynmpa15 LJK 080701
1
2
3 4
