DNM-NT/Windows 2000 4.0 Installation and Getting Started
1 Overview
Network Configuration Scenarios
December 2001
Page 21
Network Configuration Scenarios

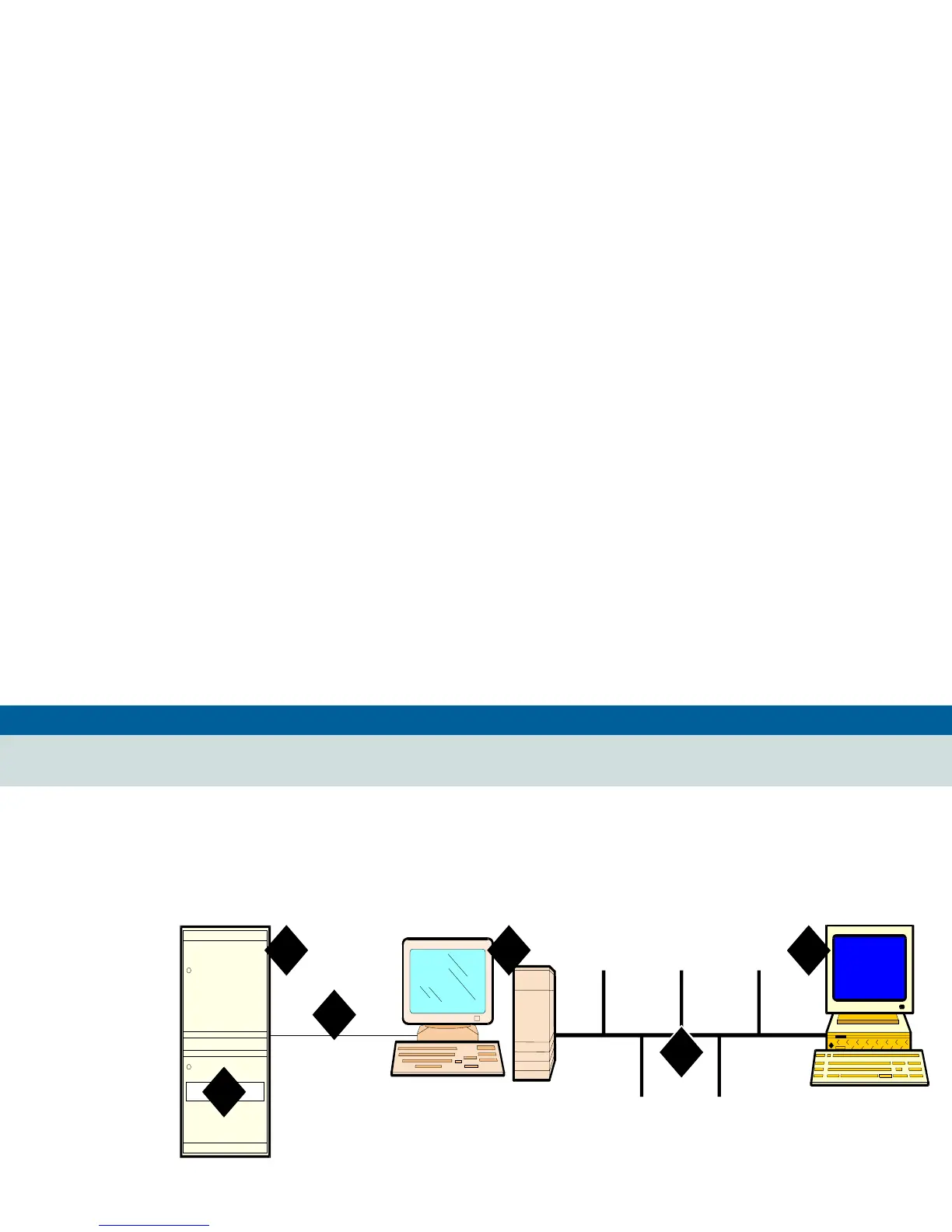

The figure below shows an example of the network configuration between a DEFINITY
system, the DPA computer, and the NT/Windows 2000 on which DNM runs.
Figure 1. Network configuration
cynmpa11 EWS 052898
1 4
2
5
3
6
1 DEFINITY system
2 Netcon channel or system access ports
on the DEFINITY system
3 Dial-up connection between
DEFINITY system and the DEFINITY
Proxy Agent modem
4 DEFINITY Proxy Agent stand-alone
computer and DEFINITY Proxy Agent
product
5 Internet TCP/IP connection (LAN or WAN)
between the DEFINITY Proxy Agent
workstation and the NT/Windows 2000
workstation
6 DEFINITY Network Management (DNM)
running on NT/Windows 2000
