Avaya Scopia XT Meeting Center | Quick Setup Guide
Avaya Scopia XT Meeting Center | Quick Setup Guide

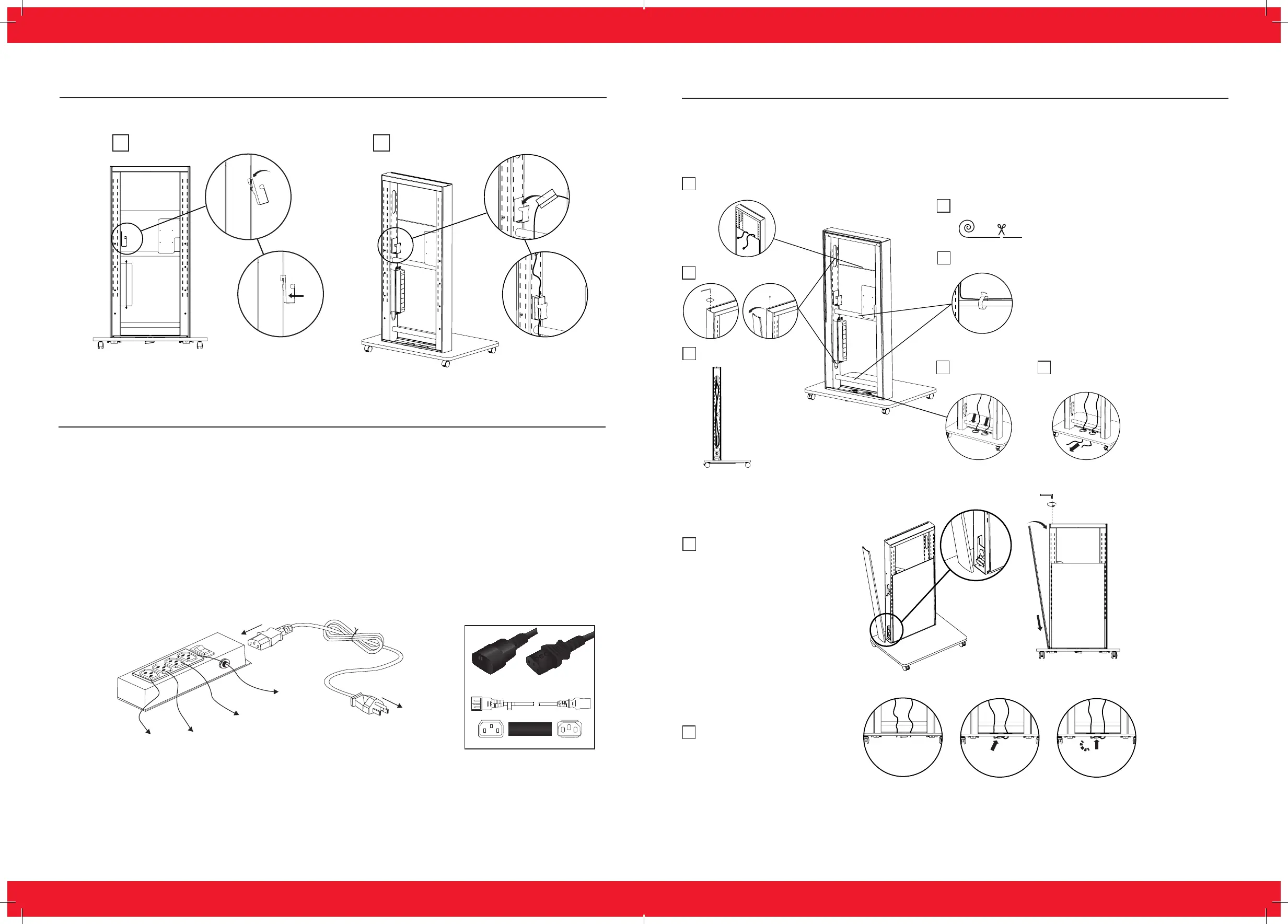

Step 16. Fix Cables to the Mount
The Avaya Scopia XT Meeting Center provides
several solutions of cable management that can be
used to suit your needs.
Feed cables out through
the front of the unit
1A
Cut velcro wraps to
required length
3A
Release channel
2A
Pass cable
through
holes in base
4A
Feed cables
through channel
Ensure channel locates
2B
2C
Use velcro wraps to
attach to crossbar
3B
Clip cables into management clip
underneath base to secure
4C
Pull cables clear
of the base
4B
click
Step 14. Attach A/C adapter clip
shown in the picture Position the A/C
adapter inside the clip
iii
Step 15. Connect power cables
Connect the device to the power strip
1. Connect the IEC320 cables (included) to
the monitor.
2. Connect the XT5000 A/C adapter to the
international power strip.
3. Connect the appropriate country power
cable provided with your XT5000 codec to
the power strip.
4. If you need a longer power cable, use the
IEC320 cable extender.
IEC320 C14 IEC320 C13
Black Cord
Spare
Monitor 2
Monitor 1
CODEC XT5000
(Relevant country power
cable)
Extender
