The following table describes the AC and DC power specifications for the VSP 7000 switch.
Parameter Input voltage Maximum power rating
AC Input 100–240 VAC, 3.7A Max, 50/60
Hz
300 W
DC Input 48 VDC, 8.0A Max 300 W
Power connections
The following sections describe the steps to connect power sources to the switch. Depending on
your type of installation, perform the AC or DC power connection procedure.
AC power connections
To connect your switch to AC power, you require an AC power cord that meets the requirements of
your local electrical code.
International power-cord specifications
Refer to the following table for power-cord plug specifications.
Voltage:
Risk of injury from electric shock
Before working on this equipment, be aware of proper safety practices and hazards involved with
electrical circuits. Use only power cords that have a grounding path. Ensure the switch is properly
grounded before connecting a power source.
Note:
VSP 7000 Series switches do not have a power switch. When you connect the AC power cord
to a suitable AC power outlet, the switch powers up immediately. Ensure that you connect the
AC power cord to the back of the switch, and then connect the cord to a power outlet. You must
use the correct power cord for the switch and power supply.

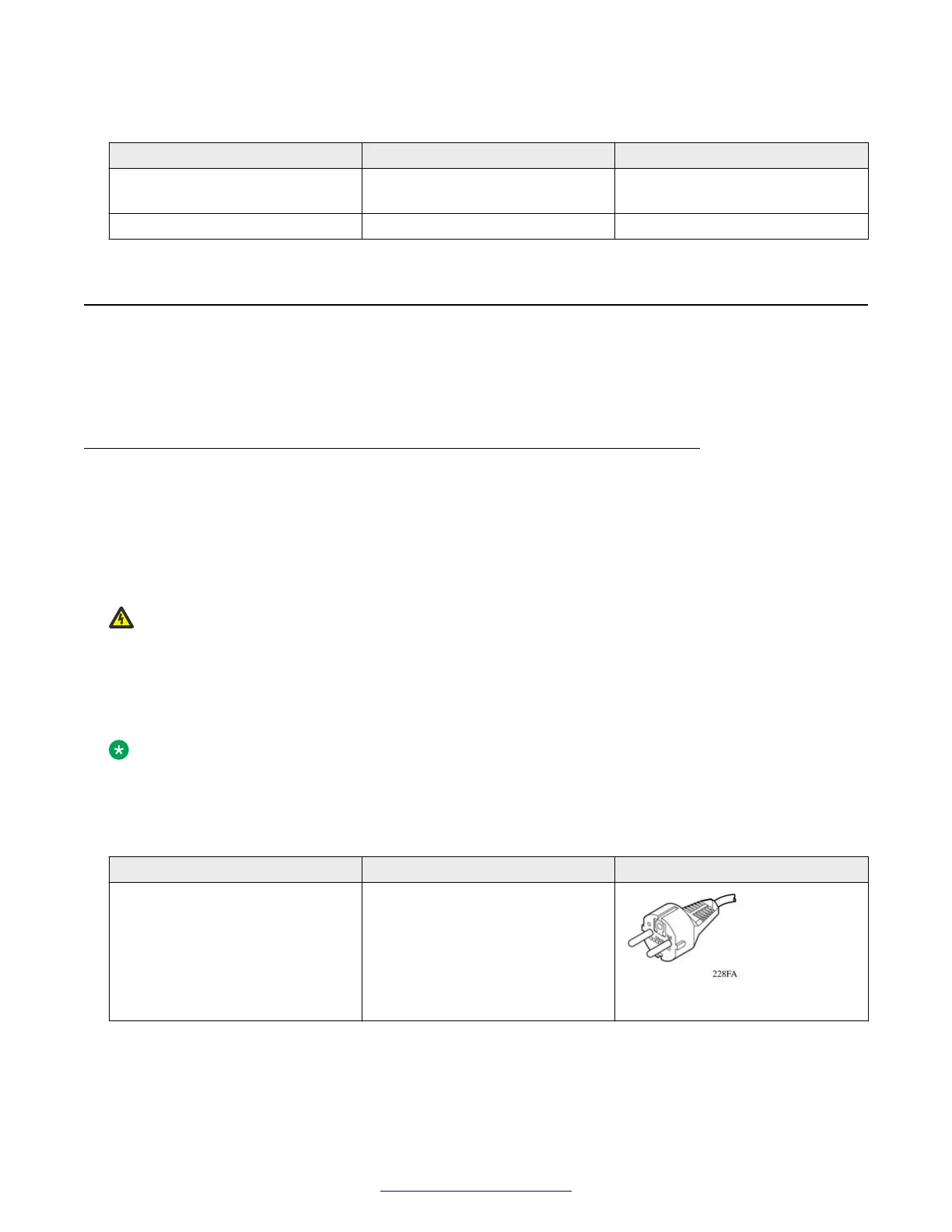

Country and plug description Specifications Typical plug
Continental Europe
• CEE7 standard VII male plug
• Harmonized cord (HAR marking
on the outside of the cord jacket
to comply with the CENELEC
Harmonized Document HD-21)
220 or 230 VAC
50 Hz
Single phase
Wire diameter 0.75 mm
2
Installation preparation
20 Installing Avaya VSP 7000 Series August 2014
