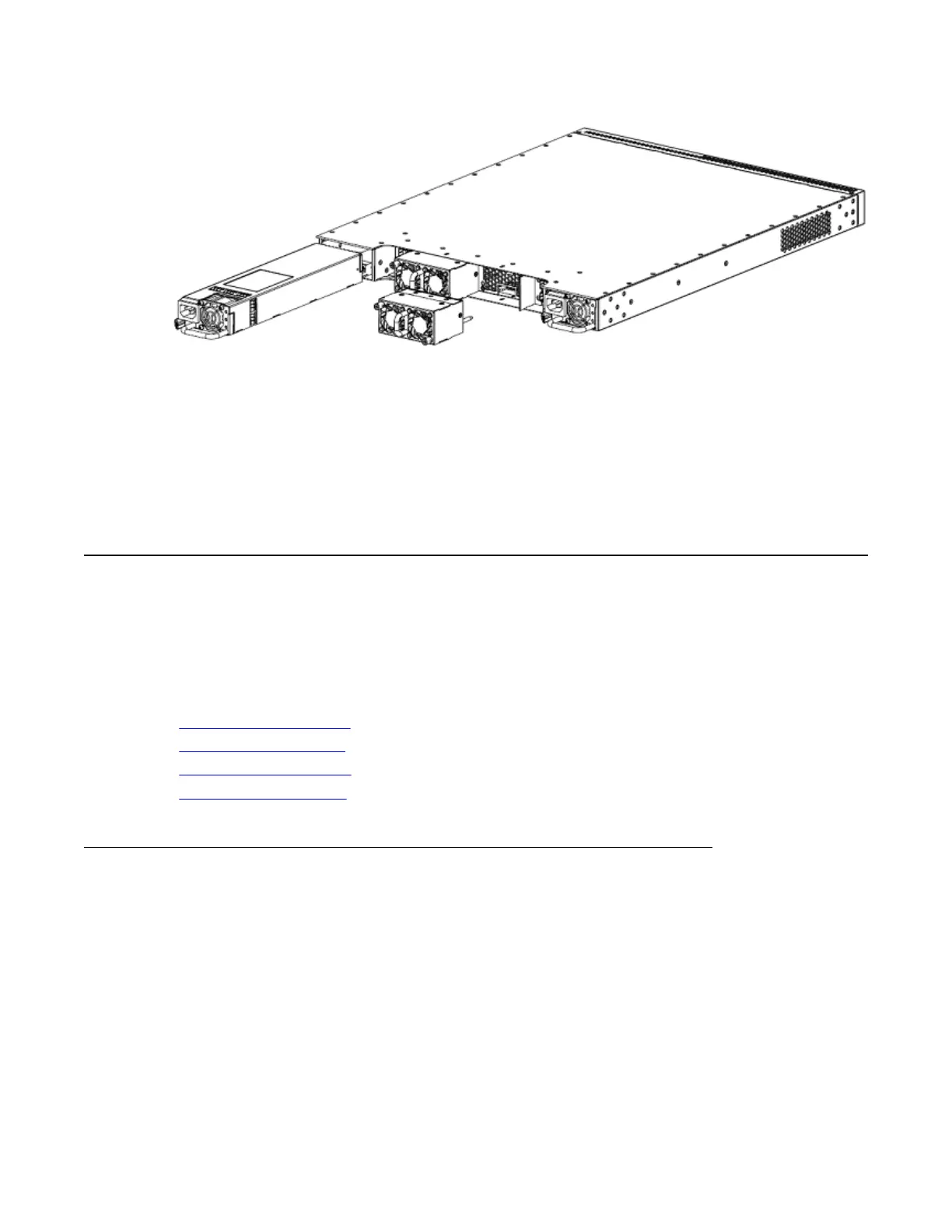

Figure 4: Installing the fan trays and power supplies
Next steps
Once you have installed the two fan trays and at least one power supply, you can install and
connect power to the switch.
Power connections
The
following sections describe the steps to connect power sources to the switch. Depending
on your type of installation, perform the AC or DC power connection procedure.
Related topics:
AC power connections on page 21
Connecting AC power on page 23
DC power connections on page 24
Connecting DC power on page 27
AC power connections
To
connect your switch to AC power you require an AC power cord that meets the requirements
of your local electrical code.
International power cord specifications
Refer to the following table for power cord plug specifications.
Voltage:
Power connections
VSP 7000 installation July 2013 21
